China Telecom Level FTTH Plastic ABS Box PLC Splitter SM 1x8 Cassette Type SC APC for sale

Telecom Level FTTH Plastic ABS Box PLC Splitter SM 1x8 Cassette Type SC APC

Price Negotiable

Price: Negotiable

MOQ: 2pcs

Delivery Time: Negotiable

Brand: DAMU

Product Description

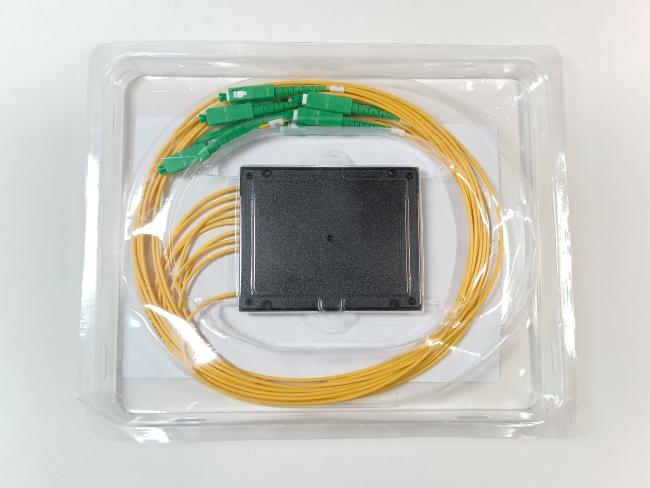

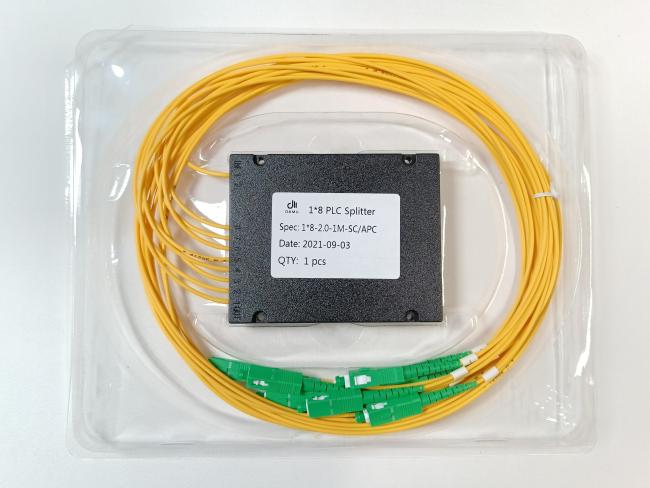

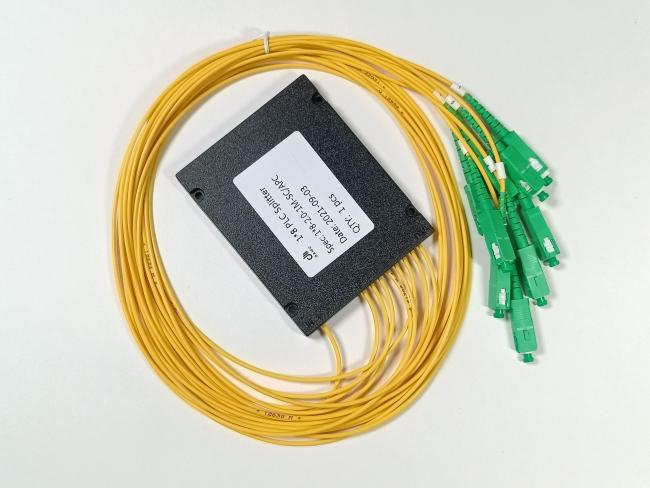

Telecom Level FTTH ABS Plastic Box Type PLC Splitter SM 1x8Cassette Type 1*8 Way SC APC Fiber Optic PLC Splitter

Product Description

SA connector steel tube gpon 1x16 1*16 mini plc splitter

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. PioneerGoods provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

Specification

Item	Parameter
Type	ABS Box Type PLC splitter
Splitting Ratio	12/14/18/116/1*32...
Operating Wavelength	1260~1650nm
Fiber Type	G657A, G652D or Customer Specified
Connector Type	SC, LC, FC, ST
Cable Diameter	0.9/2.0/3.0mm
Packing Material	Cassette Box ABS
Input/Output Length	1m/1.5m/Customized
Ferrule Polish Endface	PC/APC/UPC
Fiber Diameter	250um/0.9mm

MAIN SPECIFICATION
Parameter	1x2	1x4	1x8	1x16	1x32
Operating Wavelength (nm)	1260~1650
Fiber Type	G657A, G652D or Customer Specified
Insertion Loss (dB)(S/P Grade)	4.2/4.0	7.5/7.2	10.7/10.4	13.9/13.7	17.1/16.7
Return Loss (dB)(S/P Grade)	50/55	50/55	50/55	50/55	50/55
Wavelength Dependent Loss (dB)	0.3	0.3	0.3	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85

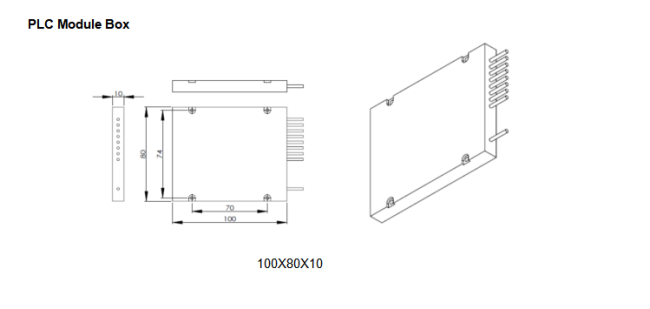

Packaging Dimension (mm)	4044	4044	4044	4044	5074
Note: The above parameter is for PLC splitter with connectors. If w/o connector, insertion loss will reduce by 0.2dB.
