Rack Mount 1x16 SC UPC Fiber Optic PLC Splitter FTTH Epon Gpon LGX Cassette Type

Price Negotiable

Price: Negotiable

MOQ: 2pcs

Delivery Time: Negotiable

Brand: DAMU

Product Description

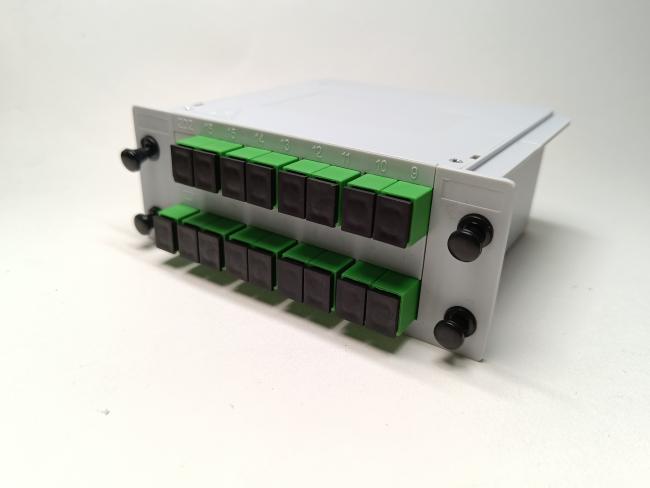

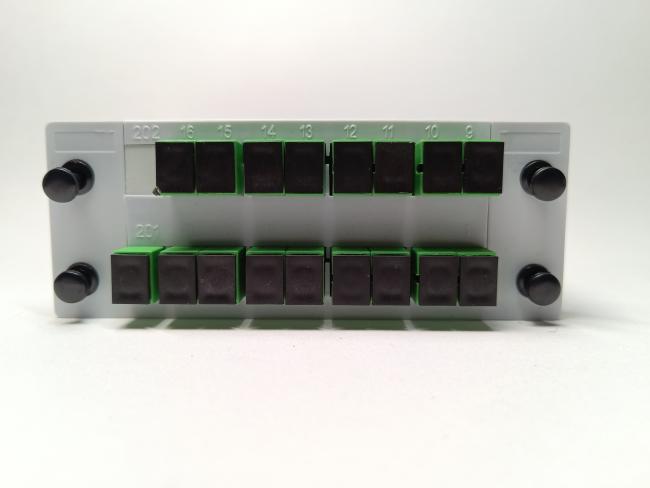

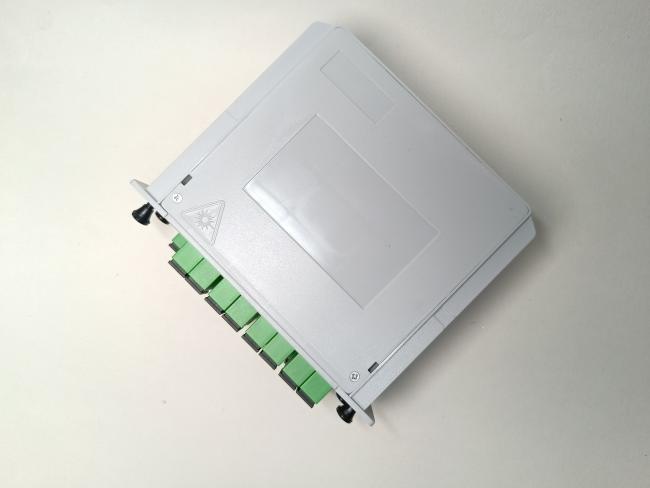

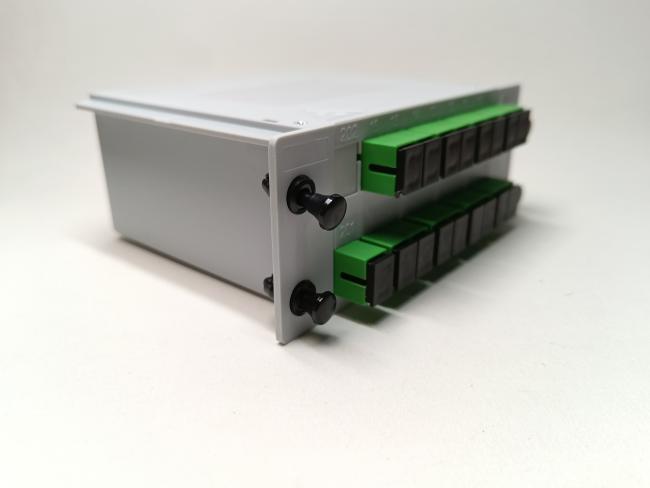

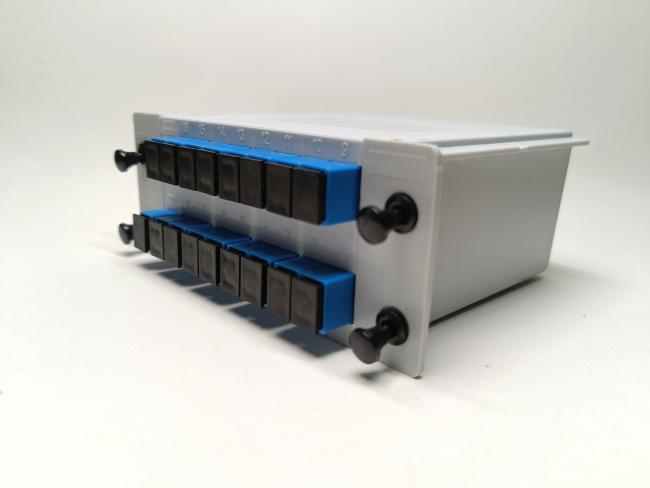

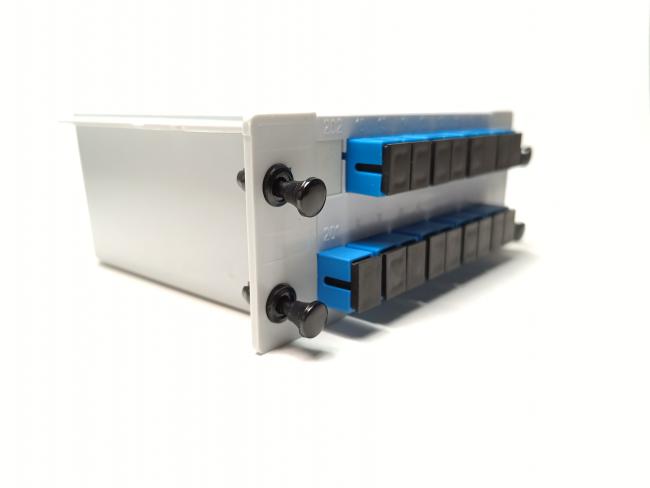

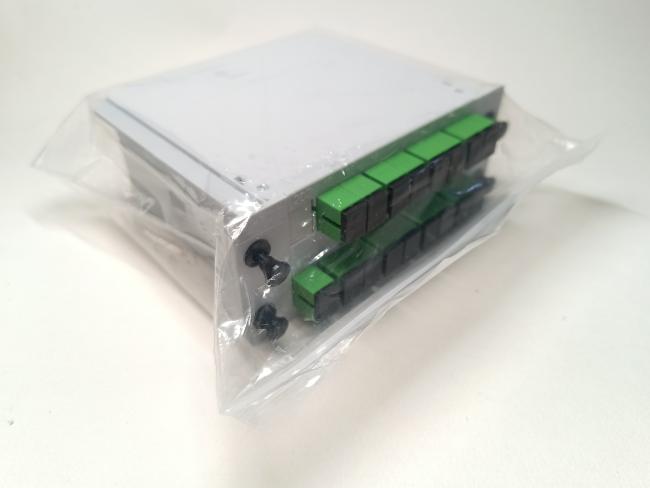

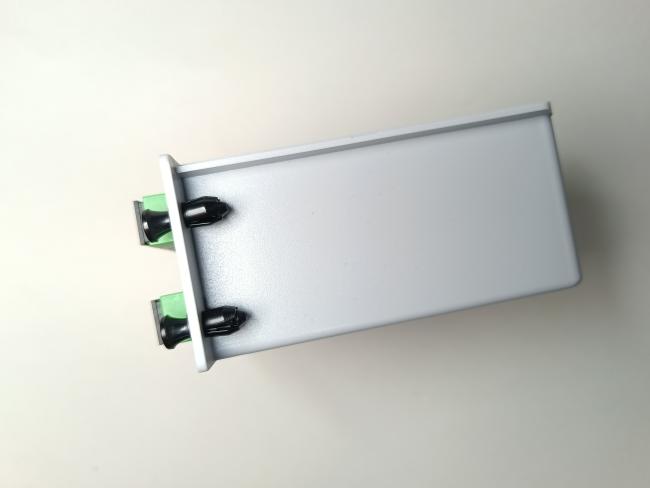

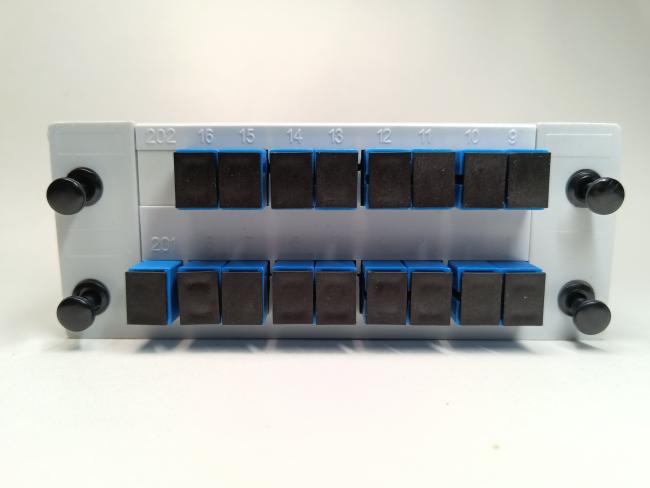

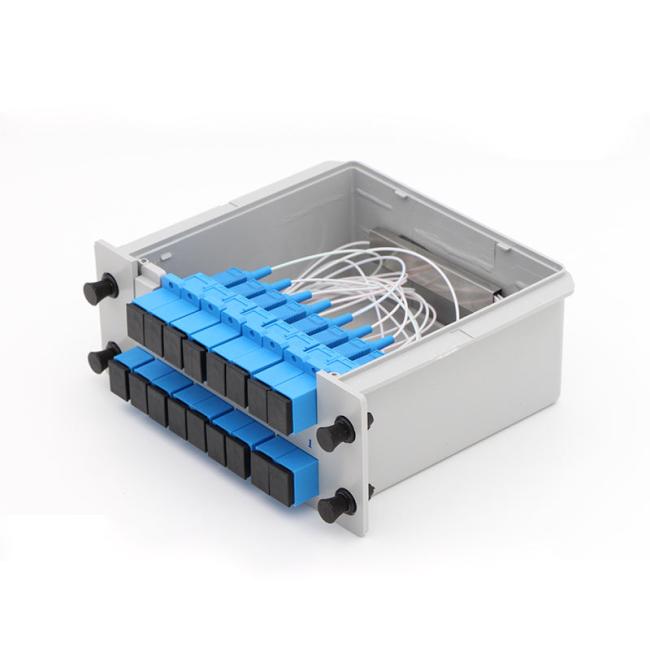

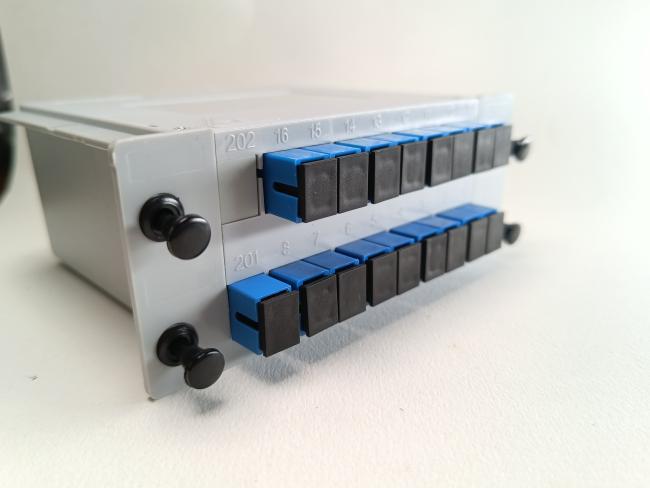

1X16 insertion type PLC splitter with SC/UPC connectors LGX fiber optic splitter

Product Description

SA connector steel tube gpon 1x16 1*16 mini plc splitter

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. PioneerGoods provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

Specification

item	value
Model Number	1x16 SCUPC
Type	FTTx Solutions
Place of Origin	China
	SHENZHEN
Brand Name	DAMU
Port	1x16
Input Pigtall Style	0.9MM
Input Connector	SC,LC,FC,ST
Output Pigtll Style	0.9MM
Fiber Length	0.5m,1m,1.5m,2m,3m,4m
Output Connctor	SC,LC,FC,ST
Application	FTTX Systems
No. of Fiber	16.
Use	FTTH

MAIN SPECIFICATION
Parameter	1x2	1x4	1x8	1x16	1x32
Operating Wavelength (nm)	1260~1650
Fiber Type	G657A, G652D or Customer Specified
Insertion Loss (dB)(S/P Grade)	4.2/4.0	7.5/7.2	10.7/10.4	13.9/13.7	17.1/16.7
Return Loss (dB)(S/P Grade)	50/55	50/55	50/55	50/55	50/55
Wavelength Dependent Loss (dB)	0.3	0.3	0.3	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85

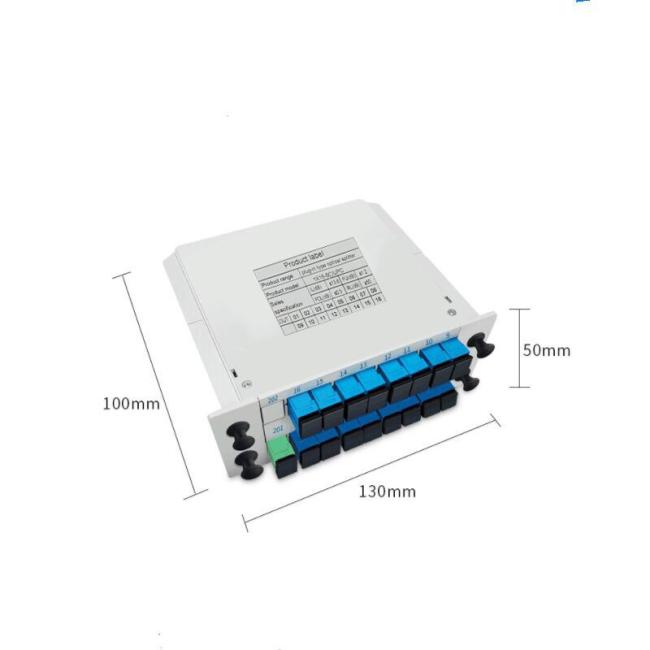

Packaging Dimension (mm)	4044	4044	4044	4044	5074
Note: The above parameter is for PLC splitter with connectors. If w/o connector, insertion loss will reduce by 0.2dB.
