Stainless Steel Candle Water Filter Automatic Self Washing 0.4 -0.8 Mpa

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 20-25 work days

Brand: Yuwei

Product Description

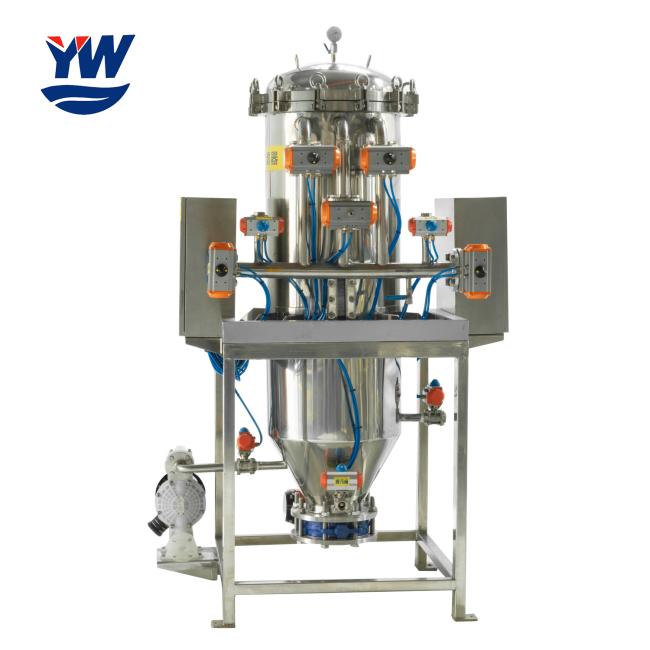

Automatic Self-Washing Stainless Steel Candle Filter

Product Name	Candle Filter
Composition	Housing body, candle cartridge, filter cloth, PLC control cabinet, spare parts etc.
Auxiliary parts	Air compressor, feeding pump, pressure sensors etc.
Material of body	304SS/316SS
Filtration rating	0.2um----2mm
Characteristics	High efficiency & energy saving, closing & high precision, easy maintenance, safety & reliability and high degree of automation.
Application	It can be widely used in the solid-liquid separation in the petroleum, plastic, electroplating, chemical, ceramic, pharmaceutical,sugar and other industries.

Model	Cartridge QTY	Cartridge Size(mm)	Filtering Area(㎡)	Capacity(t/h)	Housing Volume(L)	Inlet(DN)	Cake Discharging Outlet (DN)	Housing Diameter(mm)	Total Height(mm)	Height of Housing(mm)	Height of Waste Discharging Oulet(mm)	Dimension(mm)
YWZS-1	7	90*500	1	2.2	140	25	150	456*3	1902	1448	500	φ1000
YWZS-1.5	10	90*500	1.5	3.3	180	25	200	508*4	1928	1474	500	φ1000
YWZS-2	7	90*1000	2	4.4	220	32	150	456*3	2402	1948	500	φ1200
YWZS-3	10	90*1000	3	6.6	280	40	200	508*4	2428	1974	500	φ1200
YWZS-4	14	90*1000	4	8.8	400	40	200	608*4	2502	1868	500	φ1300
YWZS-6	19	90*1000	6	13.2	560	50	250	708*5	2578	1944	500	φ1400
YWZS-8	24	90*1000	8	18	740	65	250	808*5	2644	2010	500	φ1500
YWZS-12	40	90*1000	12	26	1200	65	300	1010*5	2854	2120	600	1300*1440
YWZS-18	64	90*1000	18	40	1800	80	400	1212*6	2904	2170	600	1440*1540
YWZS-30	106	90*1000	30	66	3000	100	500	1616*8	3440	2840	600	1800*1940
YWZS-40	140	90*1000	40	88	3815	150	500	1820*10	3560	2960	600	2000*2140
YWZS-60	190	90*1000	60	132	5700	150	500	2220*10	3700	3100	600	2440*2540

• Fully closed filtration. No leakage. No any environmental pollution.
• The entire process can be fully automated.
• The filter cake can be washed and dried to obtain maximum economic benefit.
• The filter element is designed to be the duplex structure.
• It has a wide applications and better filtering effects.
• It is the gas blowback slagging. The slag can be discharged quickly and cleanly.
• It is suitable for a variety of sticky materials.
