Scrap Auto Tyre Pyrolysis Equipment Intermittent Horizontal Rotating

Description of Huayin tyre pyrolysis equipment

Tyre Pyrolysis Equipment is one of the most worthy of investment projects. It not only eliminate many waste tires,rubber around us ,but also can bring people profit - fuel oil and carbon black. It is a win-win situation. The tyre pyrolysis oil has a good sales market as it can be used as heating material and sell it to cement factories, glass factories, ceramic factories, electric power factories, steel making factories, boiler factories, etc. The by products carbon black can be made to pellet or briquette as heating material.

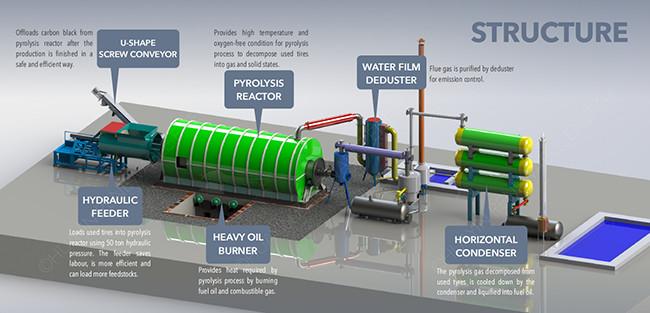

Tyre Pyrolysis Plant Work Process

Feeding Of Used Tires (2.5 Hours) :Put the raw material into the pyrolysis reactor . Huayin offers auto feeder machine to help feeding , saving time and labour. As long as the size of the tire is not larger than 1.4 meters, the tire can be directly put into the reactor. If they are larger OTR tires, we supply tire cutting machine

Starts Heating (2 Hours) :When feeding is finished, closes the feeding port then ignites the heating system. The internal temperature goes up slowly in the first 2 hours.

Oil Production (10 Hours): Used tires break down into gas state and solid state under pyrolysis reaction. The gas state enters condensing system, gets liquified and becomes liquid fuel. The oil production process lasts 10 hours. The solid state that is carbon black and steel wire stays inside pyrolysis reactor waiting for discharging.

Cooling Down (3 Hours):When oil production is finished, leaves the machine to cool down for 3 hours before discharging.

Discharging Carbon Black and steel wire ( 3 Hours): Discharges carbon black from reactor by U-shape conveyor. It takes around 2.5 hours. Discharges steel wire mass from reactor by winch. It takes around 30 minutes.

Parameter of pyrolysis equipment

Standing features of Huayin Tyre Pyrolysis Equipment for sale

1. High efficiency. The feeding port of the pyrolysis reactor is 1400mm, so the waste material doesn’t need pretreatment, it can be put into the pyrolysis reactor directly with the auto feeder machine.

2. High stability. The rollers are engineered underfeeding port and oil outlet port which are external from the heating area to bring perfect rotating balance and longer service life.

3. Energy saving: Non-condensable gas will go back to the heating system for second burning as heating material, saving your heating fuel.

4. High oil yield: Larger condensation area to ensure sufficient condensation of oil gas into liquid oil.

5. Eco-friendly: The stainless steel deduster is filled with ceramic filters inside, which brings it strong dust adsorption capacity and a good dedusting effect.

6. High safety level: Equipped with Alarm, auto pressure releasing device, anti backfire device, vacuum pump to ensure the machine working smoothly.
