Automatic Plastic And Tyre Pyrolysis Plant Batch type
Automatic Plastic And Tyre Pyrolysis Plant Business Plan In South Africa
Description of Huayin tyre pyrolysis plant
The pyrolysis machine can process both tyres and plastic , the machine capacity is from 1 ton to 15 ton per batch . We provide turnkey project and the best service for each customer of us . if you are interested in the pyrolysis plant project , please contact us , we will help you do the feasbility report and help you know more about the plant.
Output product and usage
FUEL OIL
The production rate of fuel oil is 40% in average. It's also known as tyre oil, pyrolysis oil, heating oil or furnace oil.The application is as heating fuel for industries such as power plant, cement plant, steel plant, metallurgical plant, glass plant etc.
CARBON BLACK
It produces approximately 35% of carbon black from used tyres. Carbon black is raw material for rubber&plastic industry or used as heating fuel.
STEEL WIRE
It's easy to sell to scrap metal dealers.
COMBUSTIBLE GAS
Combustible gas is routed to the heating system as a fuel supply. It saves the consumption of fuel oi
Parameter of Tyre recycling machine to oil
| Model | HY-05 | HY-08 | HY-10 | HY-15 | HY-30 |
| Capacity | 5 t/d | 8 t/d | 10 t/d | 15 t/d | 30-35 t/d |
| Working Type | Batch | Batch | Batch | Batch | Continuous |
| Reactor size(m) | D2.2*L5.5 | D2.6*L6.6 | D2.8*L6.6 | D2.8*L8.1 | D1.2*L24 |
| Reactor material | Q245R | Q245R | Q245R | Q245R | 310S stainless steel |
| Power | 29.4KW | 29.4KW | 32KW | 34KW | 100KW |
| Heating Fuel | Pyrolysis oil /coal/ wood/natural gas | ||||
| Burners | 3*300,000 kcal | 3*300,000 kcal | 3*300,000 kcal | 4*300,000 kcal | 12*30000kcal |
| Working pressure | Normal | Normal | Normal | Normal | Normal |
| Landing Area | 200m2 | 250m2 | 300m2 | 350m2 | 700m2 |
| Number of Containers | 1*40FR+1*40HQ | 1*40FR+2*40HQ | 1*40FR+2*40HQ | 1*40FR+2*40HQ | bulk cargo |
Profit analysis report of the waste tyre pyrolysis machine
|
Profit Analysis of HY-10T Pyrolysis Plant |
|||
|
Raw material |
Tyres |
10Ton /Day |
$45/Ton |
|
Fuel |
Pyrolysis oil |
200kg/Day |
|
|
Electricity |
50KW/H |
18 Hours |
$0.14/KWH |
|
Labour |
4 persons |
1 day |
$50/person/day |
|
Pyrolysis oil |
45% oil yield |
4.5Ton |
$410/Ton |
|
Carbon black |
30% yield |
3Ton |
$50/Ton |
|
Steel wire |
15% yield |
1.5Ton |
$150/Ton |
|
Daily Input |
|
|
|
|
Items |
Consumption |
Unit Price |
Total |
|
Tyre |
10Ton |
$50 |
$500 |
|
Pyrolysis oil |
200KG |
$0 |
$0 |
|
Electricity |
300KW |
$0.14 |
$42 |
|
Labour |
4 persons |
$50 |
$200 |
|
Total |
|
|
$742 |
|
Daily output |
|
|
|
|
Items |
Quantities |
Unit price |
Total |
|
Pyrolysis oil |
4.5Ton |
$410 |
$1845 |
|
Carbon black |
3Ton |
$50 |
$150 |
|
Steel Wire |
1.5Ton |
$150/Ton |
$225 |
|
Total |
|
|
$2220 |
|
Daily Net profits |
$1478 |
|
|
|
Month Profits (25 working day) |
$36950 |
|
|
|
Annual profit (10 months) |
$369500 |
|
|
|
|
Standing features of Huayin Tyre Pyrolysis machine for sale
1. The pyrolysis reactor is manufactured with good material of Q245R boiler plate which is high pressure and temperature resistance , 16mm thickness , it is rotating when production ,thus ensures the raw material can be heated evenly and faster. The thickened insulation layer minimizes heat loss.
2. Carbon black is conveyed in a sealed condition to achieve pollution-free and the slag is discharged out automatically through the screw conveyor,
3. Hydraulic feeder can load more feedstocks since it can compact feedstocks while feeding. Less feeding time and labour required.
4. Larger condensation area maximizes condensation effect

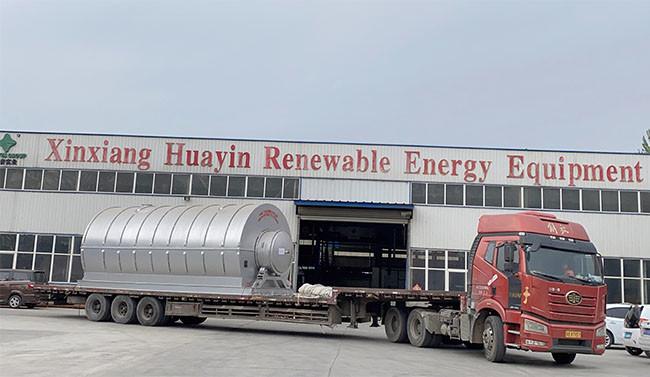

Packing and shipping
