Environmentally Friendly CE Diesel From Plastic Waste
Large Profit Plastic Pyrolysis To Diesel Plastic Waste Pyrolysis Machine With CE
Product description

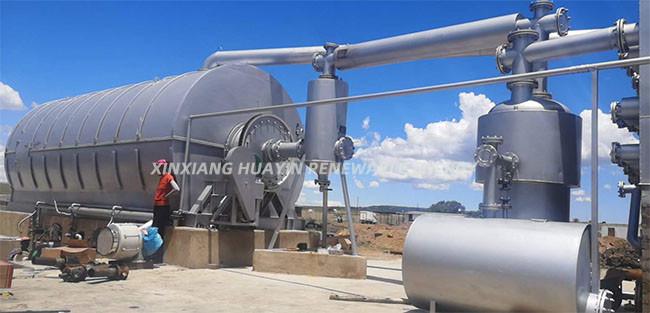

The function of the waste plastic pyrolysis plant is to convert various kinds of waste plastic like PP, PE, PS, ABS, PMMA, etc, to fuel oil, carbon black, and syngas. Due to the advantages of environmentally friendly, energy-saving, high safety level, and large profit of this equipment, it is widely used for the treatment of waste plastic products.
Specification
| Model | Reactor size | Capacity | Power | Landing area(m) |
| HY-10kg | HY1880*800 | 10kg/batch | 250W | 1*4 |
| HY-1T | HY1500*3000 | 1 T/batch | 13.5KW | 8*20 |
| HY-5T | HY2200*5500 | 5 T/batch | 29.4KW | 10*35 |
| HY-7T | HY2200*7500 | 7 T/batch | 29.4KW | 10*35 |
| HY-8T | HY2600*6600 | 8 T/batch | 29.4KW | 12*35 |
| HY-9T | HY2800*6000 | 9 T/batch | 29.4KW | 12*35 |
| HY-10T | HY2800*6600 | 10 T/batch | 32KW | 15*35 |
| HY-15T | HY2800*8000 | 15 T/batch | 34KW | 15*35 |
Output product and application
| Output Products | Application |
|
Fuel Oil (50%-75%) |
1. Used as the heating material and sell it to cement factories, glass factories, ceramic factories, electric power factories, steel making factories, boiler factories, etc. 2. Used in heavy oil generator for electricity generation. 3. Deep process it into diesel oil with our distillation plant, color and smell removal system, the final oil can be used in diesel engines like trucks, tractors, etc. |
| Carbon Black (30%-35%) | Slag for construction. |
| Flammable Gas (8%-10%) | 1. Recycled into the furnace to heat reactor instead of coal/wood/oil/natural gas. 2. Storage the extra gas to restart the next batch. |
Our advantage
1) Industrial batch type, different capacity from 1ton to 15ton per batch.
2) low consumption, high oil yield, and quality, continuous and steady operation of production.
3) Horizontal rotating reactor enables the waste material equally heated and completely pyrolyzed to achieve high production efficiency.
4) Anti-coking device, alarm, auto pressure releasing device, anti backfire device, vacuum pump to ensure operation safe and reliable.
5) Combustible Gas recycling utilization technology, the combustible gas can be used for heating, remaining heat can be fully utilized, realized self-supply for pyrolysis process, dramatically minimizing running cost.
6) Adopt 3 layers of ceramic packing dedusting device and water spray, finally, no black smoke discharged out. SGS emission report provided.
7) Support PLC system to achieve high automation production and ensure operation under safety conditions.
8) Low requirement for manpower and clean production.
About us

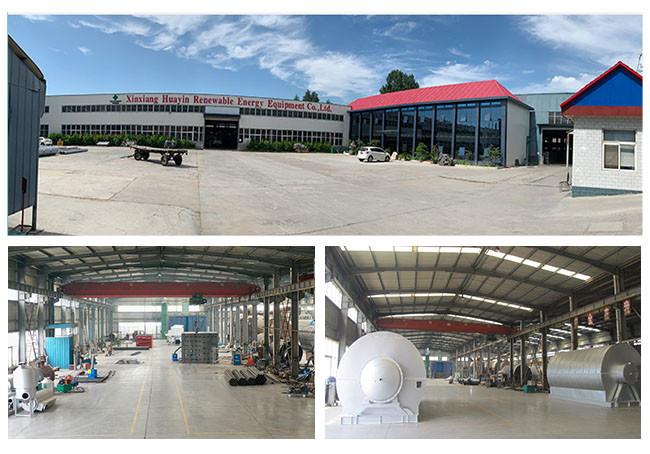

Xinxiang Huayin Renewable Energy Equipment Co., Ltd is located in Xinxiang City, Henan Province, and is specialized in manufacturing waste tires/plastics to fuel oil pyrolysis machines and waste oil for diesel distillation machines since 1993. We have more than 2000 square meters of running demo plants for customers' visitation and learning. our plants have been exported to over 80 countries including Romania, Hungary, Turkey, Slovakia, Ecuador, Guatemala, Haiti, Mexico, Peru, Canada, USA, Jordan, UAE, Lebanon, Kuwait, Italy, Chile, Poland, England, Thailand, Greece, Mexico, Benin, Indonesia, India, Singapore, Russia, etc.
