Batch Type Pyrolysis Tyre Plastic To Petrol Making Machine Huayin For Rubber And Tires
Huayin Pyrolysis Tyre Oil Unit Waste Tyre Petrol Oil Pyrolysis Plant For Rubber And Tires
Product description
Nowadays, with human exploitation and environmental degradation, natural energy especially oil energy is becoming less and less, on the contrary, municipal solid wastes are becoming more and more. Huayin waste tyre pyrolysis oil unit can convert the normal daily wastes like plastic bags, and rubber scraps into fuel oil, which can be used as heating fuel in many industrial fields.
Specification
| Item | Content | |
| Raw materials | Waste tyre/rubber | |
| Output | 45% fuel oil, 30% carbon black, 10% steel wire, 10%-15% syngas | |
| Model | Reactor size | Capacity |
| HY1500*3000 | 1 T/batch | |
| HY2200*5500 | 5 T/batch | |
| HY2200*7500 | 7 T/batch | |
| HY2600*6600 | 8 T/batch | |
| HY2800*6000 | 9 T/batch | |
| HY2800*6600 | 10 T/batch | |
| HY2800*8000 | 15 T/batch | |
| Remarks | Support customization | |
| Reactor material and thickness |
Q345R/Q245R/310S (Boiler plate/stainless steel) 16mm/18mm |
|
| Land area | 300-400㎡ (L30-40m*W10m) | |
| Number of workers | 3-4 | |
| Oil density and calorific value | 0.89g/cm³&44.30KJ/KG | |
| Processing time and power | 10-24 hours. Averagely 15KW/h | |
| Certification | CE, ISO, BV, SUV, SGS Oil Report, Emission Report, 11 patents | |
Main features
1. High efficiency. The feeding port of the pyrolysis reactor is 1400mm, so the waste material doesn’t need pretreatment, it can be put into the pyrolysis reactor directly with the auto feeder machine.
2. High stability. The rollers are engineered underfeeding port and oil outlet port which are external from the heating area to bring perfect rotating balance and longer service life.
3. Energy saving: Non-condensable gas will go back to the heating system for second burning as heating material, saving your heating fuel.
4. High oil yield: Larger condensation area to ensure sufficient condensation of oil gas into liquid oil.
5. Eco-friendly: The stainless steel deduster is filled with ceramic filters inside, which brings it strong dust adsorption capacity and a good dedusting effect.
6. High safety level: Equipped with Alarm, auto pressure releasing device, anti backfire device, vacuum pump to ensure the machine working smoothly.
Output product and usage
| Output Products | Application |
| Fuel Oil (40%-55%) | 1. Used as the heating material and sell it to cement factories, glass factories, ceramic factories, electric power factories, steel making factories, boiler factories, etc. 2. Used in heavy oil generator for electricity generation. 3. Deep process it into diesel oil with our distillation plant, color, and smell removal system, the final oil can be used in trucks, tractors, etc. |
| Carbon Black (30%-35%) | 1. Make it to pellet or briquette as heating material. |
| Steel Wire (10%-15%) | Sell to iron and steel factory directly. |
| Flammable Gas (8%-10%) |
1. Recycled into the furnace to heat reactor instead of heating material. 2. Storage the excess gas to restart the next batch. |

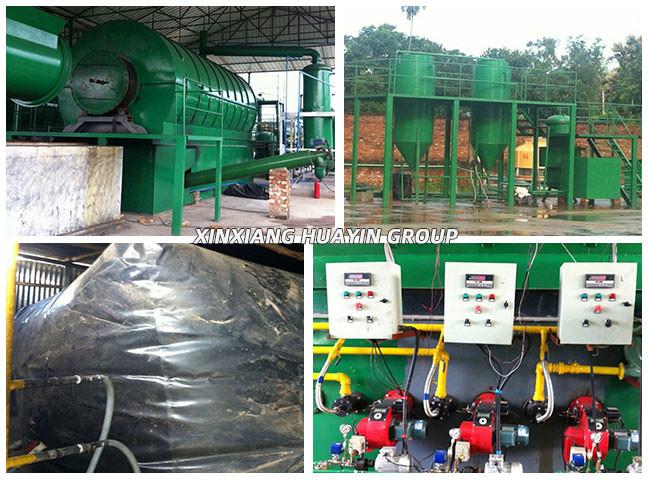

Installation cases
