Scrap Tire Recycling Small Pyrolysis Plant 10 Ton To Energy And Gas
Pyrolysis To Energy And Gas 10ton Scrap Tire Recycling Equipment Pyrolysis Plant
Product description
1. The waste plastic pyrolysis plant function is converting waste plastic into fuel oil, carbon black, and syngas.
2. Capacity from 1 ton-15ton capacity per batch. Support customization.
3. Fast installation design & Bulk type design &Container design
4. Environmental friendly, no black smoke and waste water discharged out.
5. Large condensing area ensures a high oil yield.
6. Low operating cost.
7. High Automation. Auto feeding systems and discharging carbon black devices make this recycling machinery much easier to operate.
8. Certification: CE, ISO, SGS, BV.
9. Material of reactor: Q345R/Q245R/310S+Boiler plate/Stainless steel, thickness 16mm/18mm.
Output product and usage
| Output Products | Application |
| Fuel Oil (40%-55%) | 1. Used as the heating material and sell it to cement factories, glass factories, ceramic factories, electric power factories, steel making factories, boiler factories, etc. 2. Used in heavy oil generator for electricity generation. 3. Deep process it into diesel oil with our distillation plant, color, and smell removal system, the final oil can be used in trucks, tractors, etc. |
| Carbon Black (30%-35%) | 1. Make it to pellet or briquette as heating material. |
| Steel Wire (10%-15%) | Sell to iron and steel factory directly. |
| Flammable Gas (8%-10%) |
1. Recycled into the furnace to heat reactor instead of heating material. 2. Storage the excess gas to restart the next batch. |
Main features
1) Industrial batch type, different capacity from 1ton to 15ton per batch.
2) low consumption, high oil yield, and quality, continuous and steady operation of production.
3) Horizontal rotating reactor enables the waste material equally heated and completely pyrolyzed to achieve high production efficiency.
4) Anti-coking device, alarm, auto pressure releasing device, anti backfire device, vacuum pump to ensure operation safe and reliable.
5) Combustible Gas recycling utilization technology, the combustible gas can be used for heating, remaining heat can be fully utilized, realized self-supply for pyrolysis process, dramatically minimizing running cost.
6) Adopt 3 layers of ceramic packing dedusting device and water spray, finally, no black smoke discharged out. SGS emission report provided.
7) Support PLC system to achieve high automation production and ensure operation under safety conditions.
8) Low requirement for manpower and clean production.
Specification
| Item | Content | |

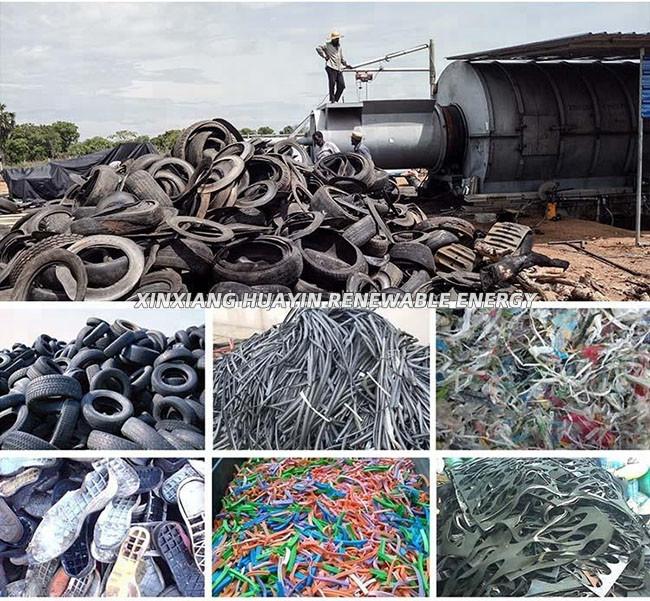

| Raw materials | Waste tyre/rubber | |
| Output | 45% fuel oil, 30% carbon black, 10% steel wire, 10%-15% syngas | |
| Model | Reactor size | Capacity |
| HY1500*3000 | 1 T/batch | |
| HY2200*5500 | 5 T/batch | |
| HY2200*7500 | 7 T/batch | |
| HY2600*6600 | 8 T/batch | |
| HY2800*6000 | 9 T/batch | |
| HY2800*6600 | 10 T/batch | |
| HY2800*8000 | 15 T/batch | |
| Remarks | Support customization | |
| Reactor material and thickness |
Q345R/Q245R/310S (Boiler plate/stainless steel) 16mm/18mm |
|
| Land area | 300-400㎡ (L30-40m*W10m) | |
| Number of workers | 3-4 | |
| Oil density and calorific value | 0.89g/cm³&44.30KJ/KG | |
| Processing time and power | 10-24 hours. Averagely 15KW/h | |
| Certification | CE, ISO, BV, SUV, SGS Oil Report, Emission Report, 11 patents | |
Our service
1. One-stop solution. We have more than 20 years of rich experience in manufacturing waste pyrolysis plants. We pay more attention to customer experience and customer satisfaction. As long as you need it, we are able to provide you with a better quality complete production line.
2. We have our own factory and trading company, no middlemen, more cost-effective, and it is more convenient for you to replace related parts, as long as there is a problem, we can provide a solution immediately, product quality is guaranteed.
3. We promise that our plants are efficient and have a long service life to ensure that you can quickly produce in batches.
4. Delivery time is 15-25 days.
5. We can send engineers on-site to guide installation and train your workers.
6. One-year warranty, lifelong maintenance of the equipment, providing professional use guidance services.
