Convert Plastic Pyrolysis Tyre Recycling Plant CE ISO
Convert Plastic Oil To Diesel Fuel Pyrolysis Plant Used Tyres Pyrolysis Machine
Product description
The function of the waste tire/plastic pyrolysis plant is to convert various kinds of waste tires like car tyres , motorcycle tires, bicycle tires, and OTR tires , plastic scrap to fuel oil, carbon black, steel wire, and syngas. Due to the advantages of environmentally friendly, energy-saving, high safety level, and large profit of this equipment, it is widely used for the treatment of waste rubber and plastic products.
Specification
| Model | HY-05 | HY-08 | HY-10 | HY-15 |
| Raw material | Waste rubbers/tyres/plastic | |||
| Output product | 45% fuel oil, 30% carbon black, 10% steel wire, 10%-15% syngas | |||
| Daily Handling capacity | 5 tons | 8 tons | 10 tons | 12 tons |
| Machine dimension(mm) | D2200*L5500 | D2600*L6600 | D2800*L6600 | D2800*L8000 |
| Landing Area | 200m2 | 250m2 | 300m2 | 350m2 |
| Working pressure | Normal pressure | |||
| Main engine rotating speed | 0.4R /min | |||
| Power | 15KWH | |||
| Cooling Mode | Circle Water | |||
| Heating Mode | Direct | |||
| Oil Yield | 40%-50% | |||
| Noise dB (A) | <=85 | |||
| Working Mode | Batch type | |||

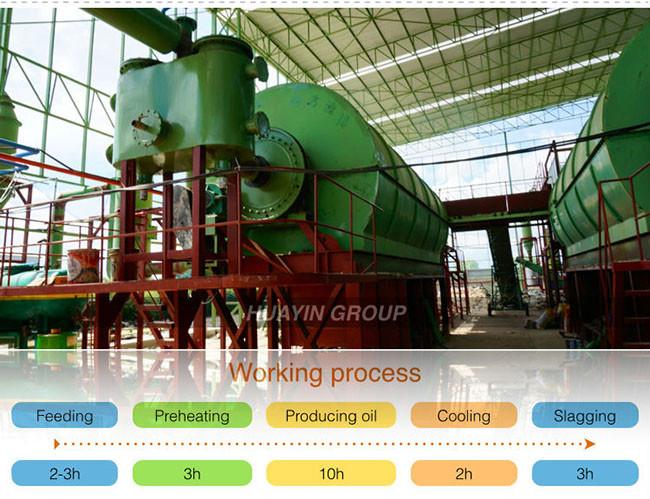

Operation Process
1: Feeding. Feed tires into reactor manually or with auto feeder;
2: Preheating. Waste tyres will be melted under high temperatures and oil gas comes out.
3: Oil-producing. Oil gas goes through the cooling system and is cooled down into liquid fuel oil; Some oil gas that can not be turned into liquid oil will go back to the heating furnace for second burning.
4: Cooling. After the oil processing is finished, leave the plant for cooling.
5: Carbon black discharging.
6: Pulling out steel wire.
Main features
| Our advantage | |
| Reactor material | Adopt Q245R/Q235R high pressure and temperature resistance steel plate to ensure longer service life. For some special raw materials, we use a special steel plate. |

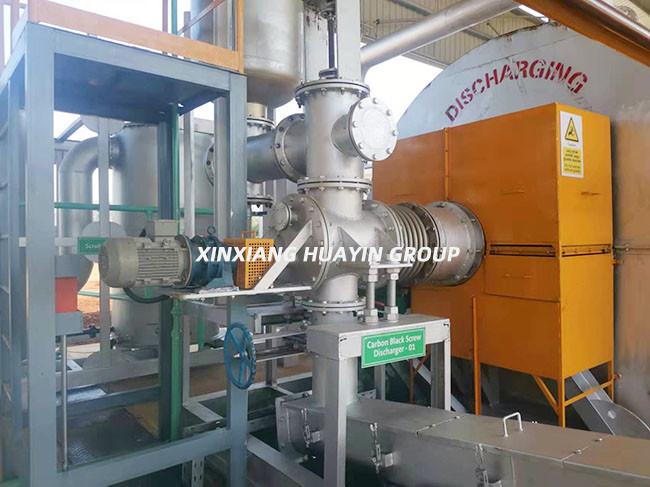

| High efficiency discharging | Adopt screw conveyor discharging device, discharge carbon black in sealed condition, no pollution, and save labor and time. |
| Integrated condensing device | All of the condensing parts have been installed together before delivery from the factory, saving installation time and ensuring welding quality |
| Auto feeding system | Auto feeder machine to feed raw material automatically, save labor and time. |
| Energy saving |
The inner reactor body and outside insulation cover have good airtightness, avoiding heating loss and saving fuel. The combustible gas (that cannot be further cooled down into fuel oil )will be recycled into the furnace for heating the reactor, maximizing resource utilization. |
| Valves | All of the valves use stainless steel. |
| Non-pollution | Adopt 3 layers of ceramic packing dedusting device and water spray, finally, no black smoke discharged out. SGS emission report provided. |
| Safety devices | Alarm, auto pressure releasing device, anti backfire device, vacuum pump to ensure the machine working smoothly. |
Output product and usage

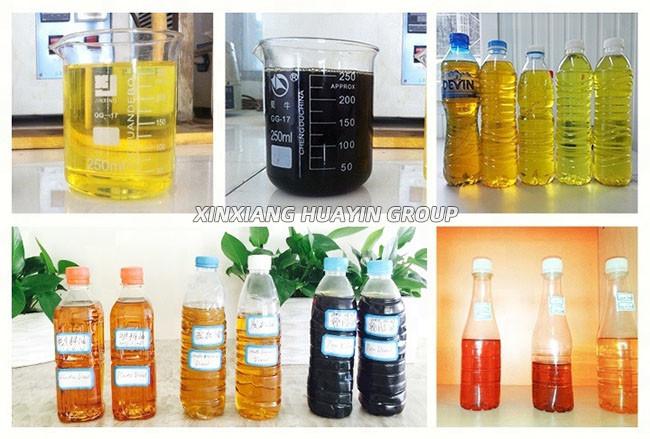

---Fuel oil (50%-75%)
1. The main product - fuel oil produced by waste pyrolysis machine is widely used for industrial and commercial purposes. This fuel oil is a kind of good heating fuel that can be applied for boiler factories, cement factories, glass factories, steel mills, etc.
2. It also can be refined to diesel by the distillation machine. The distillation diesel can be used for diesel engines.
---Carbon black (30%-35%)
1. It can be pressed into pellets for use in industrial heating. Pellets are a good alternative to coal as their calorific value is equivalent to that of coal.
2. It can be ground and refined into different standards.
Flammable Gas (8%-10%)
1. Recycled into the furnace to heat reactor instead of coal/wood/oil/natural gas.
2. Storage the extra gas to restart the next batch.
After-sales Service:
1. Based on customers’ requests and budgets, we help you make the most economic solutions.
2. Providing a Turnkey project.
3. Engineers are available to go overseas for plant installation, test the machine, and train workers.
4. One year warranty for the main reactor of pyrolysis machines and lifetime maintenance for complete machines.
