3 Ton Rubber Pyrolysis Machine Bio Small Scale Plastic Pyrolysis Plant
Rubber Tyre Recycling Pyrolysis Plant 3 Ton Small Scale Bio Pyrolysis Machine
Product description
With the rising public awareness for environmental protection, Waste tire/plastic recycling has attracted more and more attention all over the world. Huayin pyrolysis technology can convert waste tires, rubber, and plastic scrap into fuel oil, carbon black, steel wire and combustible gas. The plant has the advantages of environmental friendly, energy-saving, high oil yield and quality, and longer service life.
what you will get from different amounts of tires?

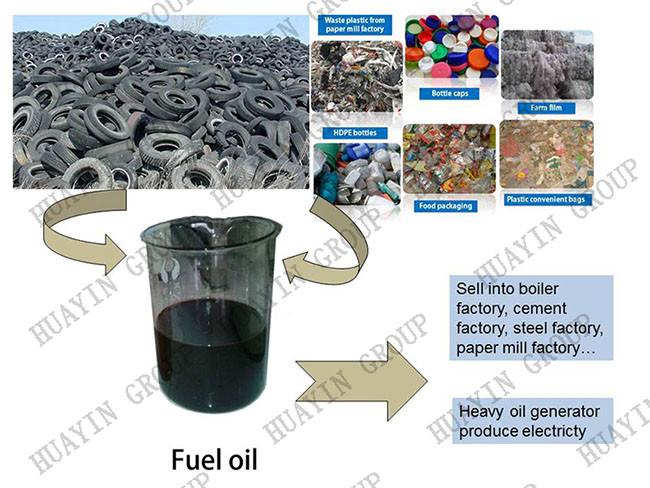

1. Fuel oil (40-45%): Widely used as fuel oil in industries such as steel and iron factories, ceramics or heavy oil generators, cement factories, boiler heating, etc. Or being refined into non-standard diesel for use in trucks, tractors, etc.
2. Carbon black(30%): Be pressed into pellets for use in industrial heating；It can be ground and refined into different standards.
3. Steel wires(10%): Sold or reprocessed
4. Combustible gas(10%-15%): Can be recycled and used during production as fuel.
Specification
| Model | HY-05 | HY-08 | HY-10 | HY-15 |
| Raw material | Waste rubbers/tyres/plastic | |||
| Output product | 45% fuel oil, 30% carbon black, 10% steel wire, 10%-15% syngas | |||
| Daily Handling capacity | 5 tons | 8 tons | 10 tons | 12 tons |
| Machine dimension(mm) | D2200*L5500 | D2600*L6600 | D2800*L6600 | D2800*L8000 |
| Landing Area | 200m2 | 250m2 | 300m2 | 350m2 |
| Working pressure | Normal pressure | |||
| Main engine rotating speed | 0.4R /min | |||
| Power | 15KWH | |||

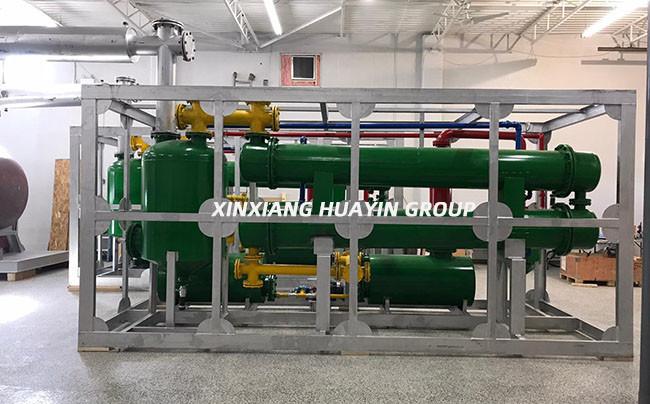

| Cooling Mode | Circle Water | |||
| Heating Mode | Direct | |||
| Oil Yield | 40%-50% | |||
| Noise dB (A) | <=85 | |||
| Working Mode | Batch type | |||
Main features
1) Industrial batch type, different capacity from 1ton to 15ton per batch.
2) low consumption, high oil yield, and quality, continuous and steady operation of production.

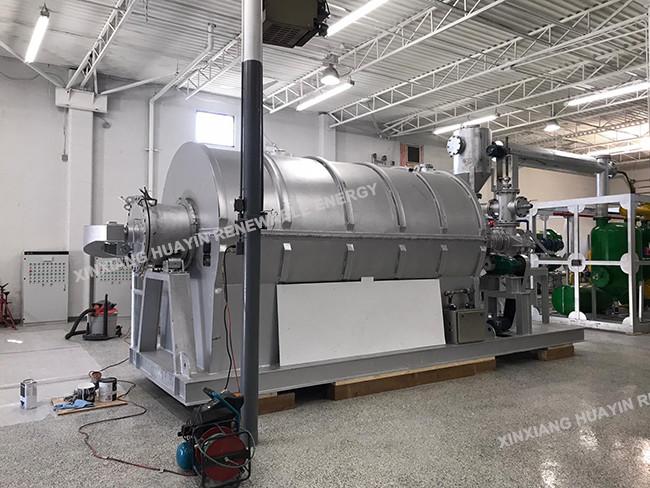

3) Horizontal rotating reactor enables the waste material equally heated and completely pyrolyzed to achieve high production efficiency.
4) Anti-coking device, alarm, auto pressure releasing device, anti backfire device, vacuum pump to ensure operation safe and reliable.
5) Combustible Gas recycling utilization technology, the combustible gas can be used for heating, remaining heat can be fully utilized, realized self-supply for pyrolysis process, dramatically minimizing running cost.
6) Adopt 3 layers of ceramic packing dedusting device and water spray, finally, no black smoke discharged out. SGS emission report provided.
7) Support PLC system to achieve high automation production and ensure operation under safety conditions.
8) Low requirement for manpower and clean production.
Oil ratio
| Raw materials | Oil ratio |
| PP (Microwave oven food box/yogurt bottles, ect.) | 50%-75% |
| PS(fast food boxes/instant noodle boxes) | 50%-75% |
| PE(plastic film/plastic wrap) | 50%-75% |
| Plastic cable | 80% |
| ABS(engineering plastic) | 40% |
| Leftovers of paper | Wet 15-20%,Dry 60% |
| House garbage | 35%-50% |
| Plastic bags | 50% |
| Submarine cable | 75% |
| Rubber cable | 35% |
| Sole | 30% |
| Small tires | 45%-50% |
| Big tires | 35%-40% |
