30 Ton Continuous Tyre Pyrolysis Plant Batch Type With High Oil Yield PLC Control
30Ton Continuous Type Waste Tyre Pyrolysis Plant With High Oil Yield Plc Control
Product description
THE HY-30 continuous pyrolysis system can be installed into metal frames size of 40 feet HQ container, designed for controlled thermal decomposition process of hydrocarbon based materials utilization.

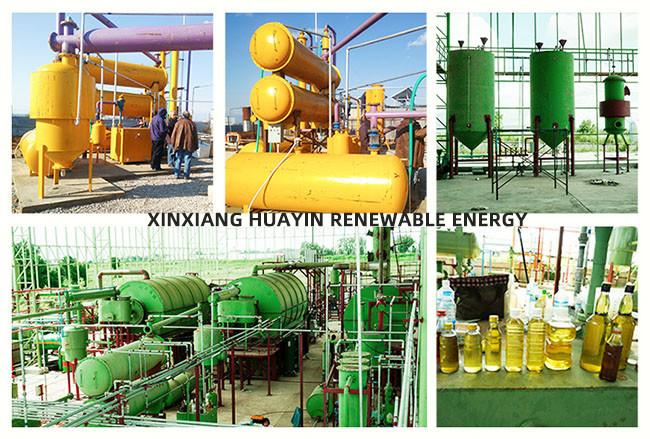

The plant is installed outdoors under the shed, the plant includes the following assemblies:
Pyrolysis assembly
Condensation assembly
Control system equipped with safe start devices
The plant is controlled by operator in manual or automatic mode from the operator’s touch screen. Process data is controlled and monitored by various instruments and a control system. Safety interlock system monitoring deviations from main process parameters ensures safe operation of the plan and long life of the equipment. The plant is supplied with air cooling system that cools media (cooling water)
Function of the output product
| Output Products | Application |
| Fuel Oil (40%-55%) | 1. Used as the heating material and sell it to cement factories, glass factories, ceramic factories, electric power factories, steel making factories, boiler factories, etc. 2. Used in heavy oil generator for electricity generation. 3. Deep process it into diesel oil with our distillation plant, color, and smell removal system, the final oil can be used in trucks, tractors, etc. |
| Carbon Black (30%-35%) | 1. Make it to pellet or briquette as heating material. |
| Steel Wire (10%-15%) | Sell to iron and steel factory directly. |
| Flammable Gas (8%-10%) | 1. Recycled into the furnace to heat reactor instead of heating material. |
Specification
| SPECIFICATIONS FOR 30 TON CONTINUOUS WASTE TIRE PYROLYSIS MACHINE | |||
| Reactor | Raw materials | Q345R boiler plate | S310 stainless stee |
Main performance parameters | Capacity | 25~30 tons per day | |
| Voltage | 380V | 50hz | |
| Electric power consumption | KW | 11 | |
| Alternative fuel type for start up | Natural gas/heavy oil | ||
| Plant minimum area occupied | 45 meters length, 15 meters width, 8 meters height | ||
| Maximum temperature of oil gas | 200 ℃ | ||
| Required utilities | Initial cooling water supply Electric power supply | ||
Our service
1. One-stop solution. We have more than 20 years of rich experience in manufacturing waste pyrolysis plants. We pay more attention to customer experience and customer satisfaction. As long as you need it, we are able to provide you with a better quality complete production line.
2. We have our own factory and trading company, no middlemen, more cost-effective, and it is more convenient for you to replace related parts, as long as there is a problem, we can provide a solution immediately, product quality is guaranteed.
3. We promise that our plants are efficient and have a long service life to ensure that you can quickly produce in batches.
4. Delivery time is 15-25 days.
5. We can send engineers on-site to guide installation and train your workers.
6. One-year warranty, lifelong maintenance of the equipment, providing professional use guidance services.
