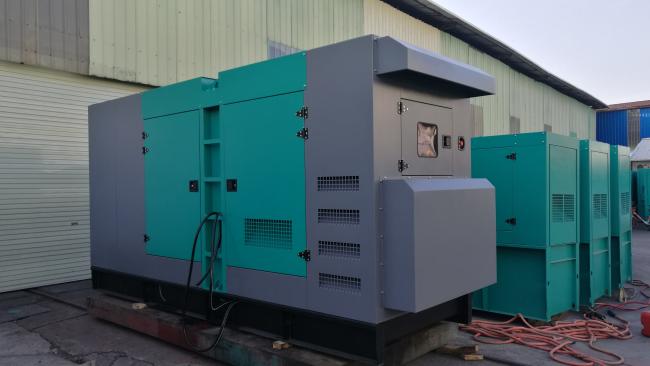

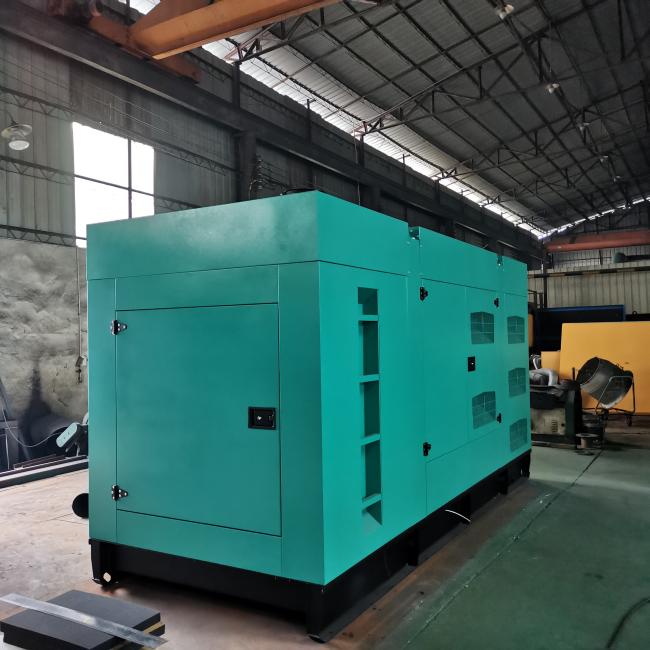

0.8PF 600kva Cummins Diesel Generator Set Compact 400V 3 Phase Generator
SHX 600kva Cummins Diesel Generator Set 400V Diesel Generator 3 Phase Generator
Product Introduction:

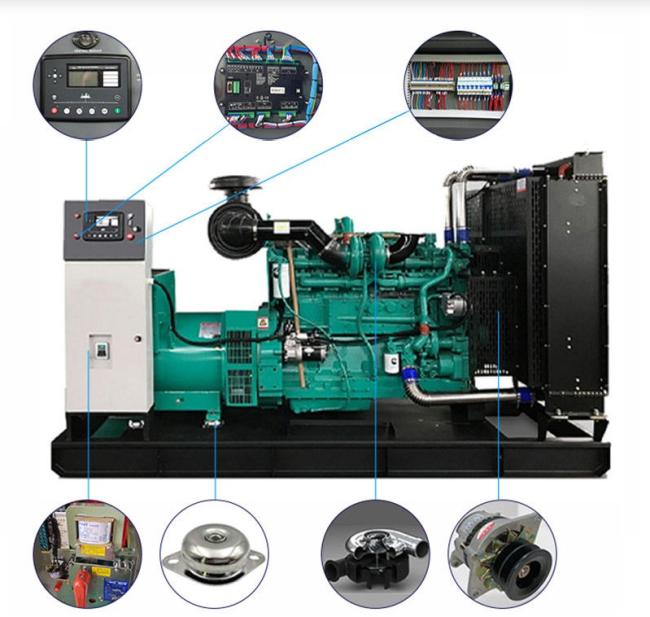

Product Structure:
1. Diesel engine
2. Alternator
3. Self-starting control cabinet
4. Water tank radiator
5. power output switch cabinet
6. Hi-strength base frame
7. Built-in shpck pad
Generator Feaure:
1. all qualified generator sets are subjected to a comprehensive performance test which includes 50% load, 70% load, 100% load and to check, veritfy that all control systems, alarm and shut-down protection.
2. Designed to comply with ISO 8528/GB 2820
3. High quality, reliable and complete power unit.
4. compact design
5. Easy start and maintenance possibility.
| Model No. | STANDBY POWER | PRIME POWER | ENGINE | ALTERNATOR | CONTROLLER | ||
| KVA | KW | KVA | KW | ||||
| SCF-600 | 600 | 480 | 540 | 432 | KTAA19-G5 | Farrand | 6110 |
230/400VAC,50Hz,0.8PF (lag),Three phase four wire.
Generator Set Specification
| Governor Class | ISO8528 G3 |
| Potential Drop | 土1% |
| Steady Voltage Regulation | 土1% |
| Frequency Drop | Synchronous(0%) |
| Steady-state Frequency | 土0.25% |
| R.R.I.Suppression | BS EN 61000-6-4 / BS EN 61000-6-2 |
| Fuel Consumption Rate ,g/kw.h(L/hr) | 207 (125.16) |
| Starting Battery Capacity ,A/hrhhr | 200*2 |
| Total Coolant Capacity ,L | 116.5 |
| Fuel Capacity (base tank),L | N/A |
Lubrication System
| Total Lubricant Capacity | 50L |
| Lubricant Consumption | ≤4g/kwh |
| Engine Oil Tank Capacity | 38L |
| Oil Pressure at Rated Speed | 345-483 kPa |
