CE EMC RoHS BIS Rainproof LED Power Supply AC DC Lighting Transformer
CE EMC RoHS BIS Rainproof LED Power Supply AC DC Lighting Transformer
Constant Voltage Rainproof LED Power Supply AC DC Lighting Transformer
Product Feature
1. Aluminum shell IP63 rainproof series, mainly used in LEDs fields.
2. Non-waterproof, IP63 rainproof, outdoor use and installed following the arrow.

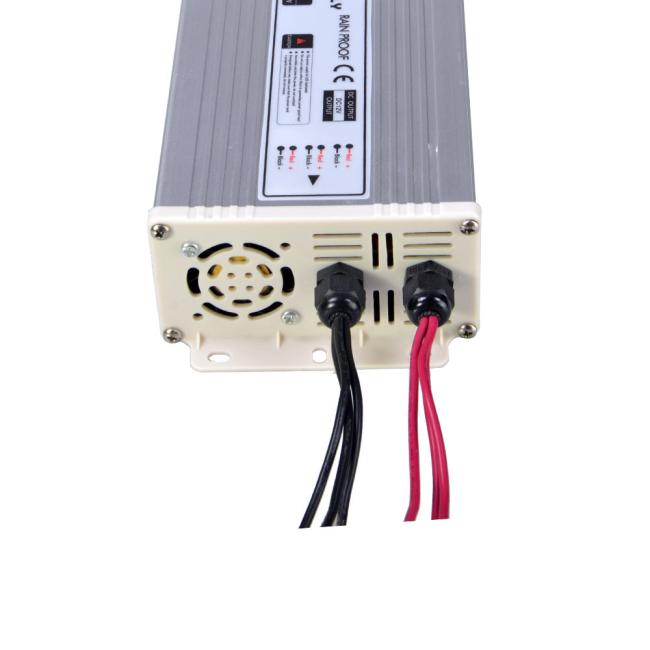

3. Automatic cooling fan and heat sink cooling design, double cooling design.
4. 100% full load burn-in test. Usable 300W ~ 600W but advise 300W ~ 480W.
5. Protections: short circuit, over load, over voltage, over temp.
Specification
| Output Power | 400w | OVER VOLTAGE Protection | Yes |
| Output Voltage | DC 12V | OVER LOAD Protection | Yes |
| Input Voltage | AC 220V±5% | OVER TEMP. Protection | Yes |
| Frequency | 47-60Hz | WITHSTAND Voltage | 2KVAC/Min |
| Efficiency | ≥80% | ISOLATION RESISTANCE | ≥100m |
| RIPPLE&NOISE | 100mVp-p | Cooling | By air |
| HOLD UP TIME | 20ms(220VAC) | Working Temp. | -30~50℃ |
| SETUP, RISE TIME | 50ms(220VAC) | Warranty | 2 Years |
Advantage:
- Efficiency: The efficiency of LED power conversion power is usually very high, and can reach more than 90%. Compared with the traditional power supply, the LED power supply is more efficient and more energy -saving.
- Stability: LED power supply can stably provide constant voltage and current to ensure that the LED lamps can work for a long time, and at the same time, the LED lamps can be protected from the damage of voltage and current fluctuations.
- Light: LED power is usually small and light, easy to install and move without taking up too much space.
- Safety: LED power supply usually has overload, overheating and short -circuit protection functions, which can ensure the safety of LED lamps and protect the safety of users.
- Reliability: LED power supply usually has a long life and high reliability, which can work long -term and stable.
- Environmental protection: LED power supply usually adopts high -efficiency power design, has the advantages of low energy consumption and low pollution, and is more environmentally friendly.
| OUTPUT | DC VOLTAGE | 12V | 24V | |||||||
| VOLTAGE TOLERANCE | ±5% | ±5% | ||||||||
| RATED CURRENT | 50A | 25A | ||||||||
| CURRENT RANGE | 0-50A | 0-25A | ||||||||
| RATED POWER | 600W | 600W | ||||||||
| RIPPLE& NOISE (MAX.) | 120mVp-p | 150mVp-p | ||||||||
| POWER FACTOR(Typ.) | 0.6 | 0.6 | ||||||||
| INPUT | VOLTAGE RANGE | 175-240VAC | ||||||||
| FREQUENCY RANGE | 50/60 Hz | |||||||||
| AC CURRENT(Typ.) | 6.5A/230V | |||||||||
| EFFICIENCY(Typ.) | 85% | 86% | ||||||||
| COLD START CURRENT | 52A/AC230V | |||||||||
| SETUP, RISE, HOLD UP TIME | 800ms, 50ms, 20ms | |||||||||
| NO-LOAD CURRENT | <4.5mA/240VAC | |||||||||
| PROTECTION | OVER LOAD | hiccup 105%~150% of the rated power 600W, | ||||||||
| recovers automatically after fault condition is removed | ||||||||||
| OVER CURRENT | hiccup over the maximum rated current, | |||||||||
| recovers automatically after fault condition is removed | ||||||||||
| SHORT CIRCUIT | hiccup short circuit, | |||||||||
| recovers automatically after fault condition is removed | ||||||||||
| OVER TEMP | hiccup the Rectifier ≥85°C, | |||||||||
| recovers automatically after temperature fall to environment temp | ||||||||||
| ENVIRONMENT | WORKING TEMP | –20°C~+60°C (no frost) | ||||||||
| WORKING HUMIDITY | 20%~90%RH | |||||||||
| STORAGE TEMP | –40°C~85°C | |||||||||
| STORAGE HUMIDITY | 10%~95%RH | |||||||||
| SAFETY&EMC | SAFETY STANDARDS | CE, ROHS | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P: 1.5KVAC/1min, I/P-F/G: 1.5KVAC/1min, O/P-F/G: 0.5KVAC/1min | |||||||||
| EMC TESTING STANDARD | EN55022:2010; EN61000-3-2:2014; EN61000-3-3:2013;EN55024:2010+A1:2015 | |||||||||
| EN61347-1:2008+A1:2011+A2:2013; EN61347-2-13:2014 | ||||||||||
| REMARK | 1. The above mentioned data were measured at 220VAC input and 25°C. | |||||||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated | ||||||||||
| with a 0.1uf & 47uf parallel capacitor. | ||||||||||
FAQ
Q1. What's your lead time and shipment?
A1: 3-30 days which depends on the order items and quantity. We can ship the goods by express like DHL, UPS, Fedex etc. Or by air
and by sea with cargo company.
Q2. What's your MOQ?
A2: MOQ 10pcs for stock items; MOQ 100pcs for OEM order.
Q3. How about the Quality?
A3: We have the professional and experienced engineer team and strict QA and QC system. Repair rate under 3‰.
Q4. What is the payment you accept?
A4: T/T or Paypal. 50% deposit and 50% before shipment.
Q5. Do you accept OEM or ODM?
A6: Yes, we can custom the current, power, size or other special specifications as your requirement.
