HF-SP152 Original Japan MITSUBISHI Medium Inertia Power Servo Motor
Price:
$10.00 - $500.00/Pieces
MOQ:
1/pc
Delivery Time:
3-5 days
Brand:
Mitsubishi
Product Description

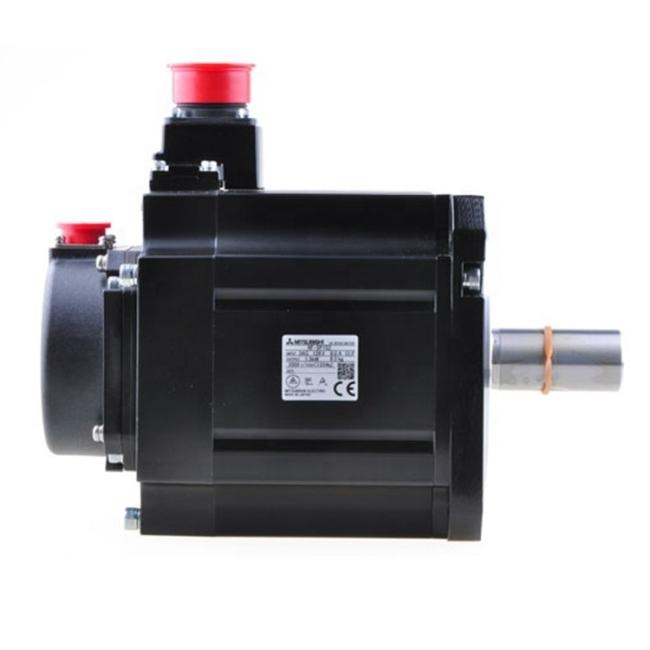

HF-SP152 Original Japan MITSUBISHI Medium Inertia Power Servo Motor
Description
Mitsubishi Servo Motor HF-SP152
- Extended Product Type : Moters
-
- Product ID : HF-SP152
-
- Mitsubishi Type Designation : Moters
Specification
- Mounting method : Flange mounting
- Mounting direction : In any directions
- Lubrication method : Grease lubrication
- Output shaft rotating direction : Opposite direction to the servo motor shaft
- Backlash : 40 minutes to 2* at reduction gear output shaft
- Permissible load inertia moment ratio : 4 times or less
- Maximum torque : Three times of the servo motor rated torque
- Reduction gear efficiency : 85 to 94%
Specifications of Mitsubishi Servo HF-SP152:
| SERVO MOTOR | |
| Type | HF-SP |
| Rated Capacity (kW) | 1,5 |
| Rated Torque (Nm) | 7,16 |
| Maximum Torque (Nm) | 21,5 |
| Rated Speed (rpm) | 2000 |
| Maximum Speed (m/s) | 3000 |
| Inertia (kg*cm2) | 17,8 |
| Brake | NO |
| Shaft Type | STRAIGHT SHAFT |
| Protection Class | IP67 |
| Power Supply (V) | 200 |
| Current Type | AC |
| Encoder Type | ABSOLUTE/INCREMENTAL |
| Encoder Resolution (p/rev) | 262144 |
| PRODUCT DIMENSIONS & WEIGHT | |
| Width (mm) | 130 |
| Height (mm) | 130 |
| Depth (mm) | 162,5 |
| Weight (kg) | 8,3 |
