Mitsubishi AC Servo Motor Driver 1 Phase 200 - 240VAC MR-J4W2-22B MRJ4W222B

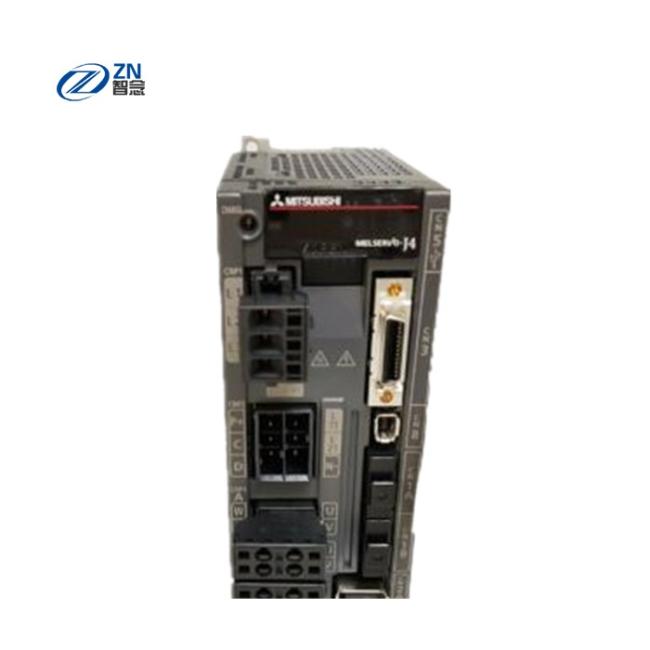

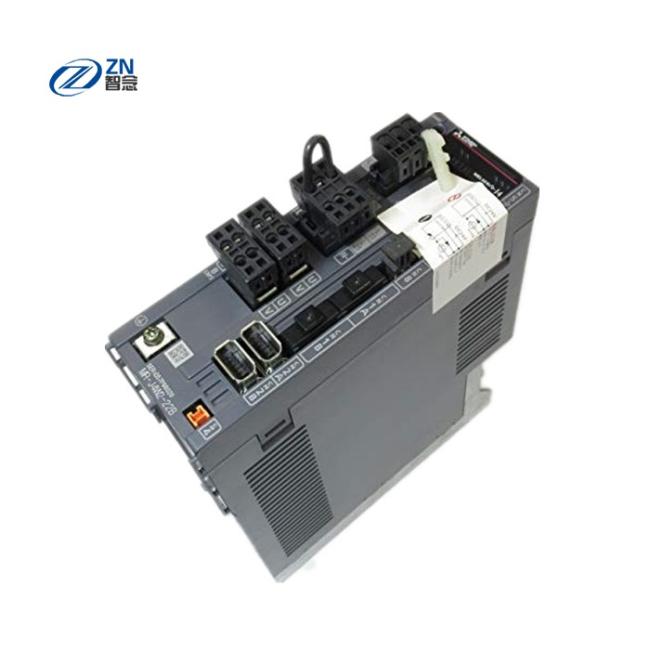

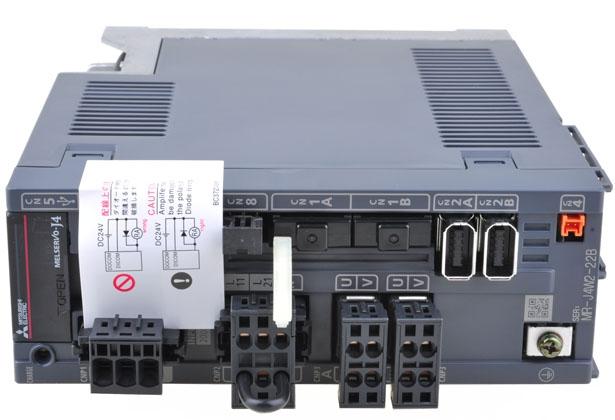

Mitsubishi MR-J4W2-22B AC Servo Motor Amplifier Drive MRJ4W222B
SERVO AMPLIFIER
|
Type |
MR-J4 |
|
Rated Capacity (kW) |
0,2 |
|
Number of Axes |
2 |
|
Safety Function Type |
STO (IEC/EN 61800-5-2) |
|
Power Supply 1 Phase (VAC) |
200-240 |
|
Power Supply 3 Phase (VAC) |
200-240 |
|
Dynamic Break |
BUILT-IN |
PRODUCT DIMENSIONS & WEIGHT
|
Width (mm) |
60 |
|
Height (mm) |
168 |
|
Depth (mm) |
195 |
|
Weight (kg) |
1,5 |
ORDER CODES
|
European Order Code |
248645 |
|
Global Order Code |
1S8201 |
CLASSIFICATION DATA
|
Product hierarchy |
IAK30012 |
|
Class Description |
FA-Servo-Motion: Servo Amplifier |
|
External Material Group |
Standard Material |
AVAILABILITY
|
Logistic Class |
A |
PACKAGING DIMENSIONS & WEIGHT
|
Gross Weight |
1.8 KG |
|
Volume |
5.704 CDM |
|
Length |
22 CM |
|
Width |
30,5 CM |
|
Height |
8,5 CM |
COMMODITY / IMPORT CODE
|
Commodity Code |
85371091 |
|
Country of Origin |
JP |
LIFE CYCLE
|
Predecessor |
227002 |
CAMPAIGNS
|
Selling Status |
Standard |
ENVIRONMENTAL
|
RoHS Compliance |
COMPLIANT |
|
REACH Limit Exceeded |
NO |
|
Dangerous Goods Regulations |
NO |
Product Description
[Features]
MR-J4-A Type
・ Servo amplifier applicable with general-purpose interface.
・ Position control by pulse train command and speed/torque control by analog voltage command are possible.
・ It supports maximum command pulse frequency of 4 M pulses/s.
ME-J4-B Type
・ Servo amplifier applicable with SSCNET III/H.
・ You can build a perfect synchronization system using high-speed serial optical communication.
・ By combining with the servo system controller, you can maximize the functions and performance of the servo system.
MR-J4W2 Type
・ Compatible with SSCNET III/H. It is a 2-axis integrated servo amplifier that can drive 2 servo motors with 1 unit.
・ You can realize energy saving, space saving, wire saving, and low cost.
MR-J4W3 Type
・ Compatible with SSCNET III/H. It is a 3-axis integrated servo amplifier that can drive 3 servo motors with 1 unit.
・ You can realize energy saving, space saving, wire saving, and low cost.
MR-J4-GF Type
・ CC-Link IE Field network applicable servo amplifier.
・ An Ethernet-based open network allows you to construct a system that synchronizes with remote I/O.
