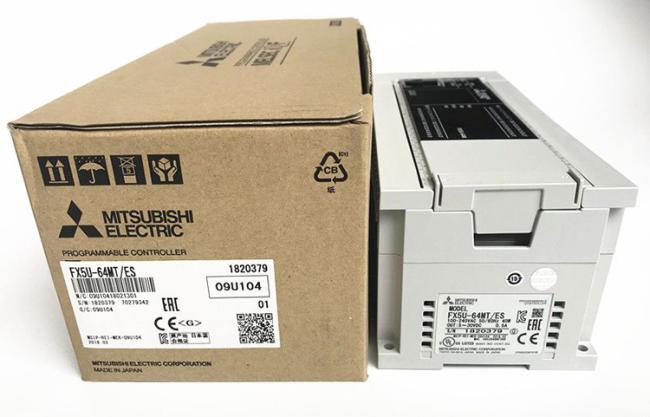

Mitsubishi PLC Melsec iQ-F Series FX5U-64MT/ES In stock
Price:
$50-$500
MOQ:
1/pc
Delivery Time:
Negotiable
Brand:
Mitsubishi
Product Description
Mitsubishi PLC Melsec iQ-F Series FX5U-64MT/ES In stock
Techinical parameter
Specifications
| Attribute | Value |
|---|---|
| For Use With | MELSEC IQ-F Series IQ Platform-Compatible PLC |
| Manufacturer Series | FX5U |
| Number of Inputs | 32 |
| Input Type | Sink, Source |
| Voltage Category | 100 → 240 V ac |
| Output Type | Relay, Transistor |
| Number of Outputs | 32 |
| Network Type | Inverter Communication, MELSEC Communication protocol (3C/4C Frames), MELSOFT Connection, Modbus RTUI, N:N Network, Predefined Protocol Support, SLMP (3E Frame), Socket Communication |
| Communication Port Type | Ethernet, RS485 |
| Program Capacity | 64 k steps |
| Programming Interface | RJ45 Connector (Ethernet Communication) |
| Memory | 5 (Data Memory) MB, 64 (Program Capacity) k steps, 120 (Device Memory) kB |
| Standards Met | CE, CULus Listed |
| Depth | 83mm |
| Length | 220mm |
| Minimum Operating Temperature | 0°C |
| Dimensions | 220 x 90 x 83 mm |
| Width | 90mm |
| Mounting Type | Panel Mount |
| Programming Language Used | FBD, Ladder Diagram, ST |
| Number of Communication Ports | 2 |
| Maximum Operating Temperature | +55°C |
FA-COM PLC: Main Unit
| Type | FX5U |
|---|---|
| Power Supply (V) | 100-240 |
| Current Type | AC |
| Program Memory | 64K STEPS |
| Program Memory Unit | FLASH |
| Integrated Digital Inputs | 32 |
| Integrated Digital Outputs | 32 |
| Integrated Analogue Inputs | 2 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Local I/O Points | 256 |
| Local + Remote I/O Points | 512 |
| Expandable | YES |
| Cycle Time LD (ns) | 34 |
| Cycle Time MOV (ns) | 34 |
| USB | N/A |
| Ethernet Port | 1 |
| RS-232 | N/A |
| RS-422 | N/A |
| RS-485 | 1 |
| Power Consumption (W) | 40 |
| Buffer Battery | OPTION |
| Protection Class | IP10 |
| Min. Ambient Temperature (°C) | 0 |
| Max. Ambient Temperature (°C) | 55 |
| Series | MELSEC IQ-F SERIES |
Product Dimensions & Weight
| Width (mm) | 220 |
|---|---|
| Height (mm) | 90 |
| Depth (mm) | 83 |
| Weight (kg) | 1 |
Conformity
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | COMPLIANT |
| Shipping Approvals | ABS,BV,DNV GL,KR,LR,NK,RINA |
