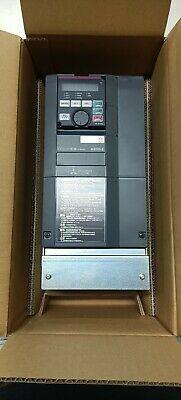

Frequency Mitsubishi Electric Inverter 0.4kw FR-A820-00046-2-60

Price Negotiable

Price: $99.00 - $699.00/Pieces

MOQ: 1/pc

Delivery Time: Negotiable

Brand: Mitsubishi

Product Description

Mitsubishi frequency inverter FR-A820-00046-2-60 FR-A Series

IP21 and IP55 enclosure options available
Built in RS-485 communication, most major communications protocols are supported
24VDC control circuit power supply
Partitioned inverter/converter design for optimal solutions
Real sensorless vector control ensures faster response
Advanced magnetic flux vector control or V/F control
Energy saving functions
Optimum excitation control improves motor efficiency
IPM motors reduce energy consumption
Multi-language LCD parameter unit includes clock functions
Inverter complies with European EMC Directive
Global compliance

Power Loss SLD (W)	60
Power Loss ND (W)	40
Power Loss HD (W)	30
Power Loss LD (W)	55
Control Method (2)	N/A
Built-In Network (2)	N/A
Series	FR-A SERIES
Safe Torque Off (STO)	YES
Rated Output Current ND (A)	3
Phases	3
Integrated Digital Inputs	12
Display Type	5 DIGITS LED (12 SEGMENT)
Integrated EMC Filter	YES (OFF ON INITIAL SETTINGS)
Integrated DC Choke	NO
RS-485	N/A
Integrated Analogue Outputs	2
Type	FR-A800-E INVERTER
Rated Output Current SLD (A)	4,6
Program Memory	6K
PLC Function	YES
Rated Motor Capacity ND (kW)	0,4
Control Method	VECTOR CONTROL (WITH FR-A8AP)
Integrated Analogue Inputs	3
Rated Output Current LD (A)	4,2
Program Memory Unit	STEPS
USB	1+1 MINI
Brake Chopper ED (%)	-
Current Type	AC
Protection Class	IP20
Motor Type	INDUCTION MOTOR, PM MOTOR
Display	FR-DU08
Rated Motor Capacity SLD (kW)	0,75
Max. Permissible Voltage (V)	264
Digital Outputs (Transistor)	5
Rated Output Current HD (A)	1,5
Expandable	YES
Minimum Rated Voltage (V)	200
Min. Permissible Voltage (V)	170
Digital Outputs (Relay)	2
Rated Motor Capacity LD (kW)	0,75
Type of Terminal Block	PLUG
Maximum Rated Voltage (V)	240
Built-In Network	MODBUS/TCP
Rated Motor Capacity HD (kW)	0,2
Regenerative (4Q)	NO
Leakage Current (mA)	22
Power Loss (W)	N/A
Standby Power Consumption (W)	-
Ethernet Port	1
