Fiber Glass Railway Passenger Seat Fire Resistance DIN5510
Fiber Glass Seats Railway Passenger Seat Fire Resistance DIN5510
Brief introduction:
Fiberglass seats are widely used as passenger seats in subway, light rail, and urban rail vehicles due to their simple structure, light weight, and low cost.The FRP seats are processed by mold pasting. The surfaces could be painted or printed with texture pattern according to customer requirements.
Main technical parameters:
| Name | Fiber Glass Seats Railway Passenger Seat Fire Resistance DIN5510 |
| Application | Metro, LR, Urban Rail Passenger Seats |
| Size | Customized |
| Material | FRP |
| Production process | Mold pasting + blasting + painting/printing |
| Fire proof standard | DIN5510-2 |
Material properties:
The FPR seats applied for railway vehicles must have good flame retardancy, fire resistance, low smoke and low toxicity, and their fire resistance and flame retardancy meet the requirements of TB/3237 standard. Their manufacturing, inspection, acceptance, shipping, and various mechanical performance indicators meet the following requirements:
| Barcol hardness | >30 |
| Bending strength | ≥ 150MPa |
| Tensile strength | ≥ 100MPa |
| Impact toughness | ≥ 150 (KJ/m ²) |
| Flame retardant performance | Comply with DIN5510-2 |
| Resistance to falling ball impact | The impacted surface must not have cracks or deformation |
| Resistance to sandbag impact | The impacted surface must not have cracks or deformation |
| Applicable environment | -30 ℃ and+45 ℃, max. relative humidity 90% |

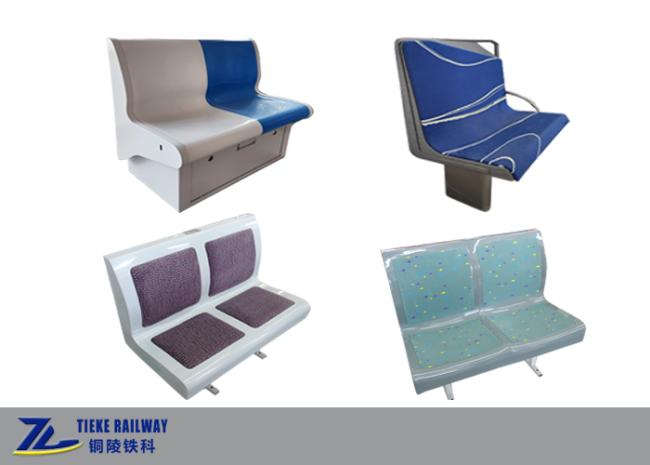

The options of fiber glass seats :
