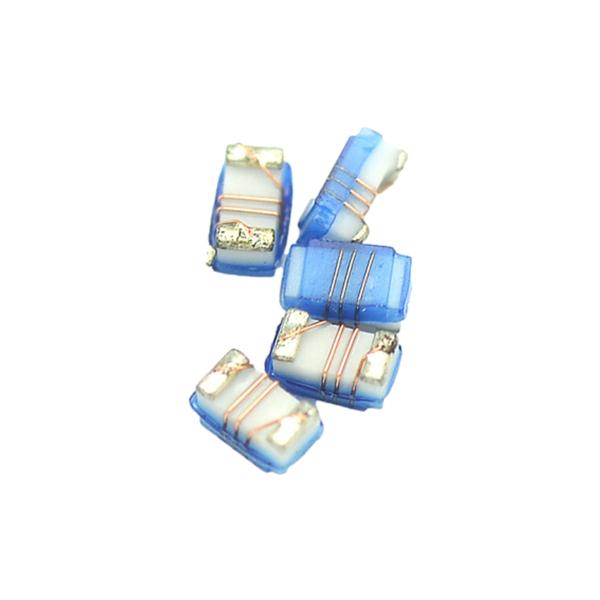

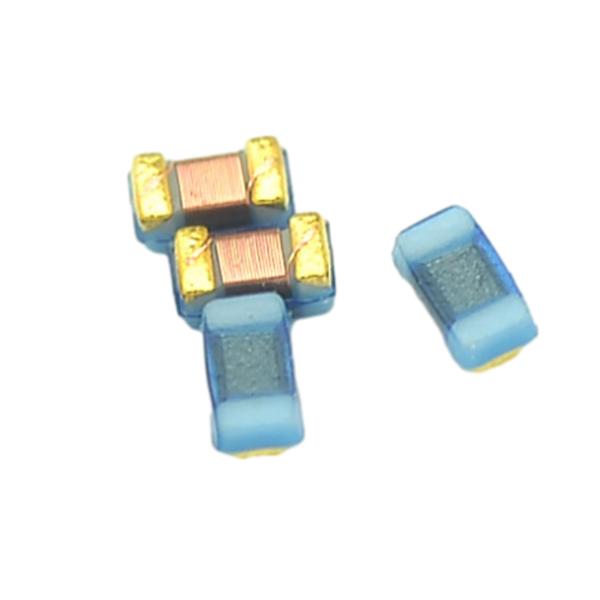

Wire Wound Chip Ceramic Inductor High Current SMD Power Inductor Wire-wound Common Mode Filter

Features:

• Small chip suitable for surface mounting；
• High Q value and high self-resonant frequency with ceramic material；
• Tight inductance tolerance and stable inductance； at high frequency；
• RoHS Compliant.

Application:

• High frequency circuit in telecommunication and other equipments；
• Mobile phones such as GSM, CDMA, PDC, etc；
• Bluetooth, W-LAN, Broadband network.

Specification:

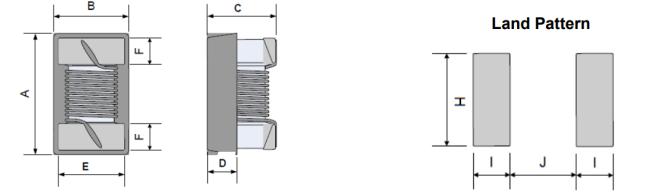

Shape and dimension(unit:mm)

Packaging Quantity:

Electrical Characteristics :

• Operating and storage temperature range (individual chip without packing): cking): -25℃ ~ +125℃
• Storage temperature range (packaging conditions): -10℃~+40℃ and RH 70% (Max.)

Note:

• Maximum allowable DC current is that which causes a 10% inductance reduction from the initial

​    value, or coil temperature to rise by 40°C,whichever is smaller. (Reference ambient temperature 20°C).

• Operating temperature -55℃ ~ +125℃.
• All test data is referenced to 25℃ ambient.
