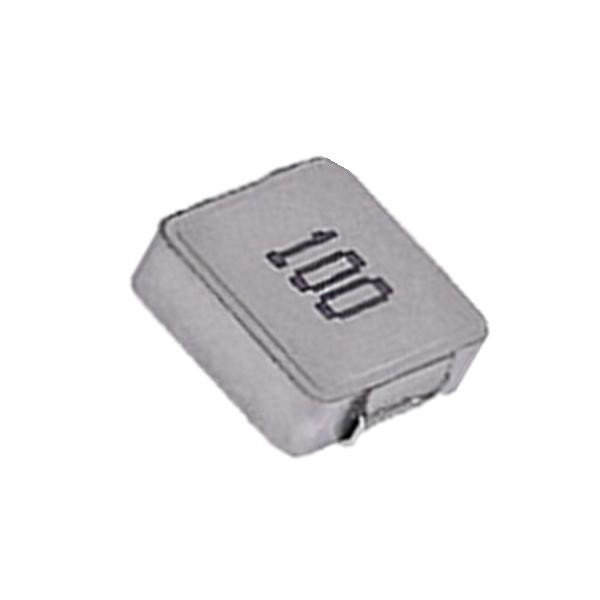

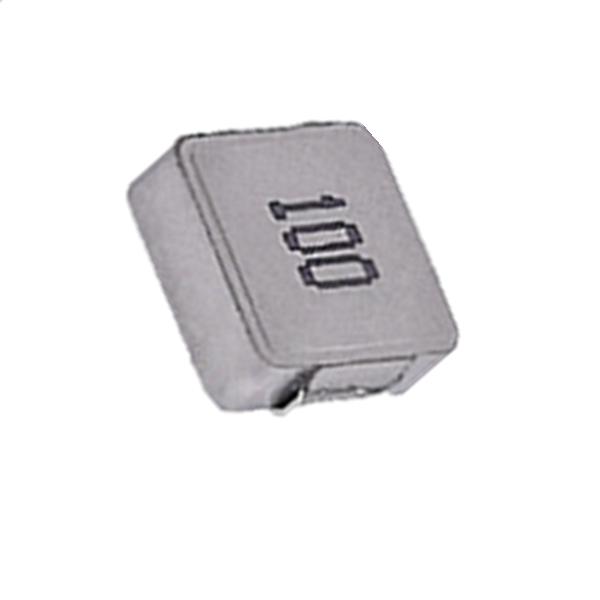

SMD Molding Power Inductor Copper Wire Toy Electronic Product

Features:

• Magnetically shielded construction, low DC resistance；
• Frequency Range: up to 29MHz；
• 100% lead(Pb)-free
• Reliable quality
• Handles high transient current spikes without saturation

Applications:

• Communications
• Next-generation mobile devices with multifunction such as adding color TV and digital movie cameras；
• Flat-screen TVs, blue-ray disc recorders, set top box；
• Notebooks, desktop computers, servers, graphic cards；
• Automotive systems；
• Telecomm base stations.

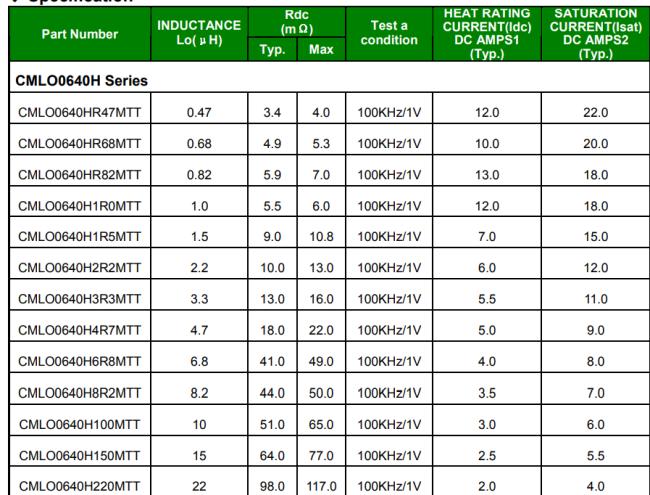

Specification:

Dimensions

Specification

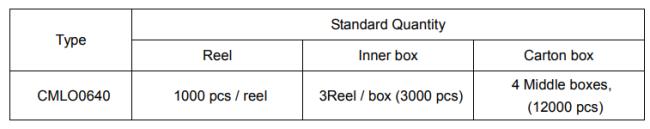

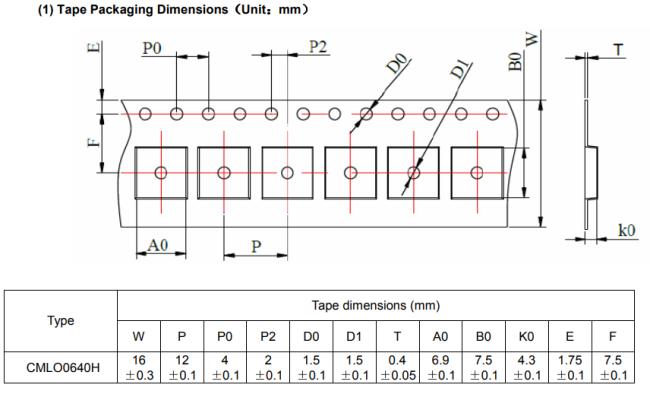

Packaging Information:

NOTES:

• DC current (Idc) that will cause an approximate △T of 40℃
• The part temperature (ambient + temp rise) should not exceed 120℃ under the worst operating conditions.
• Circuit design, component placement, PWB trace size and thickness, airflow and other cooling provisions
• all affect the part temperature. Part temperature should be verified in the end application.

Packaging Quantity(pcs)
