Nickel Zinc SMD Power Inductor 8.5A Dc Dc Converter Inductor
Price:
Negotiation
MOQ:
2000 pcs
Delivery Time:
3-21days
Brand:
Forewell
Product Description

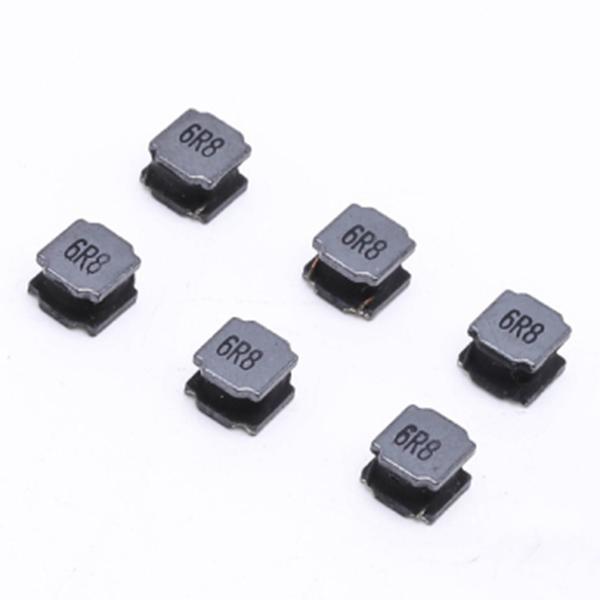

SMD Shielded Power Inductor Coil Dc Dc Converter Inductor For Electronic Product
Features:
- Magnetic-resin shielded construction reduces buzz noise to ultra-low levels
- Metallization on ferrite core results in excellent shock resistance and damage-free durability
- Closed magnetic circuit design reduces leakage flux and Electro Magnetic Interference (EMI)
- Low audible core noise；
- Frequency Range: up to 3.0MHz；
Applications:
- Portable gaming devices
- Notebooks, desktop computers, servers, graphic cards；
- Flat-screen TVs, blue-ray disc recorders, set top box；
- Portable gaming devices
- Automotive systems；
- Telecomm base stations.
- Communications
Specification:
| Item | Description |
| Category | SMD Power Inductor |
| Inductance | 0.24~10uH |
| Current Rating (Amps) | 8.5A~1.35A |
| Size / Dimension | 2.5*2.0*1.2mm |
| Material | alloy powder |
Material:
| NO. | Componets | Material |
| 1 | Core | Soft magnetic Matel |
| 2 | Wire | Plyurethane system enameled copper wire |
| 3 | Magnetic Glue | Epoxy resin and magnetic powder |
| 4 | Substrate | FeNiCu/Ag or Ag/Ni/Sn |
| 5 | Top Electrodes | Sn alloy |
| 6 | Marking | Nitrocellulose |

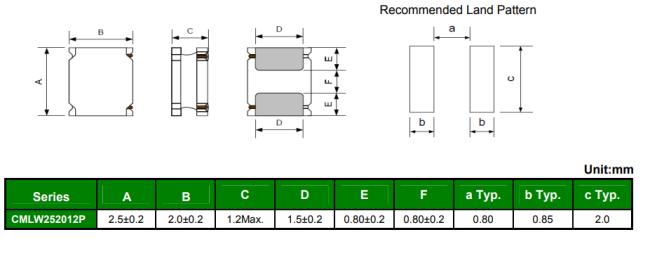

Dimensions
Specification
Packaging Quantity(pcs)
Standard Packing Quantity:2000 pcs/reel

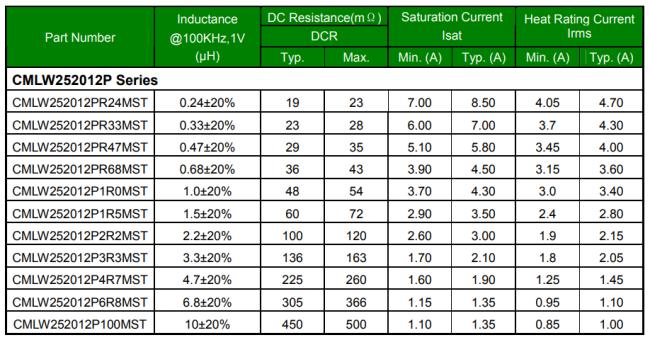

Electrical Characteristics
- 1) Operating temperature range(Including self-heating):-40℃ ~ +125℃
- 2) Storage temperature range (packaging conditions): -10℃~+40℃ and RH 70% (Max.)
