Forewell 10uH Inductor SMD , Copper Wire 4r7 Smd Inductor 0.95A

Price Negotiable

Price: Negotiation

MOQ: 2000 pcs

Delivery Time: 3-21days

Brand: Forewell

Product Description

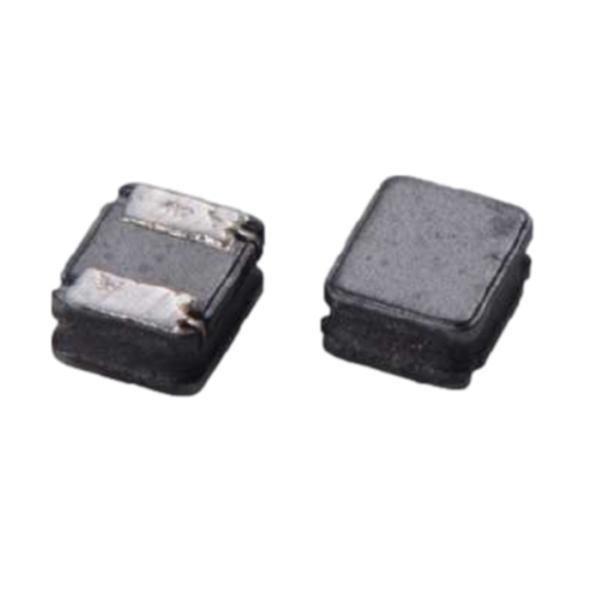

Inductor 10uH Inductor SMD Laptop Motherboard Choke Coil 4R7 Inductor

Features:

Magnetic-resin shielded construction reduces buzz noise to ultra-low levels
Metallization on ferrite core results in excellent shock resistance and damage-free durability
Closed magnetic circuit design reduces leakage flux and Electro Magnetic Interference (EMI)
Ultra low buzz noise, due to composite construction
Small and low profile inductor;
Take up less PCB real estate and save more power.

Applications:

Telecomm base stations.
Notebooks, desktop computers, servers, graphic cards；
Flat-screen TVs, blue-ray disc recorders, set top box；
Consumer Products
Automotive systems；
Next-generation mobile devices with multifunction such as adding color TV and digital movie cameras；

Specification:

Material:

NO.	Componets	Material
1	Core	Soft magnetic Matel
2	Wire	Plyurethane system enameled copper wire
3	Magnetic Glue	Epoxy resin and magnetic powder
4	Substrate	FeNiCu/Ag or Ag/Ni/Sn
5	Top Electrodes	Sn alloy
6	Marking	Nitrocellulose

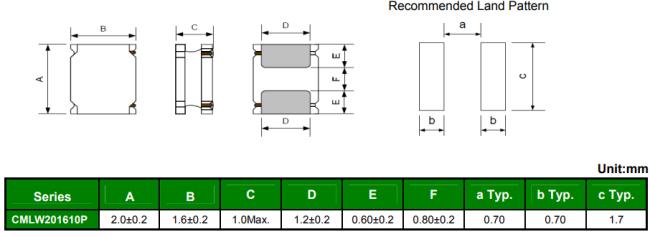

Dimensions:

Specification:

Packaging Quantity(pcs)

Standard Packing Quantity:2000 pcs/reel

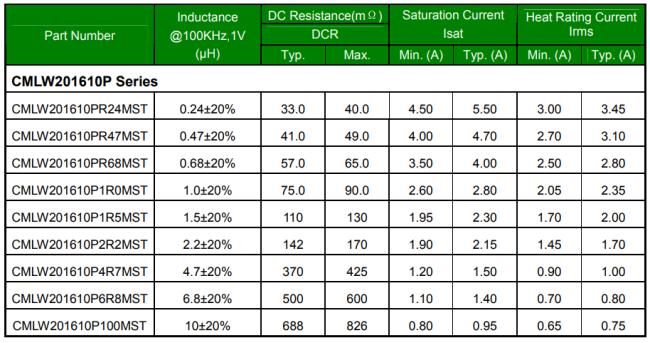

Electrical Characteristics

All test data is referenced to 20°C ambient;
Rated current: Isat or Irms, whichever is smaller;
Isat: DC current at which the inductance drops approximate 30% from its value without current;
Irms: DC current that causes the temperature rise (△T =40°C) from 20°C ambient.
