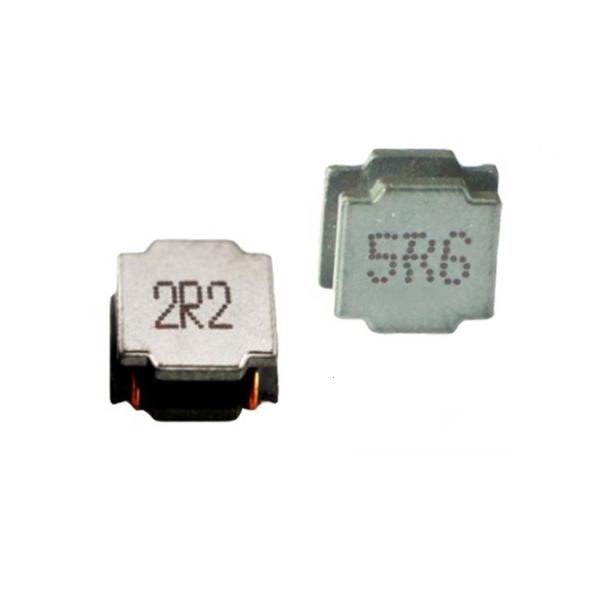

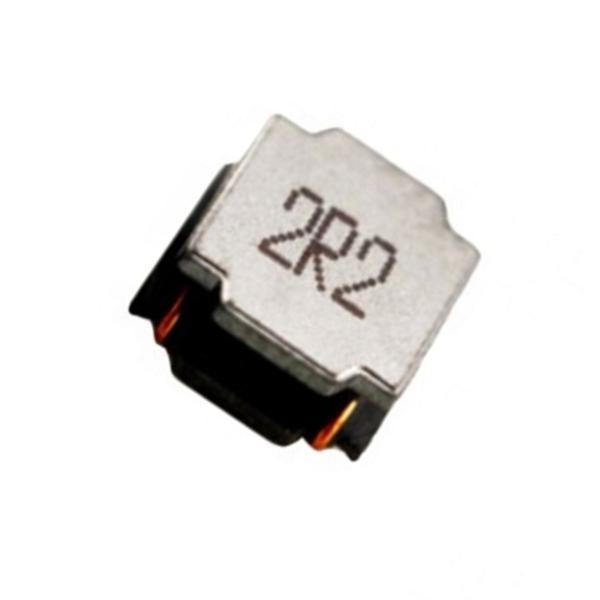

Shielded Power SMD Inductor Coil Ceramic Core Inductor For Electronic Product

Features:

• Magnetically shielded construction, low DC resistance；
• The use of magnetic iron powder ensure capability for large current；
• Low DC resistance and large permissible DC current
• Frequency Range: up to 3.0MHz；
• RoHS compliant
• Available on tape and reel for automatic insertion

Applications:

• Personal navigation systems
• Mobile devices with multifunction such as adding color TV and camera
• Blue-ray disc recorders,
• Flat-screen TVs, blue-ray disc recorders, set top boxes
• Set top box.

Specification:

Material:

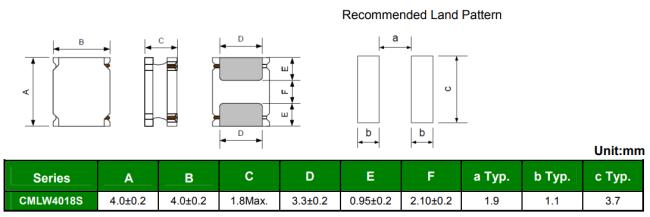

Dimensions:

Specification:

Packaging Quantity(pcs)

Standard Packing Quantity:3000 pcs/reel

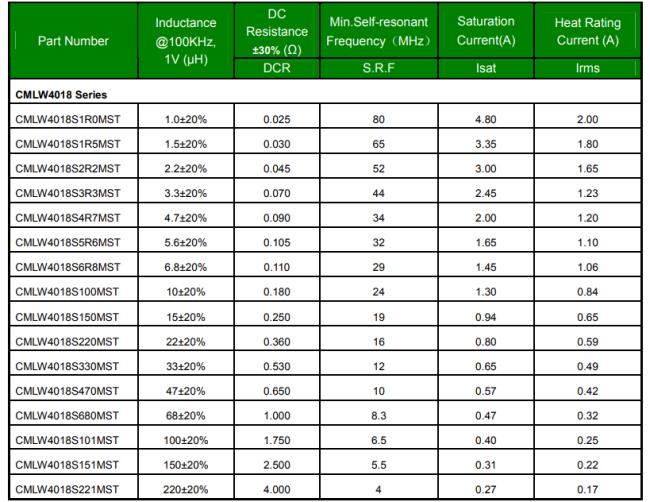

Electrical Characteristics

• All test data is referenced to 20°C ambient;
• Rated current: Isat or Irms, whichever is smaller;
• Isat: DC current at which the inductance drops approximate 30% from its value without current;
• Irms: DC current that causes the temperature rise (△T =40°C) from 20°C ambient.

RFQ:

• What are your main products?

          Our main products are: Power inductor,SMD inductor coil,NR inductor etc.

• How long will the delivery time take?

          Usually takes 14-21 days.

• Are you trading company or manufacturer?

          We are OEM/ODM manufacturer with our own factories.

• How do you ship the goods and how long does it take?

          We usually ship by DHL, UPS, FEDEX, and TNT. Sample LT is 3-7 days, order LT is 20 days.
