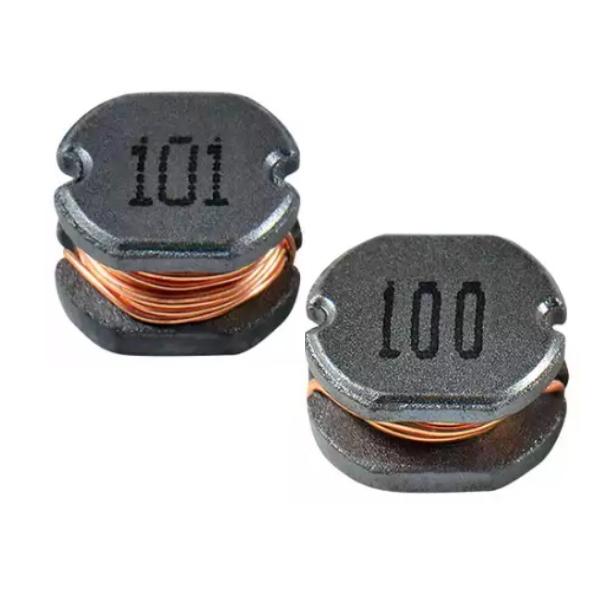

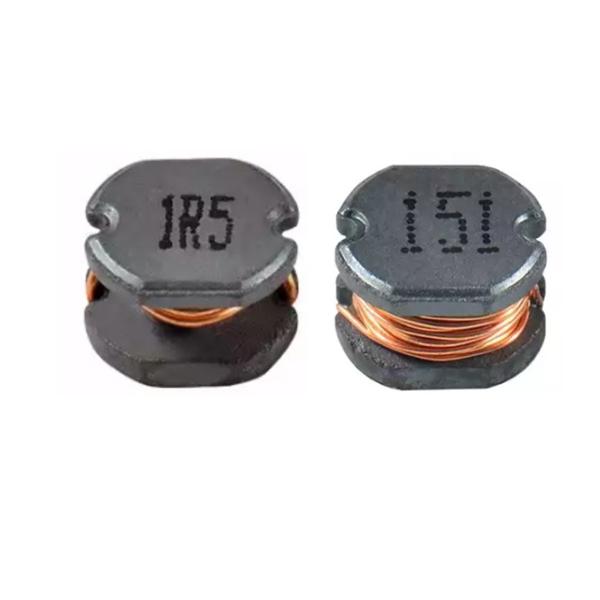

Chip Choke Inductors Inductor SMD Power Choke Inductors Big Size CD Series Power Inductor

Features:

• The use of magnetic iron powder ensure capability for large current
• Low audible core noise
• Ideal for DC-DC converter applications in hand held personal computer and etc
• Frequency Range: up to 3.0MHz
• Lowest DCR/uh in this package size
• Reliable quality

Applications:

• Telecomm base stations
• Notebooks, desktop computers, servers, graphic cards
• Portable gaming devices
• Notebooks, desktop computers, servers, graphic cards
• Personal navigation systems, personal multimedia devices

Specification:

Material:

Dimensions:

Specification:

Packaging Quantity(pcs)

Standard Packing Quantity:3000 pcs/reel

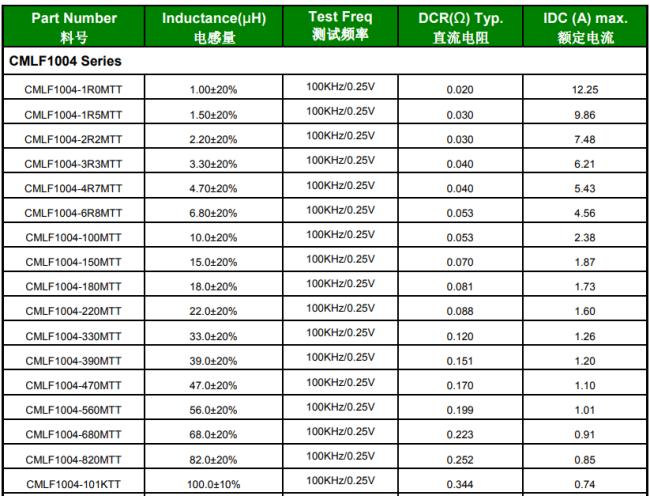

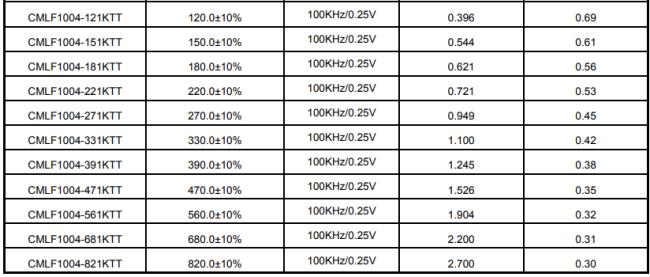

Electrical Characteristics

• Maximum allowable DC current is that which causes a 10% inductance reduction from the initial value,

          or coil temperature to rise by 40°C,whichever is smaller. (Reference ambient temperature 20°C).

• Operating temperature -55℃ ~ +125℃. (3) All test data is referenced to 25℃ ambient.

• DC current(A) that will cause an approximate of 40℃

RFQ:

• What are your main products?

          Our main products are: Power inductor,SMD inductor coil,NR inductor etc.

• Do you provide ODM and OEM?

          Yes, ODM and OEM are welcomed.

• Can you provide samples?

          Yes, we can provide samples for free.
