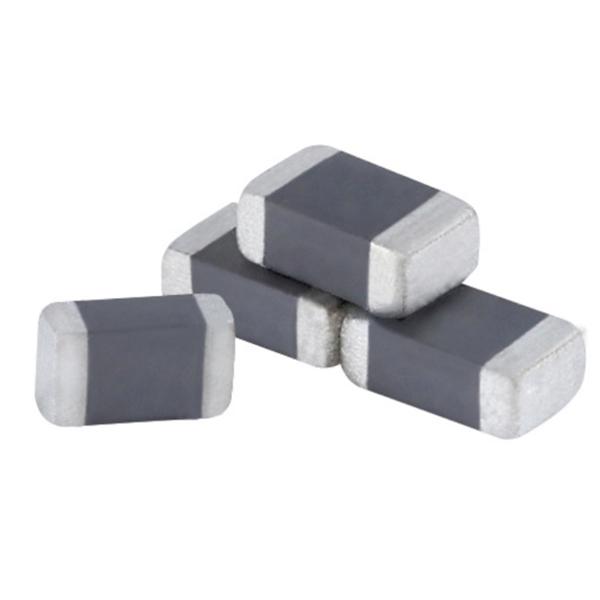

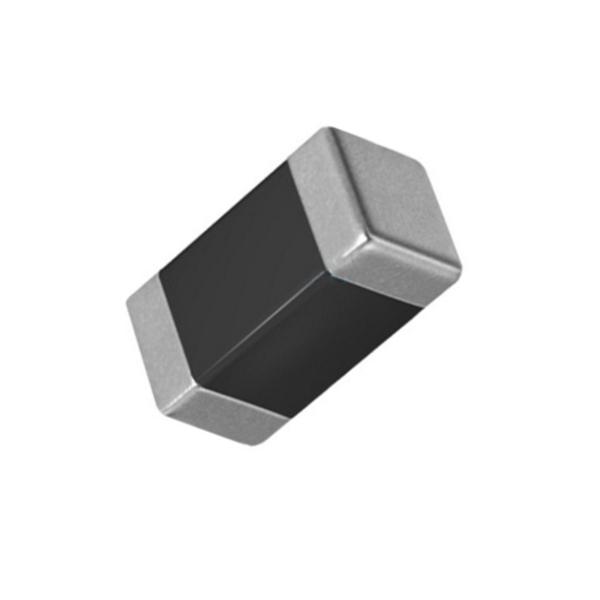

Power Multilayer Inductor 0805 10uH 650mA SMD High Current Inductors

• High DC bias current due to developed material.
• Low profile and thin thickness.
• Monolithic structure for high reliability.
• Excellent solderability and high heat resistance
• Low DC resistance.
• No cross coupling due to magnetic shield

Applications:

• Test Instruments DC-DC converter circuits for mobile phones,
• DSCs, DVCs, HDDs, PDAs, etc.

Material:

Specification:

Dimensions:

Specification:

Packaging:

Reel Label:

Producing the goods label needs to indicate(1)Pb Free (2)RoHS Compliant

Electrical Characteristics :

• Operating and storage temperature range (individual chip without packing): cking): -25℃ ~ +125℃
• Storage temperature range (packaging conditions): -10℃~+40℃ and RH 70% (Max.)

Note:

• Maximum allowable DC current is that which causes a 10% inductance reduction from the initial value,

    or coil temperature to rise by 40°C,whichever is smaller. (Reference ambient temperature 20°C).

• Operating temperature -55℃ ~ +125℃.
• All test data is referenced to 25℃ ambient.

RFQ:

• What are your main products?

          Our main products are: Power inductor,SMD inductor coil,NR inductor etc.

• Do you provide ODM and OEM?

          Yes, ODM and OEM are welcomed.

• How long does the sample lead time take?

          Sample delivery takes about 7-14 days.
