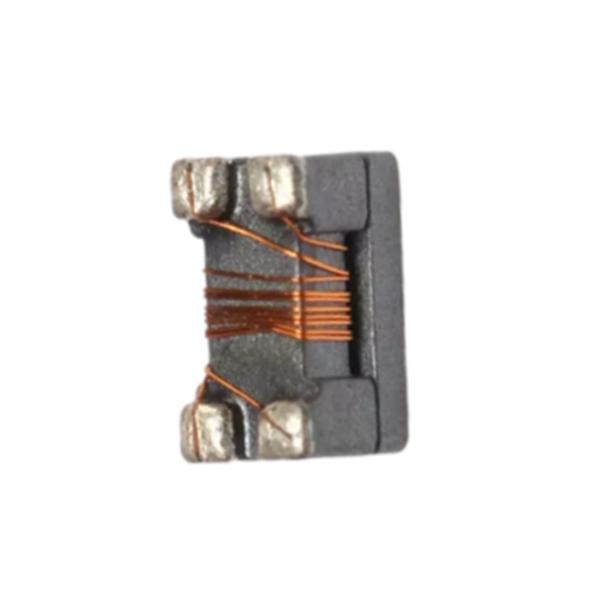

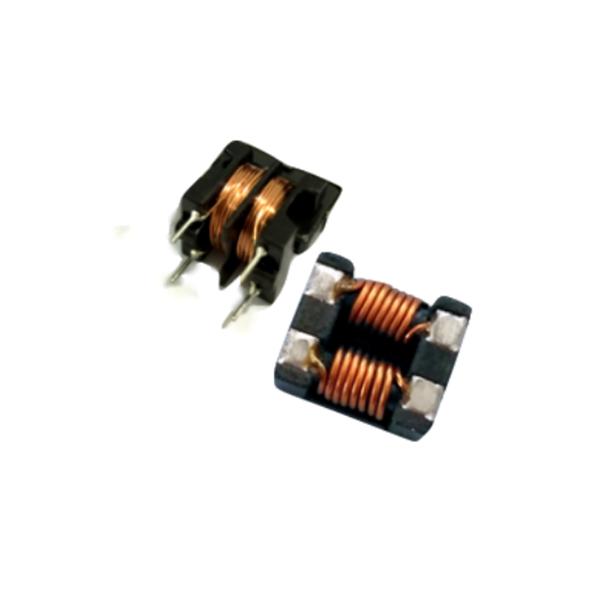

Surface Mount Common Mode Choke Common Mode Rf Choke For Automotive Systems

Features:

• Excellent solderability and high heat resistance
• Excellent terminal strength construction.
• Packed in embossed carrier tape and can be used by automatic mounting machine.
• Portable gaming devices, personal navigation systems, personal multimedia devices；
• Automotive systems;
• Telecomm base stations.

Applications:

• PConsumer Products
• Blue-ray disc recorders,
• Portable gaming devices, personal navigation systems, personal multimedia devices
• Automotive systems
• Portable gaming devices
• Set top box；

Specification:

Electrical Characteristics:

Reflow-profile:

Temperature Range:

• Operating and storage temperature range (individual chip without packing): cking): -25℃ ~ +125℃
• Storage temperature range (packaging conditions): -10℃~+40℃ and RH 70% (Max.)

Packaging and Marking:

• Carrier Tape Dimensions

​Packaging Quantity:

• Standard Packing Quantity:2500 pcs/bag

Note:

• Maximum allowable DC current is that which causes a 10% inductance reduction from the initial value, or coil temperature to rise by 40°C,whichever is smaller. (Reference ambient temperature 20°C).
• Operating temperature -55℃ ~ +125℃.
• All test data is referenced to 25℃ ambient.

FAQ:

• Can we customize?

         Yes, we specialize in providing customized services.

• Can you provide samples?

          Yes, we can provide samples for free.

• How long does the sample lead time take?

          Sample delivery takes about 7-14 days.
