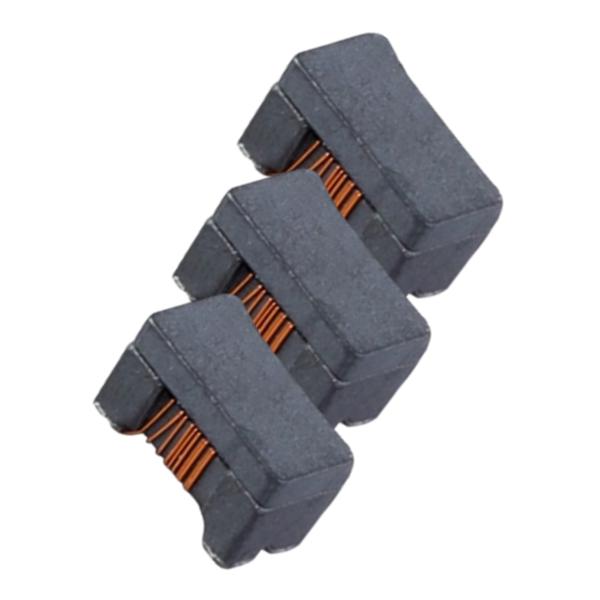

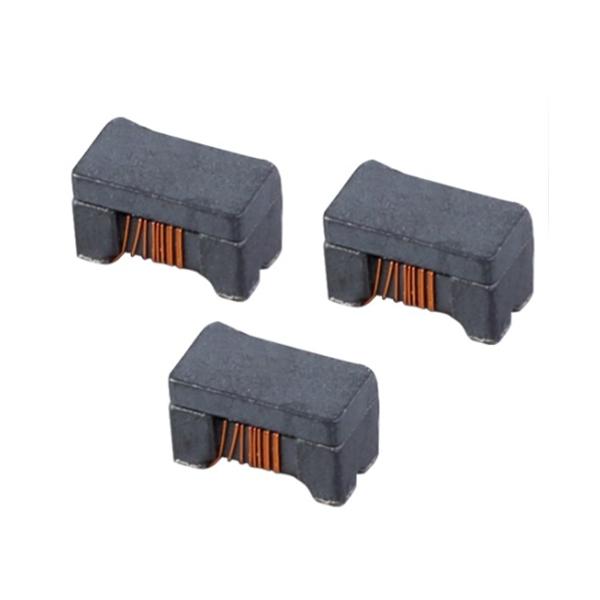

SMD Chip Wire Wound Power SMD Shielded Power Inductor For Consumer Products

Features:

• Small chip suitable for surface mounting；
• High Q value and high self-resonant frequency with ceramic material；
• Tight inductance tolerance and stable inductance； at high frequency；
• Magnetically shielded construction, low DC resistance；
• RoHS Compliant.

Application:

• High frequency circuit in telecommunication and other equipments；
• Mobile phones such as GSM, CDMA, PDC, etc；
• Personal navigation systems
• Mobile devices with multifunction such as adding color TV and camera

Specification:

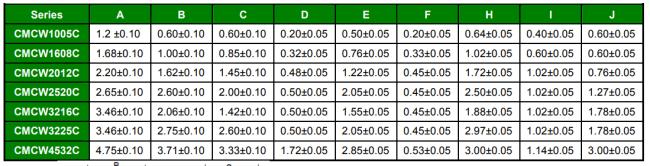

Shape and dimension(unit:mm)

Packaging Quantity:

Electrical Characteristics :

• Operating and storage temperature range (individual chip without packing): cking): -25℃ ~ +125℃
• Storage temperature range (packaging conditions): -10℃~+40℃ and RH 70% (Max.)

Note:

• Maximum allowable DC current is that which causes a 10% inductance reduction from the initial

​    value, or coil temperature to rise by 40°C,whichever is smaller. (Reference ambient temperature 20°C).

• Operating temperature -55℃ ~ +125℃.
• All test data is referenced to 25℃ ambient.

FAQ:

• How long will the delivery time take?

          Usually takes 14-21 days.

• What shipping method will you use?

          We can go by ship and UPS, DHL, etc., according to customer requirements

• How long does the sample lead time take?

          Sample delivery takes about 7-14 days.
