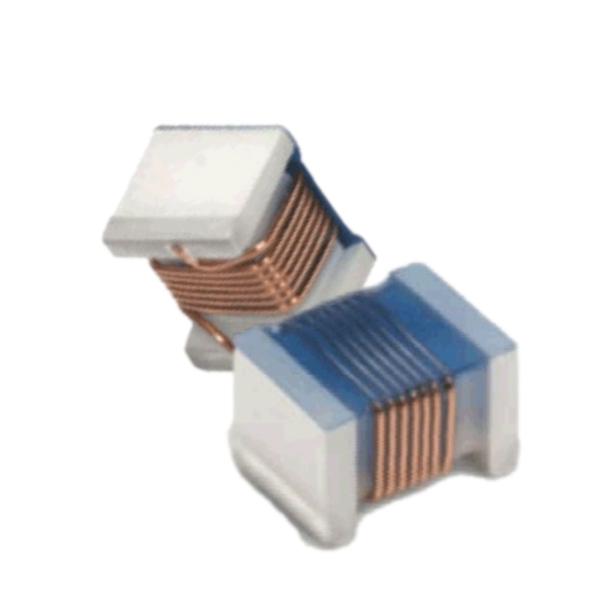

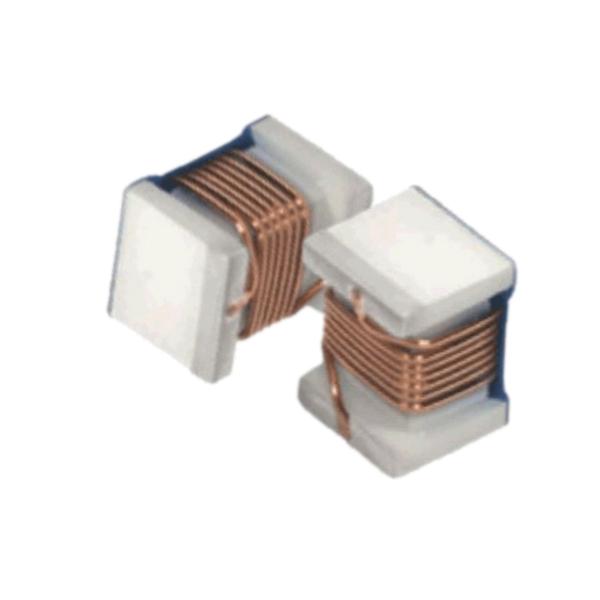

Wire Wound Chip Inductor SMD Shielded High Frequency Inductor For Communications Product

Features:

• Small chip suitable for surface mounting；
• High Q value and high self-resonant frequency with ceramic material；
• Low audible core noise
• Ideal for DC-DC converter applications in hand held personal computer and etc
• 100% lead(Pb)-free

Application:

• Communications product
• Notebooks, desktop computers, servers, graphic cards；
• Automotive systems；
• Mobile devices with multifunction such as adding color TV and camera

Specification:

Shape and dimension(unit:mm)

Packaging Quantity:

Electrical Characteristics :

• Operating and storage temperature range (individual chip without packing): cking): -25℃ ~ +125℃
• Storage temperature range (packaging conditions): -10℃~+40℃ and RH 70% (Max.)

Note:

• Maximum allowable DC current is that which causes a 10% inductance reduction from the initial

​    value, or coil temperature to rise by 40°C,whichever is smaller. (Reference ambient temperature 20°C).

• Operating temperature -55℃ ~ +125℃.
• All test data is referenced to 25℃ ambient.

FAQ:

• Can we customize?

          Yes, we specialize in providing customized services.

• Are you trading company or manufacturer?

          We are OEM/ODM manufacturer with our own factories.

• How do you ship the goods and how long does it take?

          We usually ship by DHL, UPS, FEDEX, and TNT. Sample LT is 3-7 days, order LT is 20 days.
