24V Locomotive Spare Parts LED Flood Work Lights IP65 Corrosion Resistant
Product overview
It is widely applied to the working platform of big railway maintenance/engineering locomotive, and mechanical operation room, locomotive under frame, partial lighting, and short distance large range auxiliary lighting demand working place, etc. With guard (protective net), to protect the light from the falling objects such as tools, screws, and stones, etc. suitable for outdoor application. LED COB big power chips, wider irradiating range, life could reach more than 2 years.
Product specification
| S.No. | Item | Value |
| 1 | Product Name | LED flood working light for locomotive |
| 2 | Model | GDF-20 |
| 3 | Rated voltage | DC24V, allowable range DC18-DC32V, other voltage is customizable |
| 4 | Working current | Constant current and power, voltage fluctuation will not affect the brightness |
| 5 | Ambient temperature | —40℃- +70℃ |
| 6 | Altitude & air pressure | Bellow 3000m, ＞70Kpa |
| 7 | Relative humidity | ≤95% (25℃) |
| 8 | Housing material | Aluminum die casting |
| 9 | Lens material | High strength tempered glass, corrosion resistance |
| 10 | Circuit board material | Thickened aluminum based board, good for heat radiation |
Product advantages
·Maintenance free
·Suitable for the long time operation under light
·Convenient for the lighting of different position
·Economical and practical

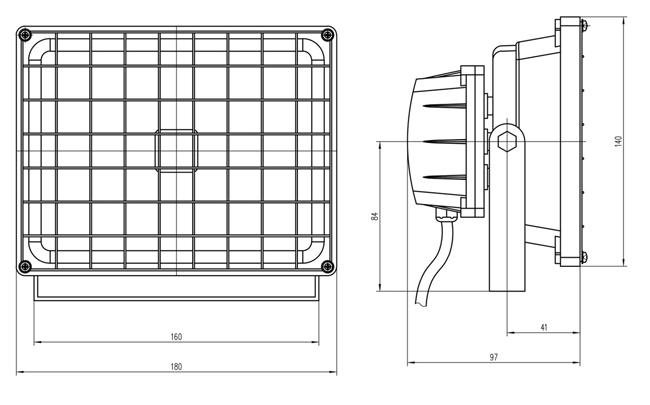

Product drawing

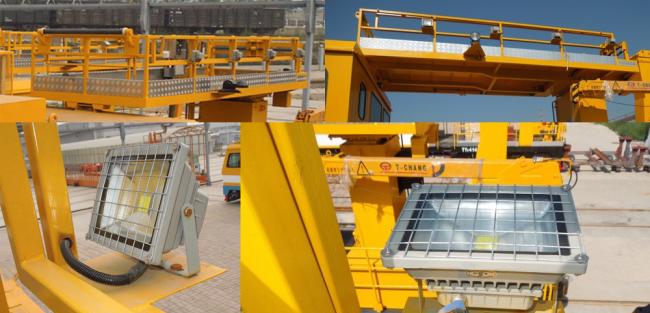

Product application
