50x900mm Locomotive Spare Parts Railway CRCC LED Tube Light 24V 17W High Brightness IP66
Railway Lighting High Brightness CRCC 24V 17W LED Tube Light
Product overview
The LED Tube Light is mainly mounted in power car generator room, working room, engine room, electric appliance room, car top or under frame, for the lighting of each room and outdoor.
The light main consists of LED light strip, constant power intelligent power unit, PC cover, frosted lamp shade, mounting clamp, wiring terminal and cable waterproof connector, etc.
Use China Railway Standard CRCC low smoke zero halogen, with insulation coat, outdoor weather resistance cable, suitable for long time working.
Tube uses high strength outdoor PC material, impact resistance, collision-resistant of falling objects such as stone, difficult to be broken.
Product specification
| S.No. | Item | Value |
| 1 | Product Name | LED tube light |
| 2 | Model | LED24-50E9B |
| 3 | Rated voltage | DC24V, allowable range DC18-DC32V, other voltage is customizable |
| 4 | Rated power | 17W |
| 5 | Ambient temperature | —40℃- +70℃ |
| 6 | Altitude & air pressure | Bellow 3000m, ＞70Kpa |
| 7 | Relative humidity | ≤95% (25℃) |
| 8 | Starting current | ＜0.8A |
| 9 | Insulation resistance | Between wiring terminal and housing ＞50MΩ |
| 10 | Illuminant | SMD high bright 2835 LED beads |
Product advantages
Higher brightness
Stable and reliable performance
Impact resistance, collision-resistant
Easy to install, convenient for wiring

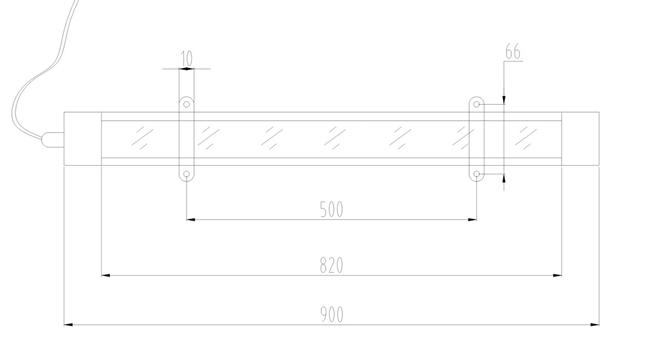

Product drawing

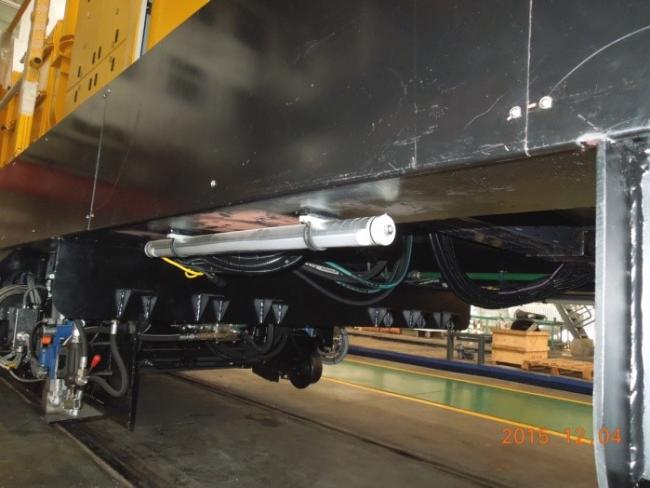

Product application
