2700kW Engine Diesel Locomotive Parts DL CKD9B Railway Spare Parts
Price:
negotiable
MOQ:
10pcs
Delivery Time:
15-50 days, depends on QTY
Brand:
HTR
Product Description
Diesel Locomotive DL CKD9B Spare Parts For New Zealand National Railway
Product overview

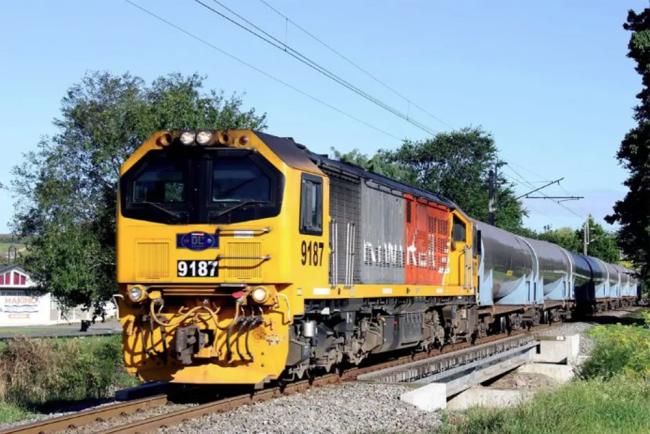

DL (CKD9B) diesel locomotive is a passenger and freight diesel locomotive specially developed for New Zealand. The locomotive is equipped with an MTU 20V4000R43 diesel engine with a loading power of 2700kW, a maximum starting traction of 370 kN, and a maximum running speed of 100 km/h. The locomotive adopts mature and reliable technologies such as AC-DC main drive and AC auxiliary drive. We can offer its spare parts.
Product Specification
| S.No. | Item | Value |
| 1 | Application | Carriage, wagon |
| 2 | Gauge | 1,069mm |
| 3 | Axle type | Co - Co |
| 4 | Axle weight | 18t(Max. +3%) |
| 5 | Locomotive weight | 108t(Max. +3%) |
| 6 | Diesel engine power loading | 2700kW |
| 7 | Maximum operating speed | 100km/h |
| 8 | Sustained speed | 28.8km/h |
| 9 | Maximum starting traction | 370 kN |
| 10 | Sustained traction | 269.2 Kn |
| 11 | Fuel volume | 4,800L |
| 12 | Oil capacity | 500kg |
| 13 | Cooling water capacity | 500kg |
| 14 | Coupler type | AAR E |
| 15 | Length of car body | 17,240mm |
