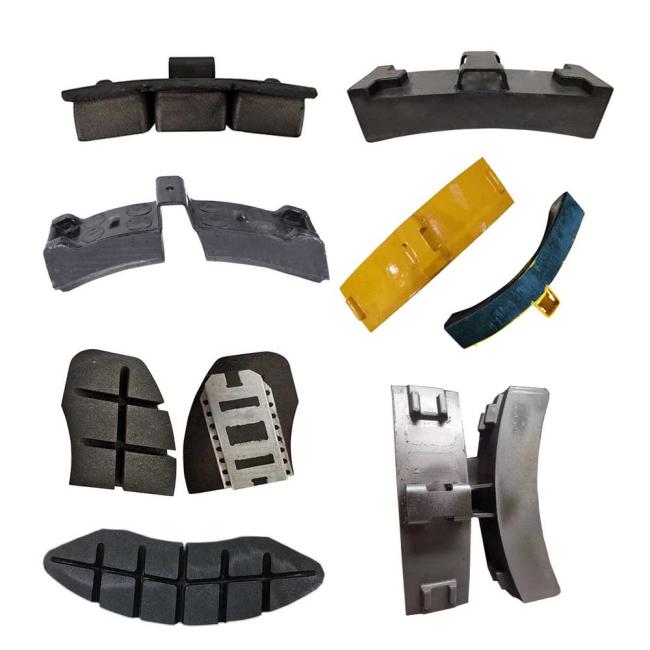

Powder Metallurgy Train Brake Block Low Friction Railway Brake Blocks
Product Overview
When the train is running and braking, the brake part that directly rubs the wheel to stop the train is the brake shoe; the tile shaped brake block made of cast iron,composite material or other materials holds the wheel tread tightly and makes the wheel stop rotating through friction.
Powder metallurgy materials are made by taking metal powder as matrix, properly adding friction agent, lubricant and other components, and pressing and controlled high-temperature sintering (900-1050 ℃).
According to the requirements of braking friction performance, powder metallurgy brake shoes are divided into low friction coefficient brake shoes, standard friction coefficient brake shoes and high friction coefficient brake shoes.
The brake shoe is composed of shoe back, steel back and friction body.
The pad back shall be made of steel plate with mechanical properties not lower than Q235.
The friction body is made of metal or its alloy as the matrix, added with other metal and non-metal components for friction, friction reduction or some special functions, and sintered with the steel back by powder metallurgy technology.
The brake shoe shall be free of asbestos, lead or its compounds and other materials that may endanger human health and may produce harmful gases, dust or compounds.
Product Specification
| Product Name | Locomotive powder metallurgy brake shoe |
| Material | Powder metallurgy brake shoe |
| Speed | ＜160km/h,160-200km/h |
| Dimensions | Customize |
| Production standard | TB/T 3005-2008 |
| Braking Force | High friction or low friction |
| Density(g/cm3) | Not more than ± 5% |
| Hardness(HBW10/1000) | ≤120 |
| Compressive strength(MPa) | ≥90 |
| Shear strength | ≥30 |
| Impact strength(kJ/m2) | ≥5 |
Advantage
- Customized according to customer requirements
- Friction property can be adjust according to requirement.
- Good wear resistance and long life span.
- Its no Crocidolite in Ironstone(asbestos).
- It contains no lead, zinc or any other toxic materials,
- it is environmental friendly, and causes no bad smell in friction.
Application
Locomotive brake shoe
Locomotive brake block
Related products
1. Cast iron brake shoe
Advantage
- Cast iron material is characterized by firmness and durability,
- low price,
- stability and good thermal conductivity.
- have high and stable friction coefficient,
- wear resistance,
- excellent thermal conductivity,
- good thermal cracking resistance,
- stable friction coefficient in snow weather environment
2. Powder treated brake shoe
Powder metallurgy brake shoe is made of metal or alloy as the matrix, added with friction, lubrication or other metals and nonmetals with some special functions, and made by powder metallurgy technology. Its quality is between high wear synthetic and cast iron brake shoes. It forms black powder after wearing with the locomotive wheel tread, which will not cause major damage to the locomotive wheel tread.
3. Railway brake pad
