Portable Mobile DC CHAdeMO CCS Combo Quick EV Charger 30KW With Display Screen
Price:
2980USD
MOQ:
1
Delivery Time:
7-14days
Brand:
Energy splendor
Product Description

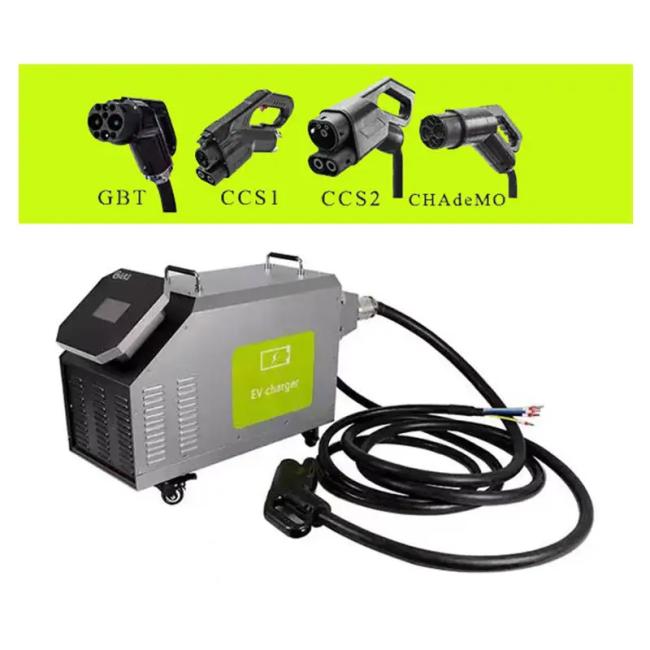

30KW Portable Mobile DC CHAdeMO CCS Combo Quick EV Charger With Display Screen
Specification
30kw portable charger
◆ The 30KW portable charger produced by our company, with input voltage of 380V, voice navigation, easy to use, rated output power
of 30KW, This product has the corresponding rainproof cover, which is specially customized for this type of charger. If necessary,
you can contact with the customer service.
◆By monitoring module, power module, lightning protection unit, intelligent and friendly interface, etc.
◆High performance charging module, super wide charging range, high efficiency.
◆ 4.3 inch display screen, the display screen will prompt the operation steps, intuitive and simple, beautiful and generous.
◆ Can also be customized production according to vehicle BMS parameters.
◆High efficiency:≥95%
Description
Starting with the case. It is not just a cloth bag as you often find. Thus is more like custom soft sided luggage. Nice tie downs, heavy zipper, a seoerate section for the manual, etc. Perfect for storing in your vehicle.
You can tell that this is made to withstand the elements. Even the 110v adapter is heavy duty with a distinct click when locked.
The output on this exceeds many wall mount units and most portable units. I have the 32 amp model, there is also a 40 amp. Many portables top out at 16. Even better, it is intelligent enough to automatically adjust to both the circuit it is plugged into and your vehicle's charging system. It will provide the fastest available charge at both level 1 and level 2.
The display is on the small side, but provides all of the info one needs. The vehicle plug is also top notch with a nice lock and release lever. It even has an attached rubber cover for when not in use.
There isn't much more to say other than the fact that this feels and perform as the best charger you can get aside from, of course, a Super Fast Charging Station, I'd recommend this in a heartbeat for anyone looking for a portable charging solution that feels sturdy and comes in a premium presentation and performance.
This is a great portable charger that still provides a 7kwh+ output, with a long and optional cable. The cable is flexible, and has a nice quality plastic housing, which should hold up well for many years.
Follow these steps for easy charging
1.Park the car at the charging point and turn off the engine.
2.Insert the Type 2 male plug end into the charger’s outlet socket. Be sure to push firmly so the pins can fully locked.
3.Insert the Type 1 (SAE J1772, 5 pins) female plug end into your car’s inlet socket. Be sure to push firmly so the pins can fully locked.
4.Lock your car and the cable if the car supports.
5.After charging is complete, remove the plug from the car firstly and then remove the male plug from the charging unit.
Why Choose us?
Our electric vehicle charging guides are a deep dive into all things EV. From how long it takes to charge an electric car to finding public charging stations on the road, we've got you covered. If you're looking at buying an electric car, you're going to need a Portable EV Charger. It's more convenient than having to rely on public charge points, and usually cheaper, too.
Specifications
| Product Name | DC Portable EV Charger |
| Power Input | 1-phase 230V土20% / 3-phase 400V土20% |
| Power Output | 7KW,15A / 15KW, 20A/20KW47.5A |
| Output Protection | Power output is terminated upon detection of charging connector plug-out |
| Electrical Protection | Over current, short circuit, over voltage, under voltage, ground fault, lightning surge, over temperature protection |
| Function & User Interface | |
| User Authentication | |
| Buttons/Switches | Configurable physical button |
| Working Altitude | 3000m |
| Display | LED |
| Protection Level | IP20 |
| Mechanical | |
| Charging Interface | SAE J1772 & Type-2 cable/ Type-2 socket |
| Mounting Type | Portable |
| Dimension (W x H x D) | 380x288x 141 mm |
| Regulation & Certification | |
| Certificate | CE, IEC61851-1 |
