22KW 44KW AC EV Charging Stations Fast Electric Car Charger For Commercial IEC 62196/SAE J1772
Best AC EV Charging Stations
Energysplendor ES-AF03 AC Ev Charging Stations supports Type1, Type2 and GB/T connectors and is compatible with a variety of electric vehicles. Whether you are a homeowner, business operator or utility service provider, the ES-AF03 charging station provides the best solution for your AC electric vehicle charging needs.
Fast and Efficient Charging
ES-AF03 AC Ev Charging Stations is a multi-functional charging pile that can be installed in a variety of scenarios. Whether you need to set up a charging station at home, in a commercial setting, or in a public facility, this charging station provides a flexible solution. It is particularly suited for those looking to install a 22KW or 44KW AC fast electric vehicle charging station. Whatever your specific requirements may be, Energysplendor can provide you with the best commercial AC EV charging station to meet your needs.
Why choose Energysplendor?
Anengji (Chengdu) New Energy Co., Ltd. attaches great importance to product quality and safety, and strictly controls quality before leaving the factory, so that you can use it with peace of mind. Contact us to experience our best Ac Ev Charging Stations and explore the road to green energy together.
Specification
| Model | ES-AF03-1 | ES-AF03-2 |
| Technical features | ||
| Charging capacity | 22kW | 44kW(22kW+22kW) |
| Input/output power | 400VAC±20%-50/60Hz- | 400VAC±20%-50/60Hz- |
| 32A-3 phase | 32A-3 phase | |
| leakage protector | 30Ma RCD Type A and DC 6Ma RCD feature or Type B (optional) | |
| Standby power | <3W | |
| measurement accuracy | 1% | |
| OCPP | OCPP1.6 Json (OCPP2.0 optional) is suitable for public chargers; | |
| communicate | WIFI / Ethernet / 4G (optional) | |
| user interface | LED / LCD(4.3″/7″) / RFID | |
| Certificates/Compliance | CE / EN/IEC 61851-1:2017,EN/IEC 61851-21-2:2018 | |
| Charging interface | Type 2 socket/5M cable | |
| special protection | Overcurrent protection, residual current protection, grounding protection, surge protection, overvoltage/undervoltage protection, over/underfrequency protection, over/undertemperature protection | |
| physical properties | ||
| Warranty | 2 years | |
| Protect | IP54 | |
| shell | A | |
| Install | floor-standing | |
| cool down | natural cooling | |
| Operating temperature | -30°C to +55°C | |
| humidity | Max.95% (non-adjustable) | |
| Product Size | 410*240*1400mm | 410*240*1400mm |
| Package Size | 510*360*1430mm | 510*360*1430mm |
| net weight | 42kg | 42kg |
| gross weight | 43kg | 43kg |

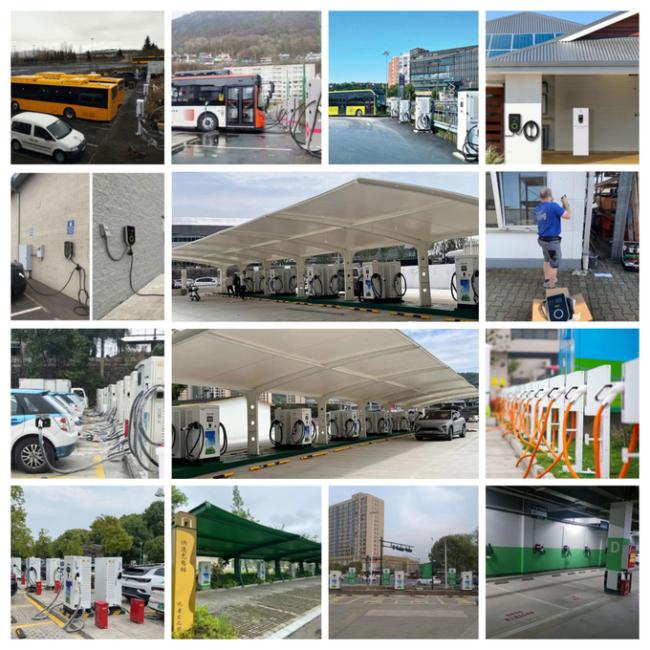

Application scenario display
The Best electric Car Charging Station products have been sold to dozens of countries, including the United Kingdom, France, Spain, and the United Arab Emirates, providing high-quality services to thousands of customers worldwide.

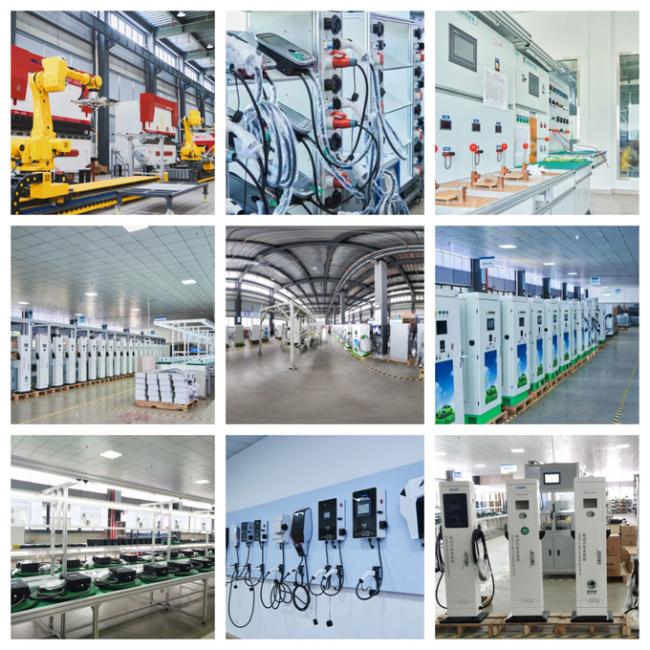

Factory Display
ANENGJI (CHENGDU) NEW ENERGY CO., LTD is engaged in the research, development, and manufacturing of charging station technology. As of now, the company has a range of products and technologies, including 7-44KW AC charging stations and 30-960KW DC charging stations that meet the requirements of Europe, the United States, Japan, the Middle East, and other countries. The company continues to invest in the research and development of cutting-edge technologies such as ultra-fast charging and vehicle-to-grid (V2G). The products have obtained dozens of patents as well as certifications including CE, TUV, CSA, and FCC.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
