OCPP1.6j Ethernet 4G WiFi 240kW Fast DC Charging Station CCS2 Connectors
OCPP1.6j Ethernet 4G WiFi Communication 240kWFast DC Charging Station CCS2 CCS2 Connectors for Public Charging
The OCPP1.6j Ethernet 4G WiFi Communication 240kW Fast DC Charging Station with CCS2 connectors is a cutting-edge electric vehicle charging solution designed for public charging locations. The charging station is equipped with CCS2 fast charging protocol, which is a standardized protocol used by most European and American automakers, making it compatible with a wide range of electric vehicles.
The charging station features OCPP1.6j support, which is an open-source communication protocol for electric vehicle charging stations that enables communication between charging stations, electric vehicles, and charging network operators. It is also equipped with Ethernet, 4G, and WiFi communication options, providing a variety of connectivity options for the charging station.
The charging station is capable of delivering a maximum power output of 240kW, which allows for ultra-fast charging of electric vehicles and reduces charging times significantly compared to standard charging options. This makes it an ideal solution for high-traffic areas such as highways, commercial parking lots, and urban charging stations.
The charging station is designed for easy installation, operation, and maintenance. It features an intuitive user interface and clear instructions for the user, making it easy to use for electric vehicle owners and operators. The station is also equipped with advanced safety features such as overvoltage protection, overcurrent protection, and short-circuit protection to ensure the safety of the vehicle and the user during the charging process.
Product feature
CCS2 fast charging protocol: The charging station is equipped with the CCS2 fast charging protocol, which is a standardized protocol used by most European and American automakers, making it compatible with a wide range of electric vehicles.
OCPP1.6j support: The charging station supports OCPP1.6j, which is an open-source communication protocol for electric vehicle charging stations that enables communication between charging stations, electric vehicles, and charging network operators.
Ethernet, 4G, and WiFi communication options: The charging station provides a variety of connectivity options, including Ethernet, 4G, and WiFi communication options, enabling seamless communication between the charging station, electric vehicles, and charging network operators.
High power output: The charging station is capable of delivering a maximum power output of 240kW, allowing for ultra-fast charging of electric vehicles.
Designed for public charging locations: The charging station is designed for public charging locations such as highways, commercial parking lots, and urban charging stations.
Easy to use: The charging station features an intuitive user interface and clear instructions for the user, making it easy to use for electric vehicle owners and operators.
Advanced safety features: The charging station is equipped with advanced safety features such as overvoltage protection, overcurrent protection, and short-circuit protection to ensure the safety of the vehicle and the user during the charging process.
Designed for easy installation and maintenance: The charging station is designed for easy installation and maintenance, with a modular design that allows for easy replacement of parts and components.
Specification
| Model | ES-AF14-1 | ES-AF-2 | ES-AF14-3 | |
| Detailed specifications | rated power | 60kW/80kW | 120kW/160kW | 180kW/240kW |
| Charging equipment | Installation method | Vertical | ||
| Wiring method | Bottom line in, bottom line out | |||
| Input voltage | AC380V±20% | |||
| Input frequency | 45-65Hz | |||
| The output voltage | 200-750VDC | |||
| Single gun output current range | Ordinary model 0-120A | Ordinary model 0-160A | Ordinary model 0-250A | |
| Constant power model 0-225A | Constant power model 0-250A | Constant power model 0-250A | ||
| Cable length | 5m | |||
| Measurement accuracy | 1.0 level | |||
| Electrical indicators | Current limit protection value | ≥110% | ||
| Stabilization accuracy | ≤±0.5% | |||
| Steady flow accuracy | ≤±1% | |||
| Ripple factor | ≤±0.5% | |||
| effectiveness | ≥94.5% | |||
| Power factor | ≥0.99 (above 50% load) | |||
| Harmonic content THD | ≤5% (above 50% load) | |||
| Feature design | HMI | 7-inch bright color touch screen | ||
| Charging mode | Automatic full charge / fixed power / fixed amount / fixed time | |||

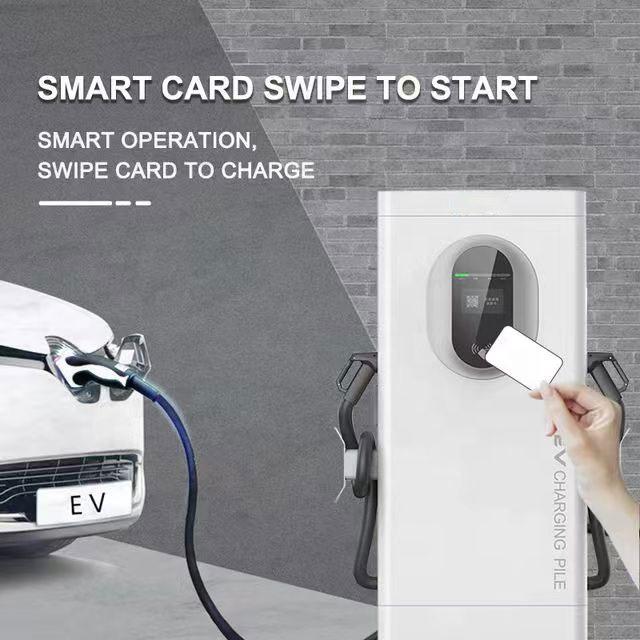

| charging method | Charging by swiping/charging by scanning code/charging by password | |||
| payment method | Credit card payment/scan code payment/password charging | |||
| Networking method | Ethernet/4G | |||
| Safe design | Executive standard | IEC 61851-1:2017,ICE 62196-2:2016 | ||
| security function | Charge gun temperature detection, overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, over temperature protection, low temperature protection, insulation monitoring protection, polarity reverse protection, lightning protection, emergency stop protection, leakage protection | |||
| Environmental indicators | Operating temperature | -25℃~+50℃ | ||
| Working humidity | 5%~95% non-condensing frost | |||
| Working altitude | <2000m | |||
| Protection level | IP54 | |||
| cooling method | Air-cooled | |||
| Noise control | ≤60dB | |||
| MTBF | 100,000 hours | |||
| Dimensions | Product Dimensions | 1050*760*1900mm | 1050*760*1900mm | 1050*760*1900mm |
| Package Dimension | 1750*1060*2000mm | 1750*1060*2000mm | 1750*1060*2000mm | |
| Net Weight | 210KG|220KG | 330KG|360KG | 390KG|450KG | |
| Gross Weight | 218KG|228KG | 338KG|368KG | 398KG|458KG | |

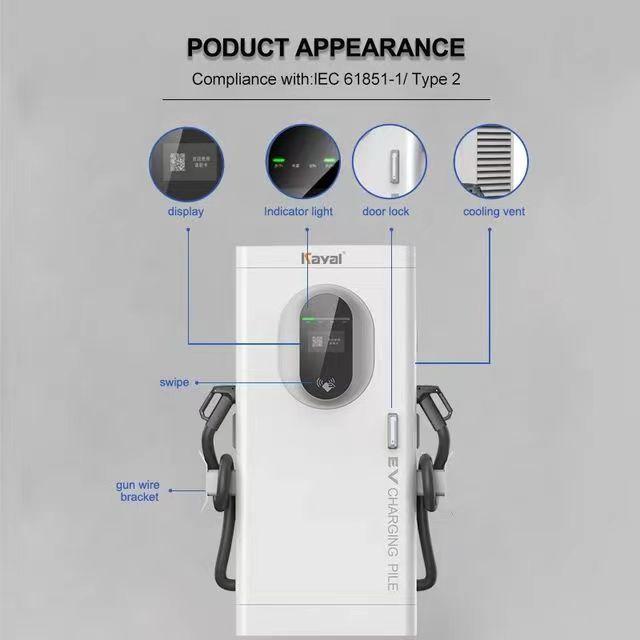

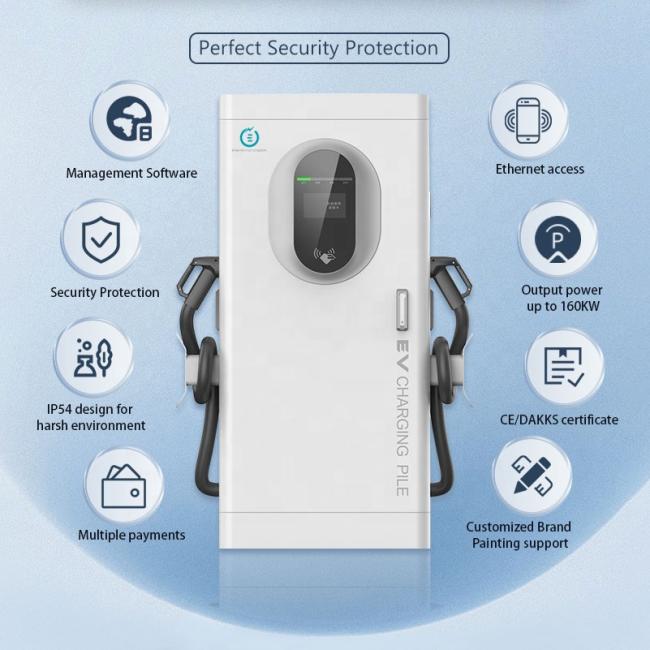

Product Display
