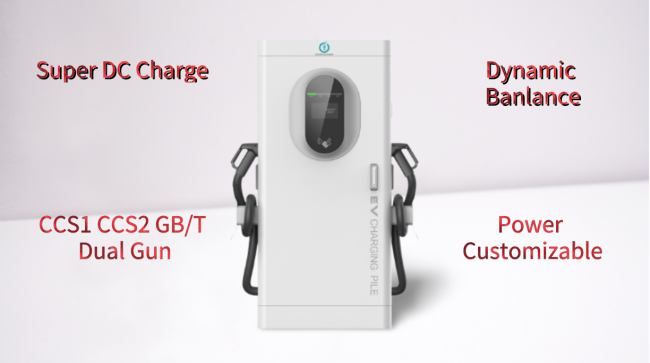

DC CCS GBT CHAdemo Fast Charging Station Dual Gun For Electricity Vehicle
Best Selling Series DC CCS GBT CHAdemo Fast Charging Station Dual Gun For Electricity Vehicle
PRODUCT PARAMETER
Introducing our state-of-the-art Direct Current (DC) Electricity Vehicle (EV) Charging Stations for new energy automobiles! Engineered with the latest technology, our charging stations provide fast, safe, and convenient charging solutions for all types of electric vehicles. With a robust design and user-friendly interface, our chargers offer a seamless experience for EV owner, ensuring that their vehicles are always ready for the road ahead.
DATASHEET
| Product | Integrated Dc Chariging Station |
| Type | 120KW 160KW 180KW |
| Dimensions | 720*557*1700 (mm) |
| HCI(Human-computer intersaction) | 7 inch touch screen |
| AC power | 380Vac+15%;50HZ+10%;L1+L2+L3+N+PE |
| Rating Current | 250-280A |
| Power Output Rating | 120KW 160KW 180KW |
| Environmental | Elevation: ≤2000m; Temperature: -20°C~+50°C; |
| Charging Mode | Swipe card, Scan code |
| Networking Mode | 4G,Wifi,Bluetooth,Ethernet |
| Operating Pattern | noncharge offline,charge offline, charge online |

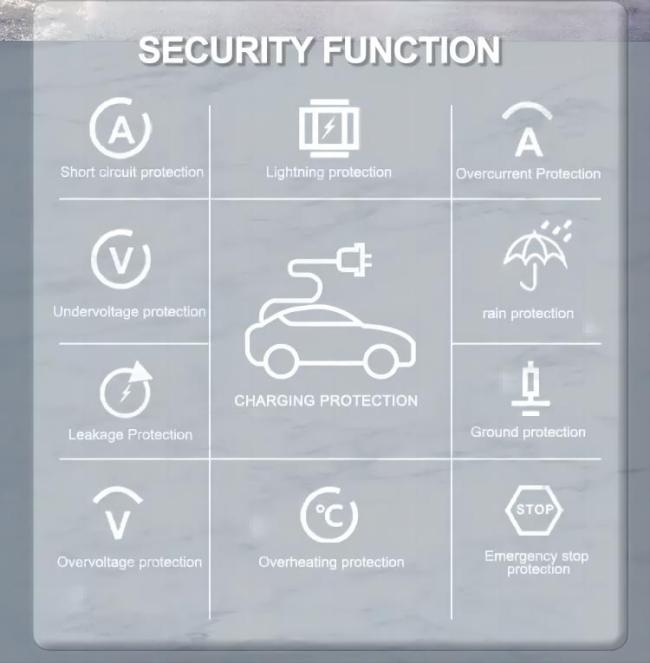

| Protection Function | Over voltge; under voltage; over load; short circuit; earth leakage; ground protection surge protection, etc. |
| Connector Type | CCS1, CCS2,CHAdeMO, GB/T |

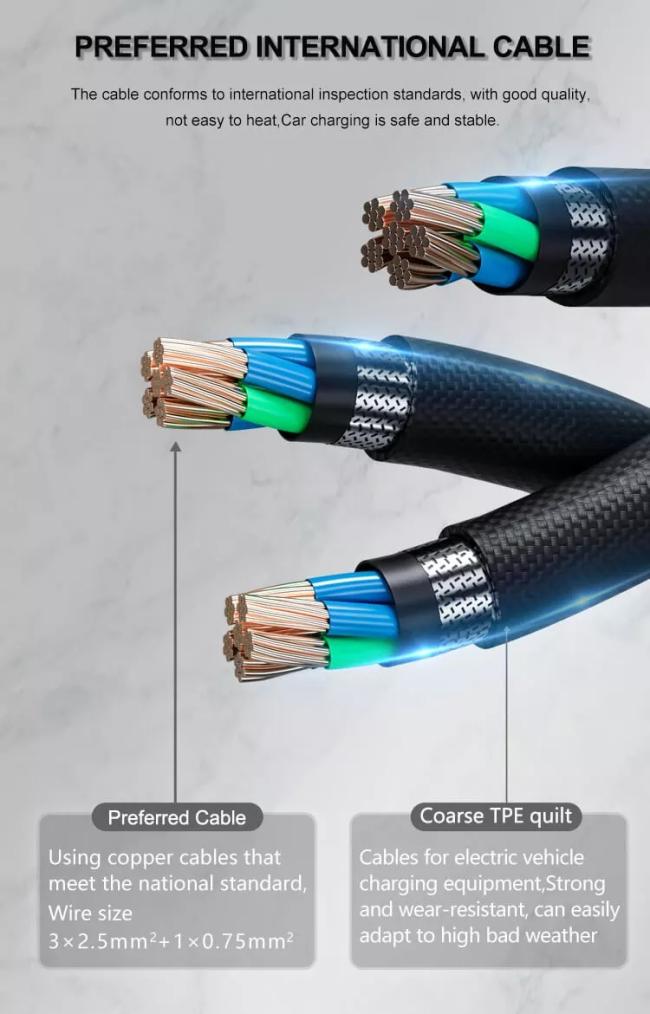

| Charging Cable Length | 5m(customizable) |
| Protection Grade | Ip54 |
PRODUCTS PICTURES
Customer Service
1.We can provide customers with professional product advice and purchase options.
2. All emails will be responded within 24 hours during working days.
3. All customers will get one-on-one service.
Delivery Time
1.Samples or test orders can be delivered within 2-5 working days.
2.Orders in standard products above 100pcs could be delivered within 7-15 working days.
3.Orders that require customization could be produced within 20-30 working days.
Customized Service OEM&ODM
1.We provide flexible customized services with our abundant experiences in kinds of OEM and ODM projects.
2.OEM includes color, length, logo, packaging, etc.
3.ODM includes product appearance design, function setting, new product development, etc.
4.MOQ is depend on different customized requests.
After Sale Service
1.The warranty of all our products is one year. The specific after-sale plan will be free for replacement or charging a certain maintenance cost according to the specific situations.
2.However, according to the feedback from markets, we seldom have after-sale problems because strict product inspections are carried out before leaving the factory.
