Fast EV DC Floor Mounted Commercial Charging Station 60KW 100KW 120KW 160KW
60KW 80KW 100KW 120KW 160KW Fast EV DC Floor Mounted Commercial Charging Station
Our advanced DC Charging stations are designed to cater to the growing demands of the new energy automotive industry. Boasting impressive charging speeds, our chargers can replenish an EV's battery in a fraction of the time compared to conventional charging methods. Moreover, our stations are equipped with intelligent process that optimizes the charging processbased on the vehicle's requirements, ensuring optimal battery health and longevity.
Safety is paramount in our DC EV Charging Stations. Our chargers are built with multiple layers of protection, including overvoltage, overcurrent, and short circuit protection. Additionally, our stations are weather-resistant and feature an emergence stop button for added safety. We take pride in offering a reliable and secure charging solution for EV owners, giving them peace of mind while they recharge their vehicles.
DATASHEET
| Product | Integrated Dc Chariging Station |
| Type | 120KW 160KW 180KW |
| Dimensions | 720*557*1700 (mm) |
| HCI(Human-computer intersaction) | 7 inch touch screen |
| AC power | 380Vac+15%;50HZ+10%;L1+L2+L3+N+PE |
| Rating Current | 250-280A |
| Power Output Rating | 120KW 160KW 180KW |
| Environmental | Elevation: ≤2000m; Temperature: -20°C~+50°C; |
| Charging Mode | Swipe card, Scan code |
| Networking Mode | 4G,Wifi,Bluetooth,Ethernet |
| Operating Pattern | noncharge offline,charge offline, charge online |
| Protection Function | Over voltge; under voltage; over load; short circuit; earth leakage; ground protection surge protection, etc. |
| Connector Type | CCS1, CCS2,CHAdeMO, GB/T |

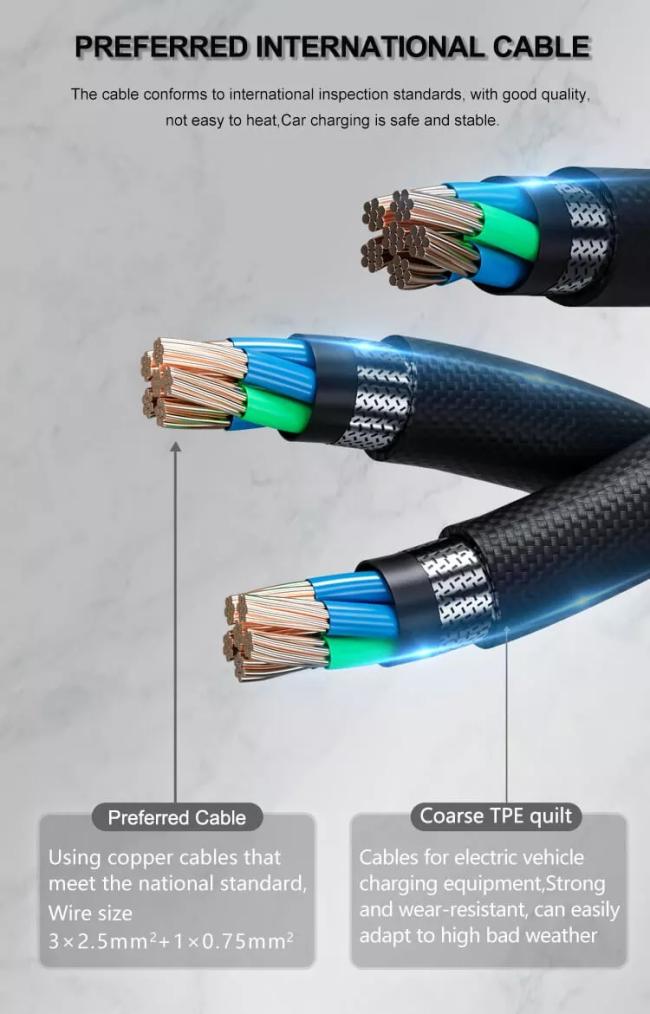

| Charging Cable Length | 5m(customizable) |
| Protection Grade | Ip54 |

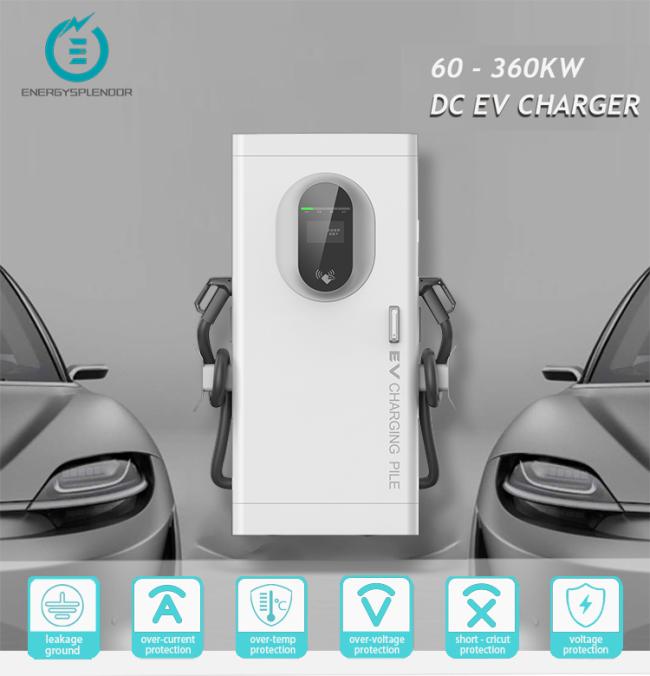

PRODUCTS PICTURES
