Dc Fast EV Charging Station 160KW 180KW With CCS1 CCS2 Connector
Fast EV Charging Station Dc Ev Charger Station 160KW 180KW With CCS1 CCS2 Connector
Best Dc Ev Charger Station
180KW Fast EV Charging Station
Product Details
| Model | ES-AF-13-1 | ES-AF-13-2 | ||
| Detailed specifications | rated power | 160kW | 180kW | |
| Charging equipment | Installation method | Vertical | ||
| Wiring method | Go down | |||
| Input voltage | AC380V±20% | |||
| Input frequency | 45-65Hz | |||
| The output voltage | 200-1000VDC | |||
| Single gun output current range | 200V-1000VConstant power | 200V-1000VConstant power | ||
| 0-250A | 0-280A | |||
| Cable length | 5m | |||
| Measurement accuracy | 1.0 level | |||
| Electrical indicators | Current limit protection value | ≥110% | ||
| Stabilization accuracy | ≤±0.5% | |||
| Steady flow accuracy | ≤±1% | |||
| Ripple factor | ≤±0.5% | |||
| effectiveness | ≥94.5% | |||
| Power factor | ≥0.99 (above 50% load) | |||
| Harmonic content THD | ≤5% (above 50% load) | |||
| Feature design | HMI | 7-inch bright color touch screen | ||
| Charging mode | Automatic full charge / fixed power / fixed amount / fixed time | |||
| charging method | Charging by swiping/charging by scanning code/charging by password | |||
| payment method | Credit card payment/scan code payment/password charging | |||
| Networking method | Ethernet/4G | |||
| Safe design | Executive standard | IEC 61851-1:2017,ICE 62196-2:2016,SAE J1772 | ||
| security function | Charge gun temperature detection, overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, over temperature protection, low temperature protection, insulation monitoring protection, polarity reverse protection, lightning protection, emergency stop protection, leakage protection | |||
| Environmental indicators | Operating temperature | -25℃~+50℃ | ||
| Working humidity | 5%~95% non-condensing frost | |||
| Working altitude | <2000m | |||
| Protection level | IP54 | |||
| cooling method | Air-cooled | |||
| Noise control | ≤60dB | |||
| MTBF | 100,000hours | |||

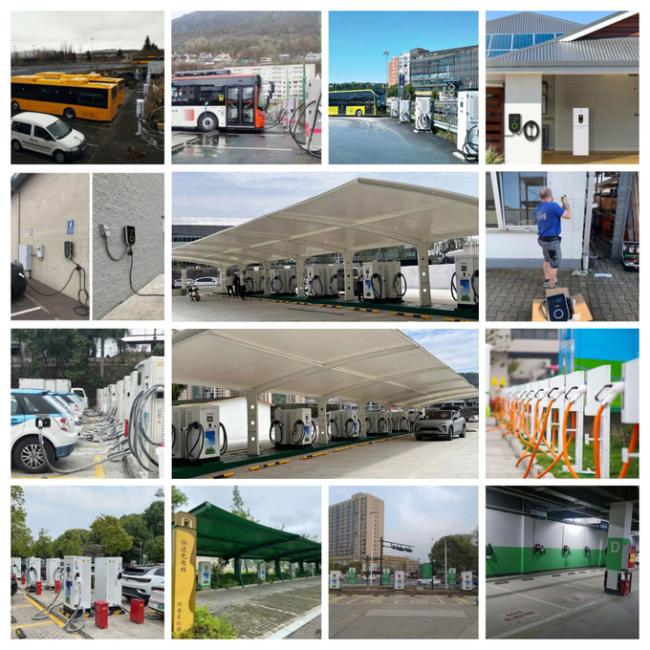

Application scenario display
The Best electric Car Charging Station products have been sold to dozens of countries, including the United Kingdom, France, Spain, and the United Arab Emirates, providing high-quality services to thousands of customers worldwide.

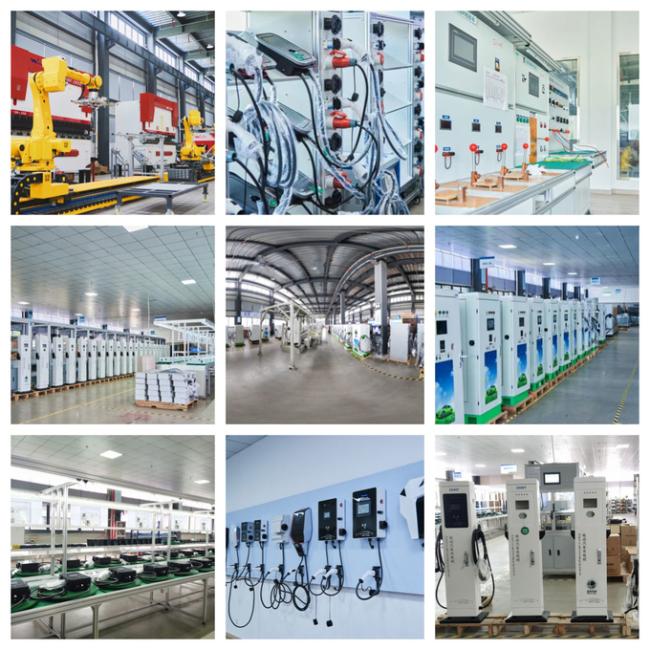

Factory Display
ANENGJI (CHENGDU) NEW ENERGY CO., LTD is engaged in the research, development, and manufacturing of charging station technology. As of now, the company has a range of products and technologies, including 7-44KW AC charging stations and 30-960KW DC charging stations that meet the requirements of Europe, the United States, Japan, the Middle East, and other countries. The company continues to invest in the research and development of cutting-edge technologies such as ultra-fast charging and vehicle-to-grid (V2G). The products have obtained dozens of patents as well as certifications including CE, TUV, CSA, and FCC.
