SAE J1772 IEC 62196 11kw 3 Phase Floor Mounted Ev Charger With WiFi OCPP
Wifi SAE J1772 IEC 62196 Charging Ocpp Type 2 11kw Electric Vehicle Charger 3 Phase Electric Car Charging Station
Charging Stations AC 11kw 22kw EV Car Charging Station with WiFi OCPP
The 22kW EV Charging Station is an electric vehicle charger that charges any EV up to 32 amps with hardwired installation. It comes with a cable with an SAE J1772/IEC 62196 connector so it works with all electric cars. Its IP Grade is made to withstand the elements outdoors.
Features and Benefits:
CE certified ev charger. default charge rate is 32A. WiFi Internet connection is required to raise or lower charge rate.
CE listed with your safety in mind. Manufactured to meet the safety criteria defined by these international standards. Your charger will be safe from the elements with a rugged watertight enclosure. Check with your local utility company to see if there are incentives and rebates in your area. Protected by a 2-year warranty.
Compatible with any EV. The charger comes with a SAE J1772 or IEC 62196 connector and a 24' cable with integrated cable management.
Real-time energy data: requires 2.4 GHZ WiFi with an internet connection to monitor energy use and charging sessions with iPhone / Android / Web Browser app. Schedule charging with app. Easily manage the parameters to handle variable utility rate charges.
Specification:
| Product | 11 KW AC Charging Station | |
| Type | AC-11KW | |
| Dimensions | 500*350*130 | |
| HCI(Human-computer intersaction) | 4.3inch display screen | |
| AC power | 380Vac±20% ; 50Hz±10% ; L+N+PE | |
| Rating Current | 32A | |
| Power Output Rating | 22kW | |
| Evironmental | Altitude:≤2000m； Temperature:-20℃~+50℃ | |
| Charging Mode | Swipe card; scan to pay | |
| Networking Mode | 2G,4G,Wifi,mini progam | |
| Operating Pattern | noncharge offline,charge offline, charge online | |
| Protection Function | Over voltge; under voltage; over load; short circuit; earth leakage; ground protection surge protection, etc. | |
| Connector Type | SAE J1772(Type 1)/IEC 62196-2(Type 2) | |
| Charging Cable Length | 5m(customizable) | |
| Protection Grade | Ip54 | |
| Installation | installation wall mount;Pedestal mounted,need relevent Accessories | |
CAUTION:
1. Don't submerge the ev charging box in water;
2. Don't step on, fold or knot the cable;
3. Don't drop the EV charging box or place a heavy object on it;
4. Don't place the charging cable near high temperature object when charging；
5. Don't operate the EVSE in temperatures beyond its operating range of -25°C to 55°C；
6. Power-supply side input cable should be at least 3*6mm, with a standard 32A socket；
It is suggested that the power distribution is done by the professionals；
7. Don't put fingers into the charging connector when the power plug is still connecting to the
power;
8. Don't use this EV charging box when the cable is damaged;
9. The ev charging box is only for ev charging using;
10. Don't use this device with an extension cord or adaptor.

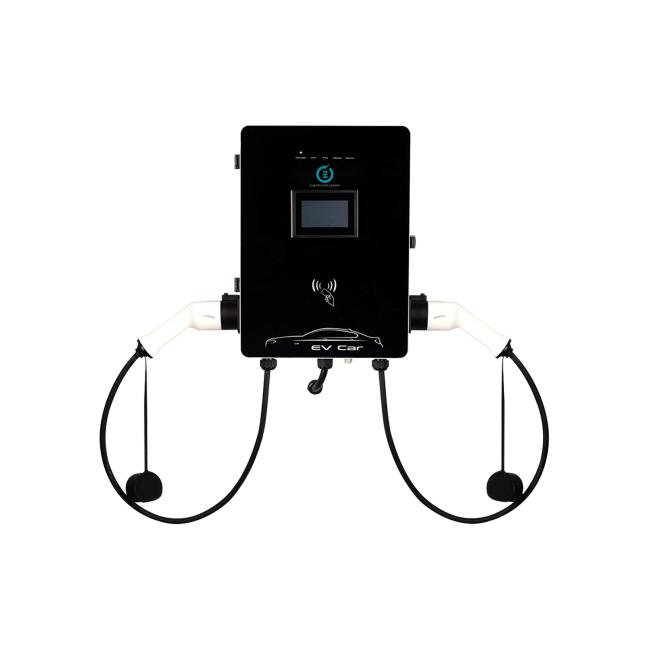

Product Display:
