Dual Gun 120kW CCS2 Commercial DC EV Charging Station OCPP 1.6
Electric Vehicle DC 120kW Dual Gun EV Charger OCPP1.6 For Commercial Use
120kW CCS2 EV DC Charging Outdoor
Products Description:
ES-DC120kW is suitable for all kinds of new energy vehicles on the market. Applicable to a variety of electric vehicles, electric buses, forklift, golf cart, sightseeing car, tractor, etc.It is easy to install, stable in performance, and provides complete protection function. The LCD display can show the charging status, user friendly. It supports GSM/3G/4G/Ethernet communication with party system for remote monitoring/maintain/upgrade. The charger can optionally equip with a column support installed outdoors.
The power modules are sealed by full glue filling process. Which has the advantages of good protection, reduced maintenance, anti-interference, anti-corrosion, etc.
The shell is sprayed twice with powder, which is anti-corrosion, anti-fading, solvent-free, pollution-free, recyclable, environmentally friendly, energy-saving, non-toxic and non-polluting.
Charging gun temperature detection. Real-time detection of charging gun temperature. When the temperature is too high, it will automatically stop charging.
Ingress protection IP54. You can use the item outdoor and do not have to worry even in rainy days. The shell is made of ABS, light but robust, so it will note be easily damaged. You can add a lock at the bottom of the station to prevent lost.
Feature:
1.Speed charging with up to 300 Km/h!
2.The CHR-50S quick-charging station was developed for electric vehicles with CHAdeMO or CCS Combo DC charging sockets and is
designed for commercial use.
3.It is compatible with all popular industrial sockets and can be used with CEE125 plug sockets.
4.This charger is internet connected via OCPP client and server.
5.RFID card,Paypal,credit card payment systems supported (need Wi-fi or 4G).
6.With 7 inch touching display screen panel.
Specification:
| Product | Integrated DC Chariging Station | |
| Type | DC-120KW | |
| Dimensions | 720*557*1700(mm) | |
| HMI(Human Machine Interface) | 7 inch touch screen | |
| AC Power | 380Vac±15% ; 50Hz±10% ; L1+L2+L3+N+PE | |
| Output Voltage | 150-1000VDC | |
| Output Current | CCS: 0 – 200A, CHAdeMO: 0 – 125A,3-phase 32A max | |
| Rating Current | 250-280A | |
| Output Power | 120KW | |
| Efficiency | ≥ 94% | |
| Power factor | ≥ 0.99 | |
| Work Condition | Elevation: ≤2000m; Temperature: -20°C~+50°C; | |
| Working humidity | 5% ~ 95% without condensation | |
| Charging Mode | Swipe card, scan code | |
| Networking Mode | Ethernet, 4G, wifi,mini program | |
| Operating Pattern | noncharge offline,charge offline, charge online | |
| Protection Function | Over voltge; under voltage; over load; short circuit; earth leakage; ground protection surge protection, etc. | |
| Charging standards | CCS-1/2, CHAdeMO | |
| Charging Cable Length | 5m (customizable) | |
| Protection Grade | Ip54 | |
Security Function:
Charge gun temperature detection,
overvoltage protection,
undervoltage protection,
overload protection,
short circuit protection,
grounding protection,
over temperature protection,
low temperature protection,
insulation monitoring protection,
polarity reverse connection protection,
lightning protection,
emergency stop protection,
leakage protection

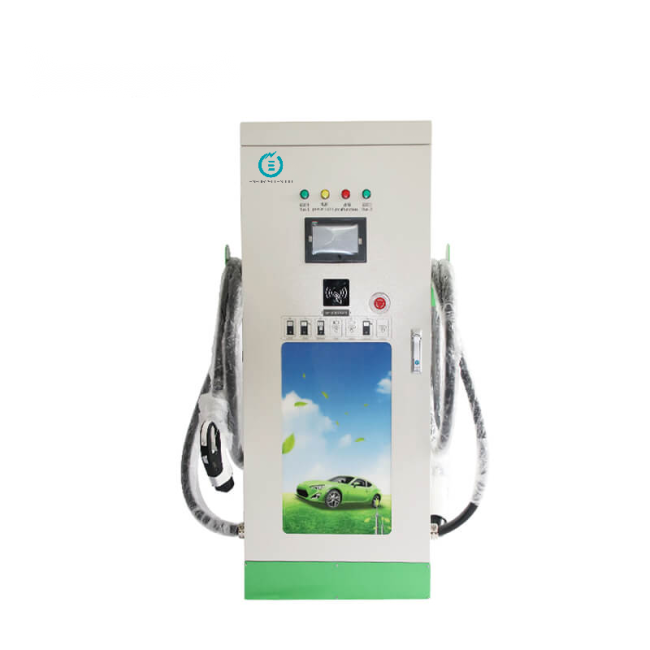

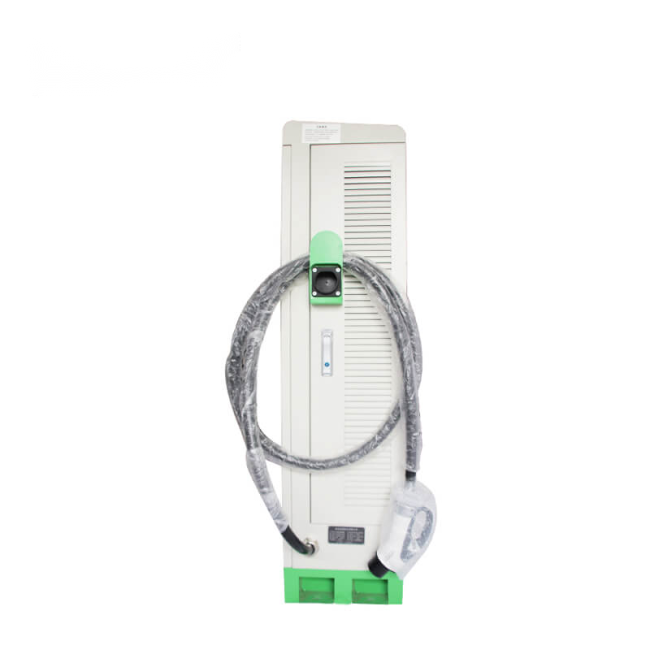

Product Display:
If you are interested in our product, never hesitated to contact us!
