DC 180KW Scan Code Type 1 EVSE Charging Station With OCPP IP54
Type 2 Type1 EV Charging Station 120kW Electric Vehicle with OCPP
Type 2 Type1 EV Charging Station 120kW Electric Vehicle with OCPP
Products Description:

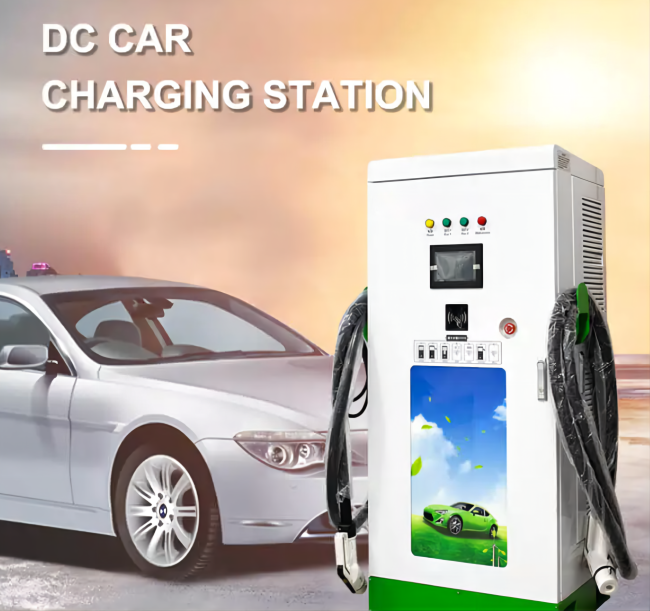

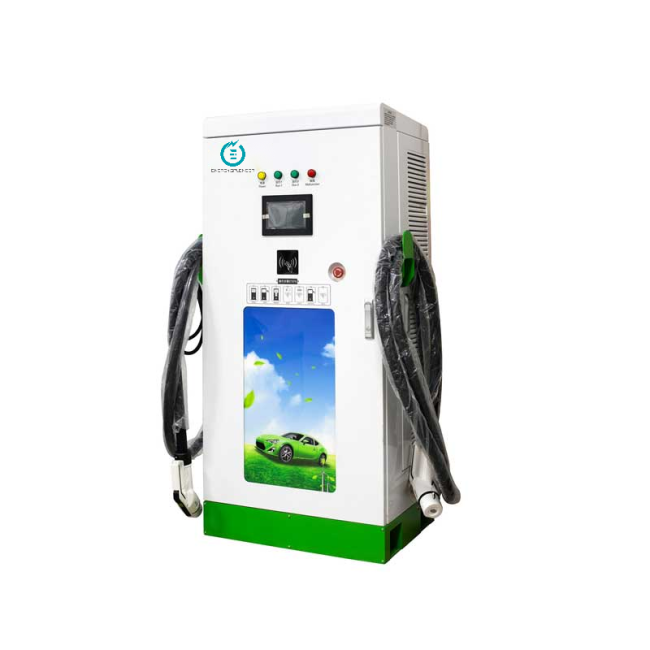

DC Fast EV Charging Station,which meets the European charging standards for new energy electric vehicles. Power control, charging management, network communication and other customized functions, all in one device.
This series of products have three phase type and are equipped with floor-mounted installation modes. The product has integrated charging interface, HMI, communication, billing system together aims to achieve a higher safety, stronger adaptability and more convenient operation. With waterproof, dustproof, anti-corrosion functions. Streamline design adopted in the charger appearance makes users feel more comfortable.
Specification:
| Product | Integrated DC Chariging Station | |
| Type | DC-180KW | |
| Dimensions | 720*557*1700(mm) | |
| HMI(Human Machine Interface) | 7 inch touch screen | |
| AC Power | 380Vac±15% ; 50Hz±10% ; L1+L2+L3+N+PE | |
| Output Voltage | 150-1000VDC | |
| Output Current | CCS: 0 – 200A, CHAdeMO: 0 – 125A,3-phase 32A max | |
| Rating Current | 250-280A | |
| Output Power | 180KW | |
| Efficiency | ≥ 94% | |
| Power factor | ≥ 0.99 | |
| Work Condition | Elevation: ≤2000m; Temperature: -20°C~+50°C; | |
| Working humidity | 5% ~ 95% without condensation | |
| Charging Mode | Swipe card, scan code | |
| Networking Mode | Ethernet, 4G, wifi,mini program | |
| Operating Pattern | noncharge offline,charge offline, charge online | |
| Protection Function | Over voltge; under voltage; over load; short circuit; earth leakage; ground protection surge protection, etc. | |
| Charging standards | CCS-1/2, CHAdeMO | |
| Charging Cable Length | 5m (customizable) | |
| Protection Grade | Ip54 | |
1 simple operation,convenient installations
2 High efficiency,reliable and stable performance
3 Friendly interaction interface,7 inches color touch screen
4 Support multiple modes of charging, operation management and payment
5 Support 3G/4G,Ethernet or wireless communication
6 Support RFID Card/OCPP1.6
7 Support CCS2/CHAdeMO connector or socket
8 Support online data upgrade
In the context of EV charging, load balancing management refers to optimizing a property's charging loads so that:
1. a) electricity is evenly distributed to all the electric vehicles that are charged simultaneously
2. b) charging at a full volume whenever there's enough capacity.
A: Connect the EV Charger online via Ethernet/Wi-Fi/4G
B: Connect the VPOS to the EV Charger
C: Connect the Parking barrier to the EV Charger
Security Function:Charge gun temperature detection, overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, over temperature protection, low temperature protection, insulation monitoring protection, polarity reverse connection protection, lightning protection, emergency stop protection, leakage protection
If you are interested in our product, never hesitated to contact us!
