In-Stock Supply 186F Engine 4 Stroke Silent Diesel Generator 5KW
Price:
Negotiable
MOQ:
1 Set
Delivery Time:
7-15 work days
Brand:
HUAN NENG
Product Description
Features:
(1) The comprehensive cost of construction and power generation of diesel generator sets is low
(2) The supporting equipment is compact in structure and flexible in installation location (water cooling is only 1/10 of the 34~82L/KW·H steam turbine)
Technical parameters:
| Model No. | KN7000-J | KN8000-J | KN9000-J | KN10000-J | |
| Engine | Model | 186F | 188F | 192F | 198F |
| Type | Vertical single cylinder, 4-stroke, air-cooled, direct injection | ||||
| Bore x Stroke | 86x72mm | 88x75mm | 92x75mm | 98x84mm | |
| Displacement | 410cc | 456cc | 499cc | 633cc | |
| Ignition system | Compression ignition | ||||
| Starting system | Electric | ||||
| Fuel loss rate | ≤281g/kw.h | ≤295g/kw.h | ≤310g/kw.h | ≤310g/kw.h | |
| Fuel type | Diesel: 0(summer)-10(winter)-35(severe cold) | ||||
| Oil capacity | 1.3 liters | 1.5 liters | 1.5 liters | 1.65 liters | |
| Generator | Rated voltage | 230V/400V | |||
| Rated frequency | 50Hz | ||||
| Max current | 23.9A | 28.2A | 32.6A | 39.1A | |
| Rated output power | 5.0KW | 6.0KW | 7.0KW | 8.0KW | |
| Max.output power | 5.5KW | 6.5KW | 7.5KW | 9.0KW | |
| Phase | Single/Three | ||||
| Power factor | 1.0/0.8 cos | ||||
| Insulation class | F grade | ||||
| Excitation way | AVR voltage automatic adjustment | ||||
| Accessory configuration | Control panel | Digital display table | |||
| Fuel indicator | Yes | ||||
| Oil alarm | Yes | ||||
| Battery capacity | 12V-32AH Maintenance-free battery | 12V-36AH Maintenance-free battery | |||
| Castor accessory | Standard | ||||
| Fuel capacity | 20 liters | 20 liters | 20 liters | 20 liters | |
| Others | Weight | 158kg | 160kg | 165kg | 216kg |
| Continous working time | 8h | ||||
| Size (L*W*H) |
105*61*80
|
102*67*93 | |||
| Packing | Standard carton | ||||
| Noise | 75 dBA/7m | 65 dBA/7m | |||
| Model No. | KN13000-J | KN18000-J | KN20000-J | |
| Engine | Model | EV80/292 | 2V98 | 2V98 |
| Type | V-type twin/in-line twin cylinder, 4-stroke, air-cooled, direct injection | |||
| Bore x Stroke |
86x72mm/ 92x75mm |
98x88mm | 98x88mm | |
| Displacement | 840cc/997cc | 1326cc | 1326cc | |
| Ignition system | Compression ignition | |||
| Starting system | Electric | |||
| Fuel loss rate | ≤270g/kw.h | ≤250g/kw.h | ≤250g/kw.h | |
| Fuel type | Diesel: 0(summer)-10(winter)-35(severe cold) | |||
| Oil capacity | 1.7/2.6 liters | 3.2 liters | 3.2 liters | |
| Generator | Rated voltage | 230V/400V | ||
| Rated frequency | 50Hz | |||
| Rated output power | 10KW | 15KW | 16KW | |
| Max current | 47.8A | 65.2A | 69.5A | |
| Max.output power | 11KW | 16KW | 18KW | |
| Phase | Single/Three | |||
| Insulation class | F grade | |||
| Power factor | 1.0/0.8 cos | |||
| Excitation way | AVR voltage automatic adjustment | |||
| Accessory configuration | Control panel | Digital display table | ||
| Fuel indicator | Yes | |||
| Oil protector | Yes | |||
| Battery capacity | 12V-36AH Maintenance-free battery | 12V-45AH Maintenance-free battery | ||
| Castor accessory | Standard | |||
| Fuel capacity | 25 liters | 30 liters | ||
| Others | Weight | 240kg | 330kg | 340kg |
| Continous working time | 8h | |||
|
Generator size (L*W*H)(cm) |
116*66*90 |
130*80*103
|
||
| Packing | Standard carton | |||
| Noise | 70 dBA/7m | 78 dBA/7m | ||

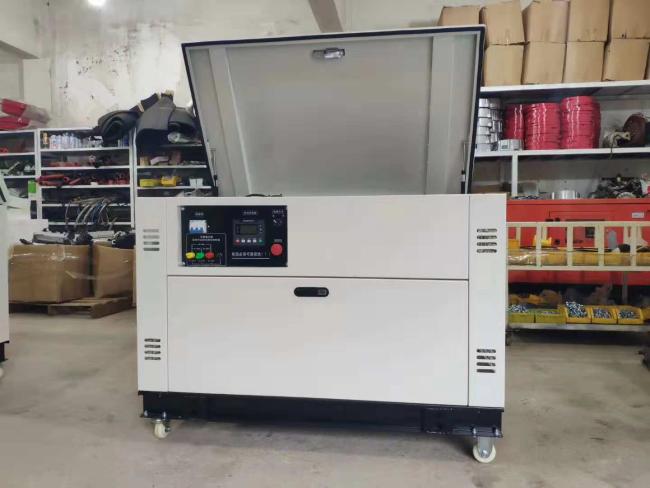

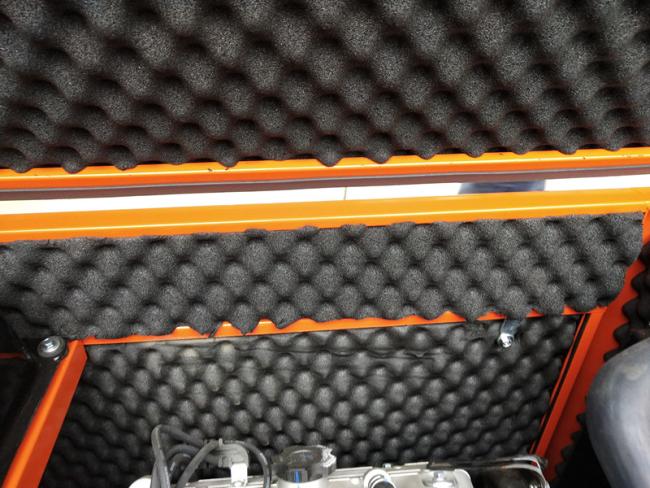

Product pictures:
