High Efficiency Combustion System Silent Diesel Generator

Application:

Diesel generator sets/low-noise diesel generator sets comply with relevant national standards such as GB2820-90. Low-noise diesel generator sets have low-noise workstations, low-noise automatic generator sets, low-noise automotive power stations, and low-noise trailer power stations. Various design types. Low-noise diesel generator sets have the advantages of stable performance, reliable operation, low emissions and low fuel consumption.

Features:

1. Low running noise

High efficiency combustion system ensures complete combustion, a large silencer dampens exhaust noise and engine sounds are contained by a double wall structure and liner absorber.

2. Advanced alternator winding

Waveform distortion is kept at a minimum level with a stable output. The winding design protects the generator from short circuit and provides a stable output while running inductive loads.

3. Low oil alarm system

Before the oil level drops to a dangerous level, the generator will stop automatically. It can only be restarted after the proper oil level is restored.

4. Application of new AVR

The automatic voltage regulator (AVR) not only can smooth the output but also provides protection against overload, avoiding expensive damage.

5. Strong power

All generators are powered with four stroke diesel engines.

Technical parameters:

Model No.		KN7000-J	KN8000-J	KN9000-J	KN10000-J
Engine	Model	186F	188F	192F	198F
	Type	Vertical single cylinder, 4-stroke, air-cooled, direct injection
	Bore x Stroke	86x72mm	88x75mm	92x75mm	98x84mm
	Displacement	410cc	456cc	499cc	633cc
	Ignition system	Compression ignition
	Starting system	Electric
	Fuel loss rate	≤281g/kw.h	≤295g/kw.h	≤310g/kw.h	≤310g/kw.h
	Fuel type	Diesel: 0(summer)-10(winter)-35(severe cold)
	Oil capacity	1.3 liters	1.5 liters	1.5 liters	1.65 liters
Generator	Rated voltage	230V/400V
	Rated frequency	50Hz
	Max current	23.9A	28.2A	32.6A	39.1A
	Rated output power	5.0KW	6.0KW	7.0KW	8.0KW
	Max.output power	5.5KW	6.5KW	7.5KW	9.0KW
	Phase	Single/Three
	Power factor	1.0/0.8 cos
	Insulation class	F grade
	Excitation way	AVR voltage automatic adjustment
Accessory configuration	Control panel	Digital display table
	Fuel indicator	Yes
	Oil alarm	Yes
	Battery capacity	12V-32AH Maintenance-free battery			12V-36AH Maintenance-free battery
	Castor accessory	Standard
	Fuel capacity	20 liters	20 liters	20 liters	20 liters
Others	Weight	158kg	160kg	165kg	216kg
	Continous working time	8h
	Size (L*W*H)	105*61*80			102*67*93
	Packing	Standard carton
	Noise	75 dBA/7m			65 dBA/7m



Model No.		KN13000-J	KN18000-J	KN20000-J
Engine	Model	EV80/292	2V98	2V98
	Type	V-type twin/in-line twin cylinder, 4-stroke, air-cooled, direct injection
	Bore x Stroke	86x72mm/ 92x75mm	98x88mm	98x88mm
	Displacement	840cc/997cc	1326cc	1326cc
	Ignition system	Compression ignition
	Starting system	Electric
	Fuel loss rate	≤270g/kw.h	≤250g/kw.h	≤250g/kw.h
	Fuel type	Diesel: 0(summer)-10(winter)-35(severe cold)
	Oil capacity	1.7/2.6 liters	3.2 liters	3.2 liters
Generator	Rated voltage	230V/400V
	Rated frequency	50Hz
	Rated output power	10KW	15KW	16KW
	Max current	47.8A	65.2A	69.5A
	Max.output power	11KW	16KW	18KW
	Phase	Single/Three
	Insulation class	F grade
	Power factor	1.0/0.8 cos
	Excitation way	AVR voltage automatic adjustment
Accessory configuration	Control panel	Digital display table
	Fuel indicator	Yes
	Oil protector	Yes
	Battery capacity	12V-36AH Maintenance-free battery	12V-45AH Maintenance-free battery
	Castor accessory	Standard
	Fuel capacity	25 liters	30 liters
Others	Weight	240kg	330kg	340kg
	Continous working time	8h
	Generator size (L*W*H)(cm)	116*66*90	130*80*103
	Packing	Standard carton
	Noise	70 dBA/7m	78 dBA/7m

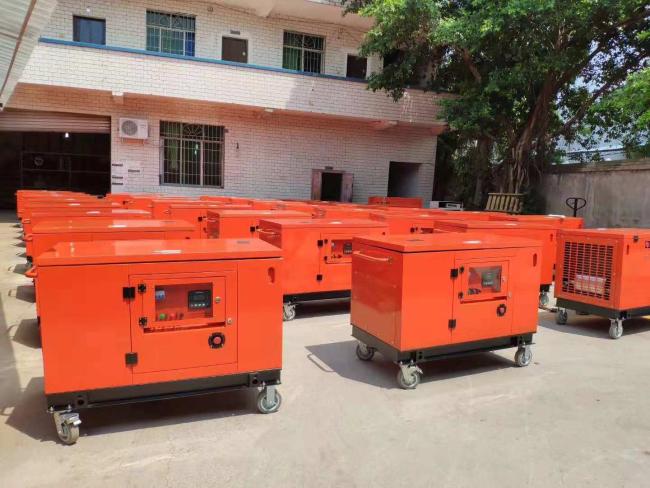

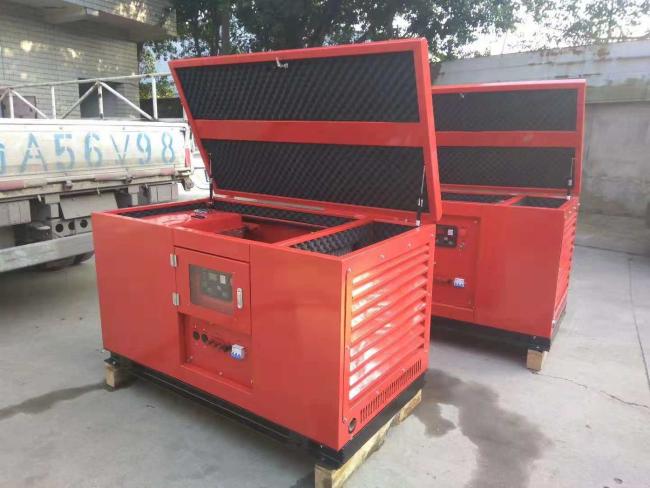

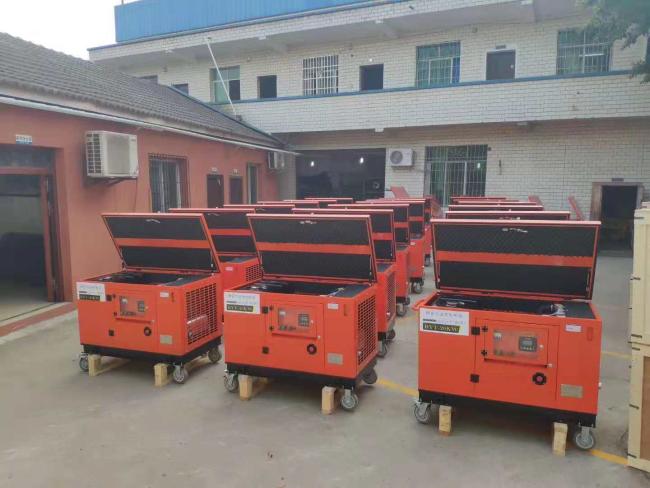

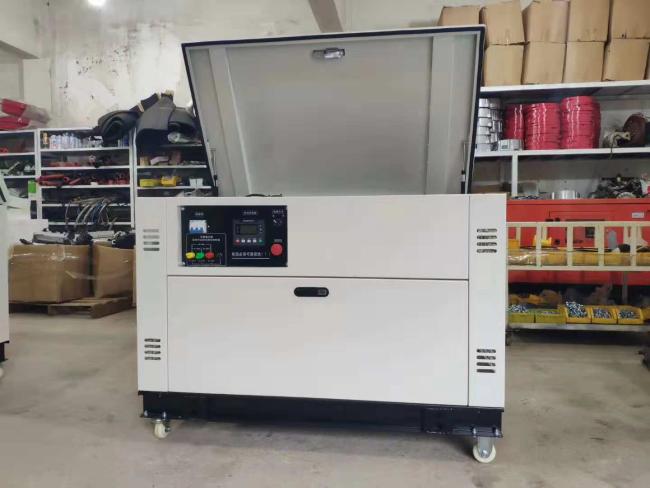

Product pictures:
