10 Inner boxes/middle box
5 plastic boxes /inner box, 4 inner boxes /master box
2000 pcs/master box
shockproof packing: package filler foam board
MEAS: 44.5*37*16.5cm
G.W: 7KGS
N.W: 6KGS

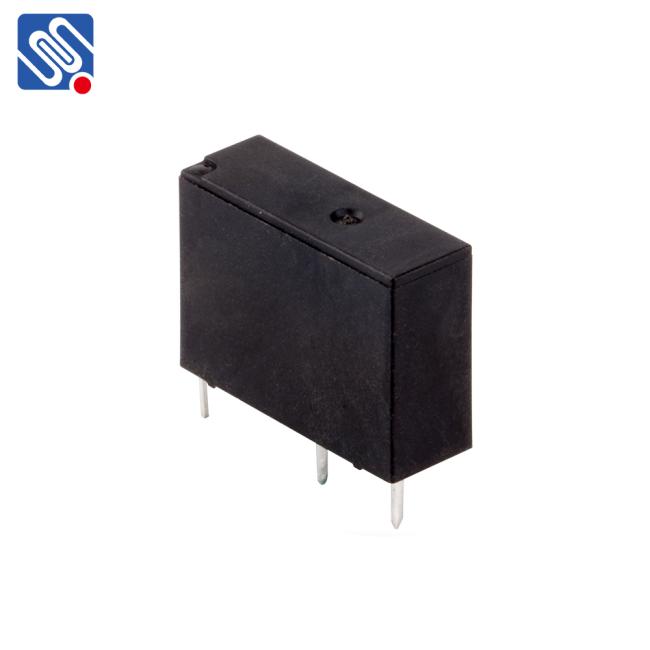

MEISHUO MPR-S-105-A miniature 5a/30vdc 250vac pcb dc 12v spdt 5 pin mini power 5v micro relay
Price:
$0.29/Pieces 1-19 Pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
MEISHUO
Product Description
Product Description
* Model: MPR-S-112-A / MPR-S-105-A/ MPR-S-124-A
* 5A contact switching capability
* Height not exceed 7.2mm
* High sensitive coil power only 200mW

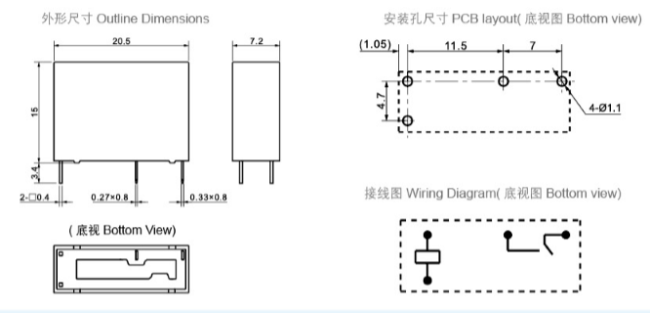

* Outline dimensions: 20.5*7.2*15.0 mm
Product Name | MPR | Style | Subminiature Intermediated Power relay |
Brand | Meishuo. | Colour | Black |
Contact Arrangement | 1A .Normally open | Place of Product | Zhejiang,China |
Contact Material | Silver Alloy.. | Terminal Form | PCB |
Size | Relay: 20.5*7.2*15.0 mm | Unit Weight | 8g |
MEISHUO MPR-S-105-A miniature 5a/30vdc 250vac pcb dc 12v spdt 5 pin mini power 5v micro relay
Certificate
Approvals | UL | TUV | CQC | ||
Certificate Number | E313266 | R50217035 | CQC11002059553 | ||
Rating | 5A 250VAC /30VDC | 3A 250VAC/ 30VDC | 5A 250VAC/30VDC | ||
1/10HP 277VAC | 5A 250VAC/30VDC | 3A 250VAC/30VDC | |||
Packing&Shipping
100 PCS/ Inner box
Related Products
Company Introduction
The History of Meishuo Company
* In 2007 Meishuo Electric Co., Ltd. was establishing and started
* In 2008, Meishuo Electric cameto the OEM agreement with Hella Group
* In 2009, Meishuo Electric cooperated with Midea Group
* In 2010 , Meishuo Electric cooperated with Steelmate, a leading enterprise of vehicle security systems in China
* In 2013, Meishuo Electric enlarged its scale and expanded its manufactring bases
Our Services & Strength
PRE-SALES SERVICE
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
AFTER-SALES SERVICE
*If you have any problems, we have a group of professional engineers to assist you in any time.
Why Choose Us
Our customers come from all over the world
1.Advanced Manufacturing Technology
2.Authoritative certification
3.Quality assurance
-Free samples
-excellent response time
-Quick sample support
-Aggressive lead times
-Approved with leading global OEMs
-SMART factory
-High capacity ,more than 250 million pcs per year
-Customisation capabilities
-Quick sample support
-Aggressive lead times
-Approved with leading global OEMs
-SMART factory
-High capacity ,more than 250 million pcs per year
-Customisation capabilities
FAQ
Q1. Can I have sample for relay?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about lead time?
A:Sample needs 3-9 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for relay order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long dose it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for relay?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it ok to print my logo on relay?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about lead time?
A:Sample needs 3-9 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for relay order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long dose it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for relay?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it ok to print my logo on relay?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
