Meishuo MCD 5A 250VAC cube 4pin 12v micro relay pcb subminiature high power sensitive relay 5v with socket

Price Negotiable

Price: $0.65/Pieces 1-4999 Pieces

MOQ: Negotiable

Delivery Time: Negotiable

Brand: MEISHUO

Product Description

Meishuo MCD 5A 250VAC cube 4pin 12v micro pcb subminiature pcb power high sensitive relay

* This series is MCD, corresponding to Hongfa product is HF49FD

* The external size is 20*5*12.5 mm.

* Mainly used in home appliances, smart home, wearable devices, Internet of Things (IoT), 3C digital, new energy and other fields.

* Ultra-thin universal relay;
* A group of normally open contact forms;
* 5A contact switching ability;
* IP/OP withstand voltage 3kV.

Naming rules

*Product advantages

(1) Ultra-thin appearance and ultra-small volume, suitable for electronic equipment with small space and low height;
(2) The power of the product is only 0.12w with low temperature appreciation and more energy saving.

* Key technical targets achieved by MAE products

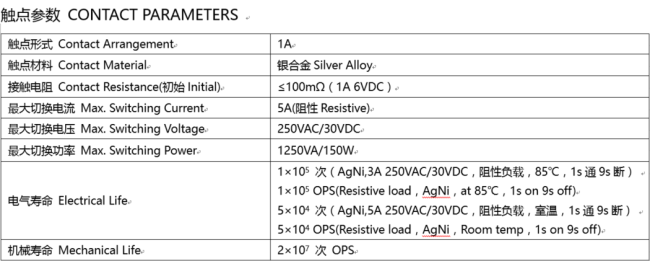

1) Contact load: 5A/250VAC
2) Withstand voltage: 3000VAC between the coil and the contact;
3) Mechanical life: 1 million times;
4) Electrical life: more than 100,000 times

Detailed Images

* 5A Switching Capability

*1 form A configuration

* Applicable to Home appliances, smart home, wearable devices, Internet of Things (IoT), 3C digital, new energy

* Outline Dimensions: 20*5*12.5mm

* Contact Arrangement: 1A

* Ambient Temperature: -40℃~+85℃

*Terminal Form: PCB

* Coil Power: 0.12W ; 0.18W

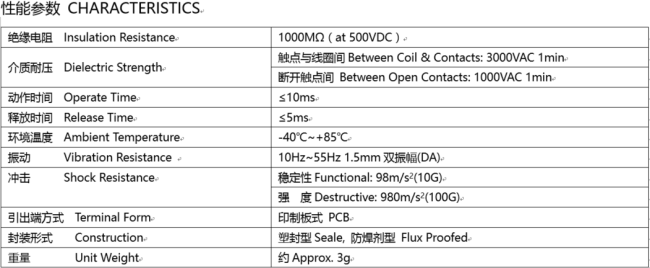

Information Sheet

Related Products

Company Introduction

The History of Meishuo Company

* In 2007 Meishuo Electric Co., Ltd. was establishing and started
* In 2008, Meishuo Electric cameto the OEM agreement with Hella Group
* In 2009, Meishuo Electric cooperated with Midea Group
* In 2010 , Meishuo Electric cooperated with Steelmate, a leading enterprise of vehicle security systems in China
* In 2013, Meishuo Electric enlarged its scale and expanded its manufactring bases

We have strict production processes and fully automated production lines to ensure qualified products

PRE-SALES SERVICE

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

AFTER-SALES SERVICE

*If you have any problems, we have a group of professional engineers to assist you in any time.

Our customer from all over the world

FAQ

Q1.Can I have sample oder for relay?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about lead time?
A:Sample needs 3-9 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for relay order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long dose it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How do you proceed order for relay ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it ok to print my logo on relay product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
