●16A switching capability
●5KV dielectric strength between coil and contacts
●Outline dimension 29.0X12.7X15.5mm
Meishuo MPE-S-124-A 24v relay 12V 6 pin new 16a pcb miniature power relay
Price:
$0.60/Pieces 1-499 Pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
MEISHUO
Product Description
MEISHUO
Meishuo MPE-S-124-A 24v relay 12V 6 pin new hot selling16a pcb miniature power relay for
washing machine spare parts
We are manufacture!
-Our control standard: Same as Omron!
-Our capacity:150,000,000 pcs per year!
-Our Quality: Zero customer complaint within 3 Years!
Product Information
Relay Features:
Specification:
Characteristics: | |||||
Contact Arrangement | 1A | ||||
Contact Material | Silver Alloy | ||||
Contact Resistance(Initial) | ≤100mΩ (1A 6VDC) | ||||
Rated Load(Res.) | 16A 250VAC | ||||
Max.Switching Current | 16A | ||||
Max.Switching Voltage | 250VAC | ||||
Max.Switching Power | 4000VA | ||||
Electrical life | 1X105 OPS | ||||
Mechanical Life | 1X106 OPS | ||||
Insulation Resistance | 1000MΩ (at 500VDC) | ||||
Dielectric Strength | Between Coil & Contacts: 5000VAC 1min | ||||
Between Open Contacts: 1000VAC 1min | |||||
Operate Time | ≤15ms | ||||
Release Time | ≤5ms | ||||
Ambient Temperature | -40°C~+85°C | ||||
Vibration | 10Hz~55Hz 1.5mm (DA) | ||||
Functional: 98m/s2(10G) | |||||
Destructive: 980m/s2(100G) | |||||
Terminal Form | PCB | ||||
Construction | Sealed, Flux Proofed | ||||
Unit Weight | Approx.13.5g | ||||
Certifications | UL,TUV,CQC | ||||
Drawing:
Related products
16A Relay series
Advantages
R&D System
Standard R & D process
Professional development process
Fast customization R & D
Raw Material System
Standard test
Material performance specification
Supplier control

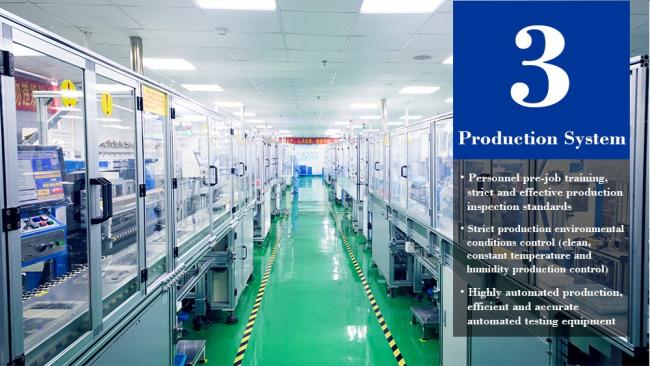

Production System
Personnel pre-job training, strict and effective production inspection standards
Strict production environmental conditions control (clean, constant temperature and humidity production control)
Highly automated production, efficient and accurate automated testing equipment
1.Advanced Manufacturing Technology
2.Authoritative certification
3.Quality assurance
Company information
Meishuo Factory:
The History of Meishuo Company
* In 2007 Meishuo Electric Co., Ltd. was establishing and started
* In 2008, Meishuo Electric cameto the OEM agreement with Hella Group
* In 2009, Meishuo Electric cooperated with Midea Group
* In 2010 , Meishuo Electric cooperated with Steelmate, a leading enterprise of vehicle security systems in China
* In 2013, Meishuo Electric enlarged its scale and expanded its manufactring bases
* In 2009, Meishuo Electric cooperated with Midea Group
* In 2010 , Meishuo Electric cooperated with Steelmate, a leading enterprise of vehicle security systems in China
* In 2013, Meishuo Electric enlarged its scale and expanded its manufactring bases
OUR SERVICES & STRENGTH
PRE-SALES SERVICE
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
AFTER-SALES SERVICE
*If you have any problems, we have a group of professional engineers to assist you in any time.
Certificates
Meishuo Certificates:
Approvals | UL | TUV | CQC | ||
Certificate Number | E358149 | R50302777 | CQC15002122983 | ||
Rating | 16A 250VAC 277VAC | 16A 250VAC | 16A 250VAC | ||
1HP 1/2HP 120VAC | 16A 277VAC | ||||
