Meishuo MPJ-S-112-A-2 JQX-14F 2Z 16a/250vac 12v power relay Mini PCB Relay
Meishuo MPJ JQX-14F 2Z 16a/250vac 12v power relay Mini PCB Relay
| F1 | Relay feature: |
|---|
-16A switching capability
-Low height: 20.6mm
-5KV dielectric strength(between coil and contacts)
-Sensitive type coil power only 0.54w
-1 pole & 2 poles
-Kinds socket available
-(RoHS compliant)
-Outline dimensions: 29.0*12.6*20.6mm
JQX-14F 2Z Mini PCB Relay
| F2 | Specification: |
|---|
| characteristics | ||||||
| Contact Form | 1A 1C 2A 2C | |||||
| Contact Resistance | 100mΩ(1A 6VDC) | |||||
| Contact Rating | 16A/8A 250VAC/30VDC 12A 120VAC/30VDC | |||||
| Contact material | AgSnO2, AgNi, AgCdO | |||||
| Max.Switching Current | 16A | |||||
| Max.Switching voltage | 250VAC/30VDC | |||||
| Electrical life | 100000 ops | |||||
| Mechanical Life | 1000000 ops | |||||
| Initial insulation resistance | 1000MΩ | |||||
| Dielectric strength | 5000VAC/1000VAC | |||||
| Operate Time | ≤15ms | |||||
| Release Time | ≤5ms | |||||
| Ambient temperature | -40°C~+70°C | |||||
| Termination | PCB | |||||
| Construction | Sealed | |||||
| Coil power | 0.4w | |||||
| Unit Weight | 13g | |||||

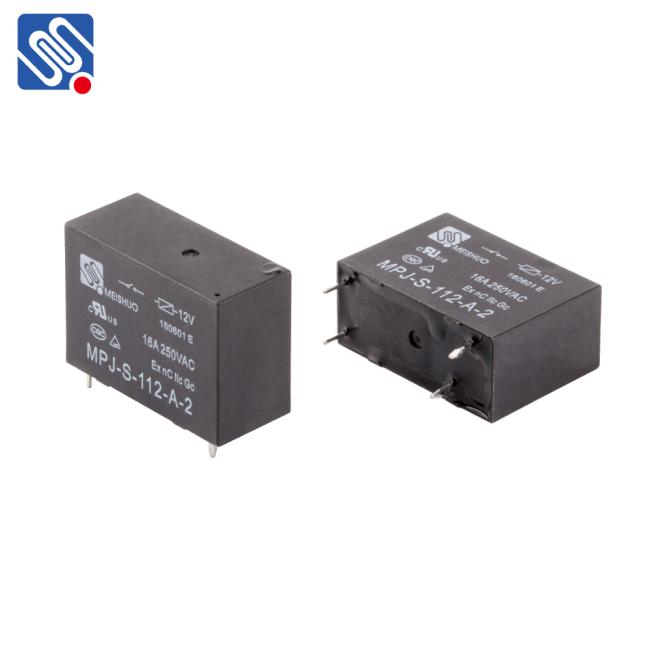

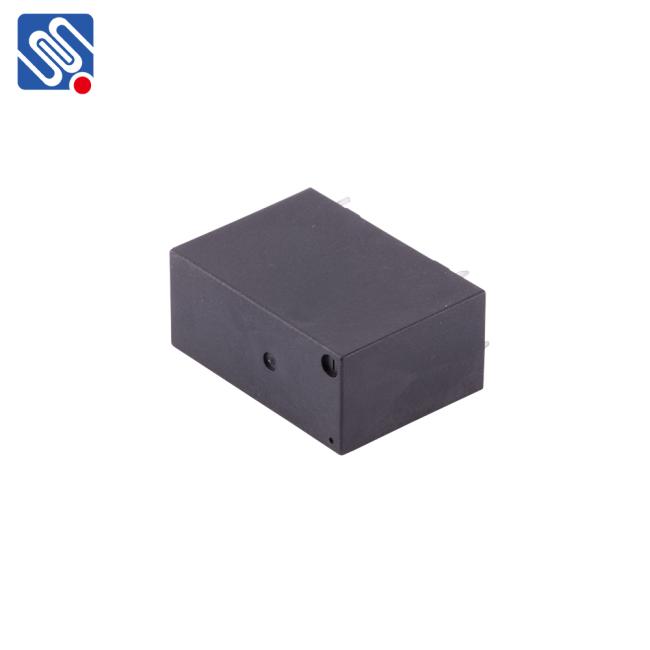

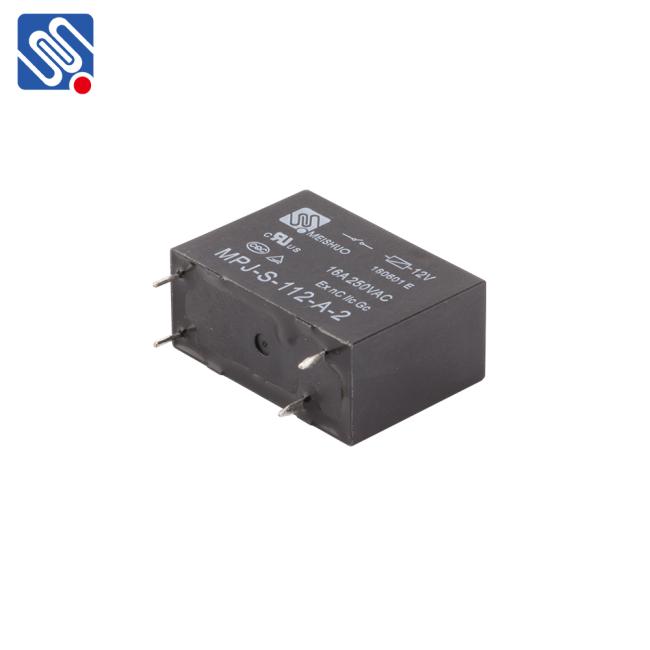

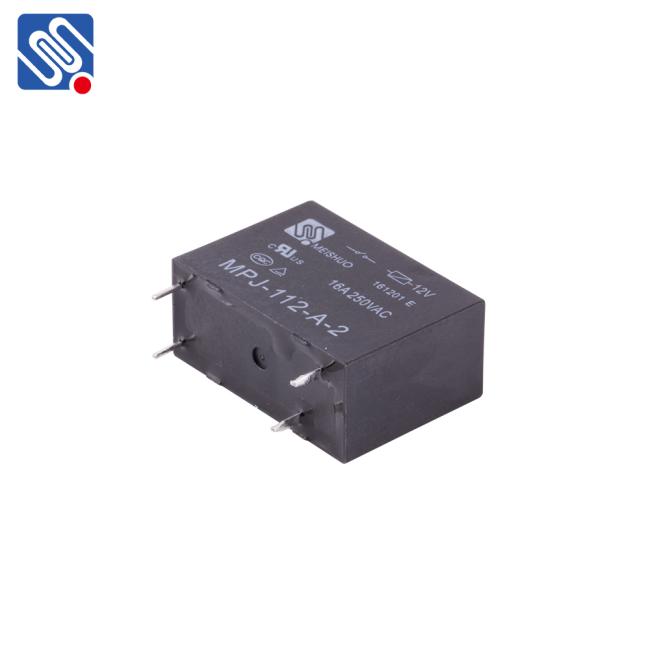

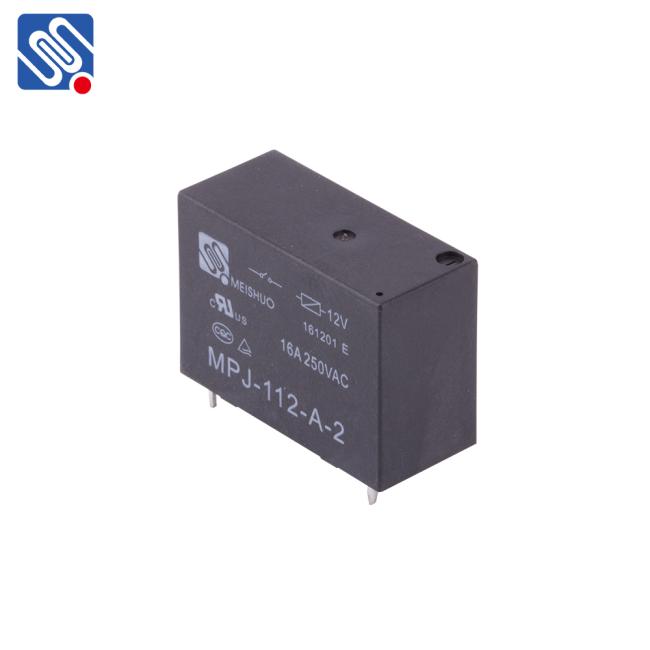

| F3 | Relay Photo: |
|---|

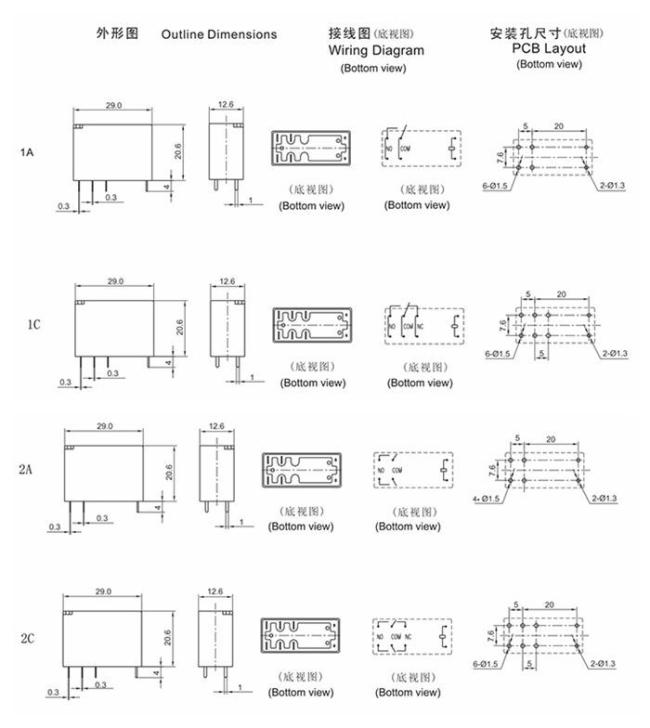

| F4 | Drawing: |
|---|
| F5 | Package: |
|---|
-20pcs/plastic tube
-500pcs/inner box
-1000pcs/carton
