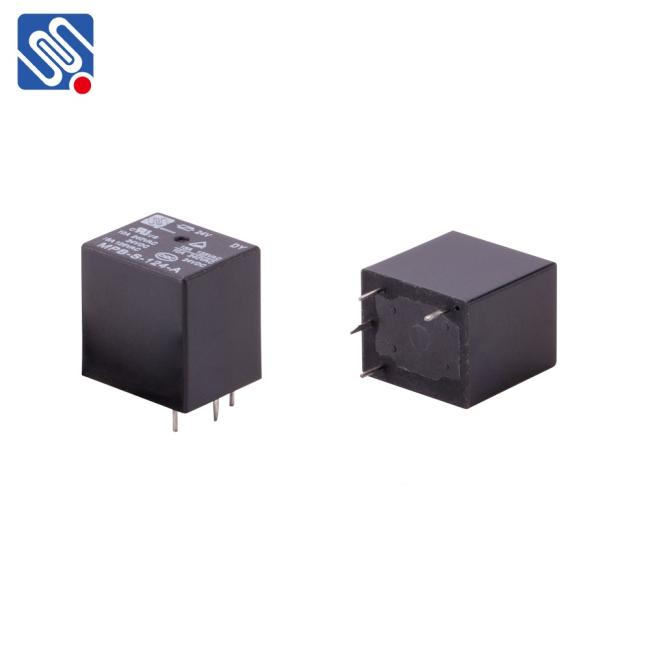

Name: MPB-S-124- A
Brand: Meishuo
Original: China
UL: 10A 240VAC/24VDC ; 15A 125VAC
TUV: 10A 240VAC/24VDC
CQC: 10A 240VAC /24VDC ; 15A 125VAC
Electromagnetic Miniature Electrical Power Relay 12v 4pin Hf3ff
Price:
$0.18/Pieces 10000-19999 Pieces
MOQ:
10000 Pieces
Delivery Time:
Negotiable
Brand:
MEISHUO
Product Description
Product Description

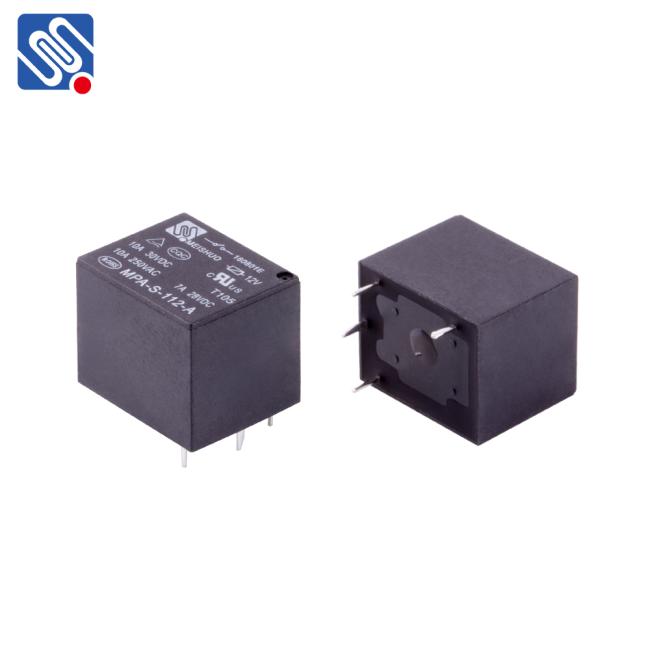

---- MPA
* 15A Switching capability
* 1 form A , 1form B , 1 form C configuration
* Subminiature, standard PCB Layout
* Outline dimensions: 18.7*15.0*15.2mm
|
Specifications for relay
|
|
|
|
|||
|
Contact Parameters
|
Rated Road
|
10A 250VAC/30VDC
|
|
|||
|
|
Max. Switching Current
|
10A
|
|
|||
|
|
Max. Switching Voltage
|
250VAC/30VDC
|
|
|||
|
Function Parameters
|
Operate time
|
<10ms
|
|
|||
|
|
Release Time
|
<5ms
|
|
|||
|
|
Vibration
|
10Hz~55Hz 1.5mm ( D A )
|
|
|||
|
Certificate / Rating
|
UL
|
10A 250VAC/ 7A 28VDC
15A 125VAC
15A 240VAC
5A 250VAC
TV-5
|
|
|||
|
|
TUV
|
10A 250VAC 30VDC
5A 250VAC
|
|
|||
|
|
CQC
|
10A 250VAC/30VDC
5A 250VAC/30VDC
15A 125VAC
|
|
|||

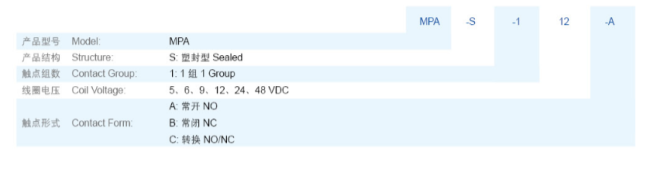

Ordering Information

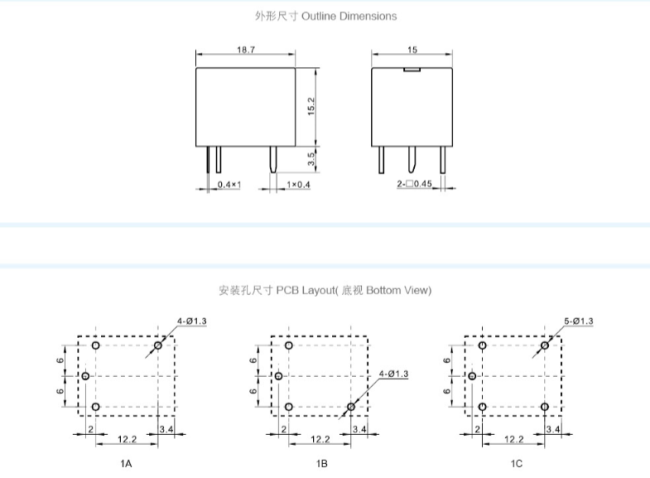

Outline Dimensions
Certifications
Application

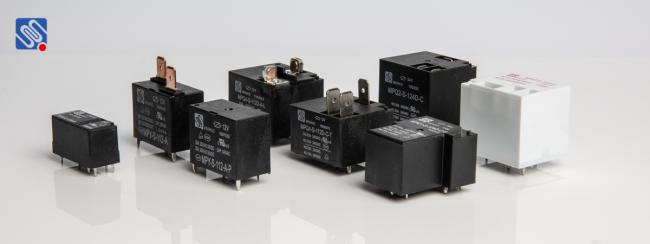

Related products
Hot Selling Type1:
Hot selling Type 2:

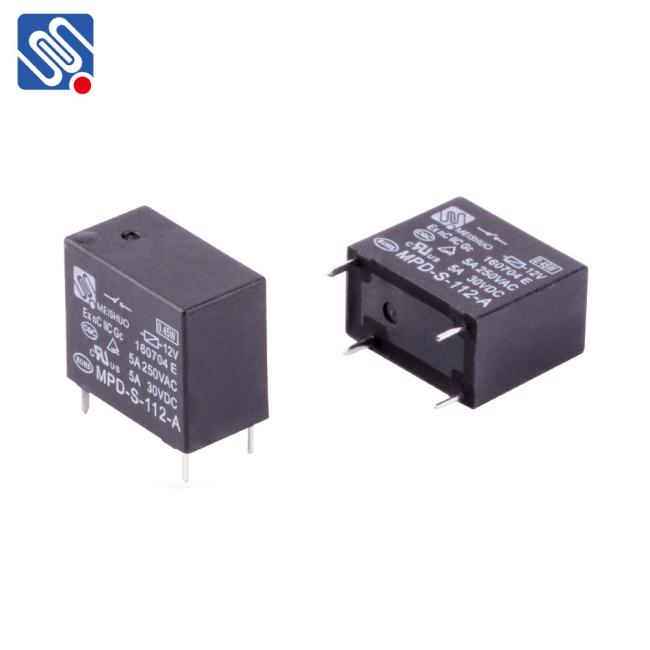

Name: MPD-S-112-A
Brand: Meishuo
Original: China
UL: 10A 250VAC/30VDC ; 5A 250V/30VDC; 10A 125VAC/30VDC
TUV: 10A 250VAC/30VDC; 5A 250VAC/30VDC
CQC: 10A 250VAC 30VDC; 5A 250VAC /30VAC
Hot selling Type 3:

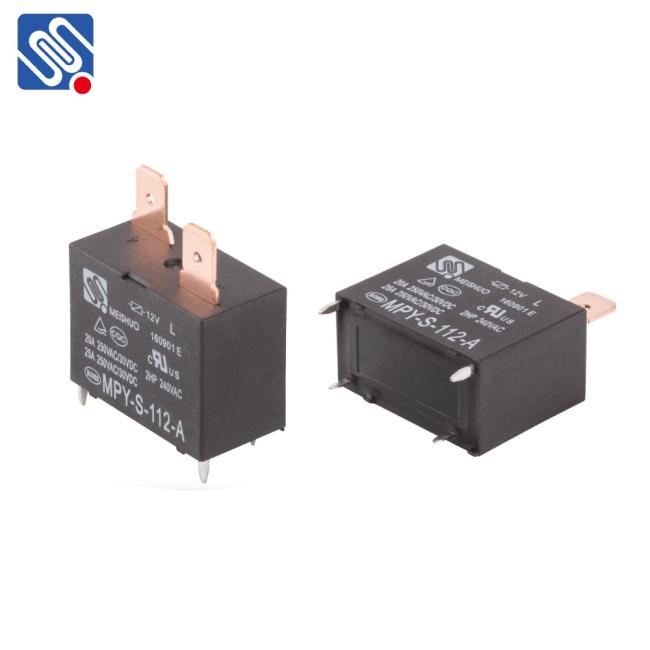

Name: MPY-S-112-A
Brand: Meishuo
Original: China
UL: 20A 250VAC/30VDC ;
2HP 277VAC
TUV: 25A 250VAC/30VDC;
20A 250VAC/30VDC
CQC: 25A 250VAC 30VDC;
20A 250VAC /30VAC;
16A 250VAC/30VDC
