Certifications: UL TUV CQC ROHS REACH

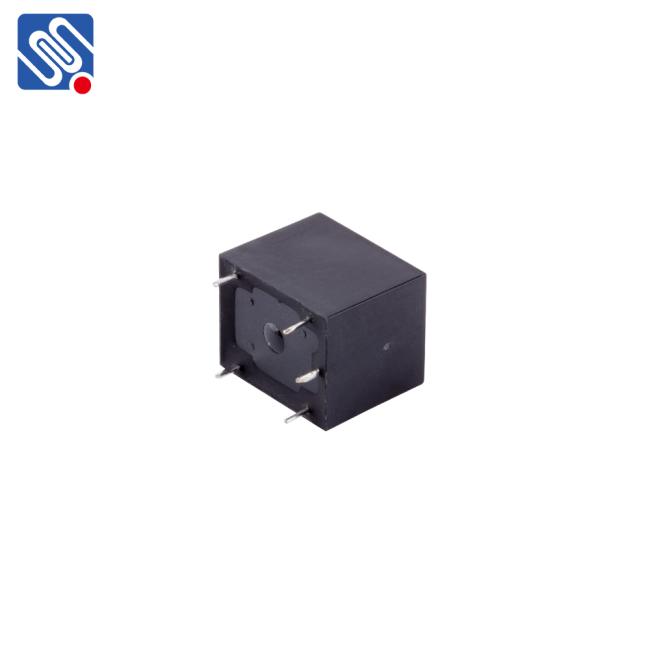

4 Pin Pcb Relay 5V / 6V / 9V / 12V / 24V 10A , Miniature Circuit Board Relays
Price:
$0.22/Pieces 500-999 Pieces
MOQ:
500 Pieces
Delivery Time:
Negotiable
Brand:
MEISHUO
Product Description
Features:
* 15A Switching Capability
* 1 form A, 1 form B, 1 form C configuration
* Subminiature , standard PCB Layout

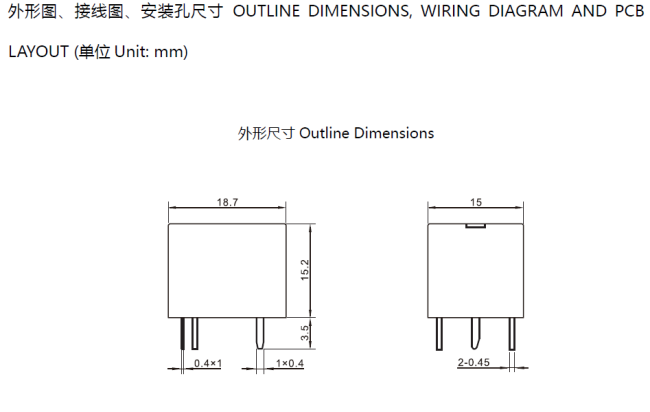

* Outline Dimensions: 18.7*15.0*15.2mm
* Contact Arrangement: 1A 1B 1C
* Rated Load: 10A 250VAC/30VDC
* Terminal Form: PCB
* Coil Power: 0.36W , 0.45W
* 1 form A, 1 form B, 1 form C configuration
* Subminiature , standard PCB Layout
* Outline Dimensions: 18.7*15.0*15.2mm
* Contact Arrangement: 1A 1B 1C
* Rated Load: 10A 250VAC/30VDC
* Terminal Form: PCB
* Coil Power: 0.36W , 0.45W
|

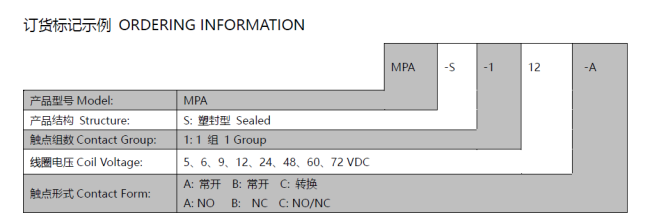

Product Name
|
MPA-S-124-C
|
Style
|
Subminiature Intermediate Power Relay
|
|
Brand
|
MEISHUO..
|
Colour
|
Black
|
|
Contact material
|
Silver Alloy
|
Place of Product
|
Zhejiang Province,China
|
|
Coil Voltage
|
5 6 9 12 24 48VDC
|
Modes of packing
|
Packed in one carton
|
|
Size
|
L*W*H : 18.7*15.0*15.2 mm
|
After sale service
|
1 year
|

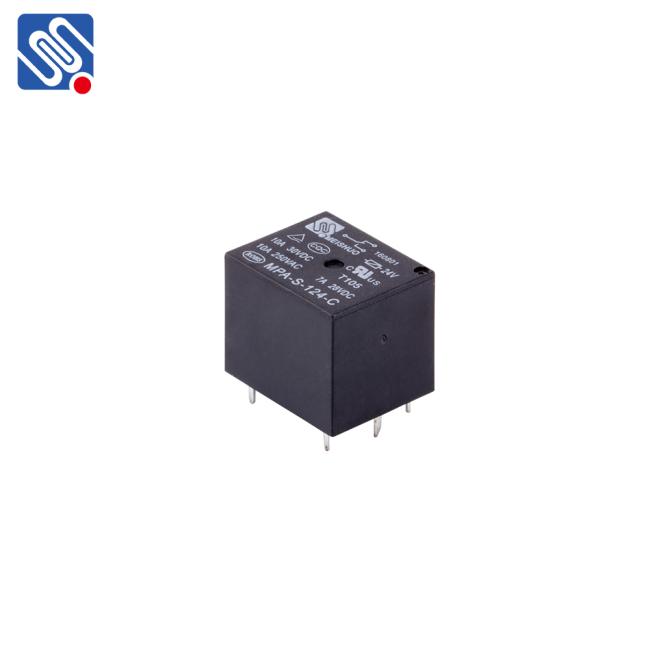

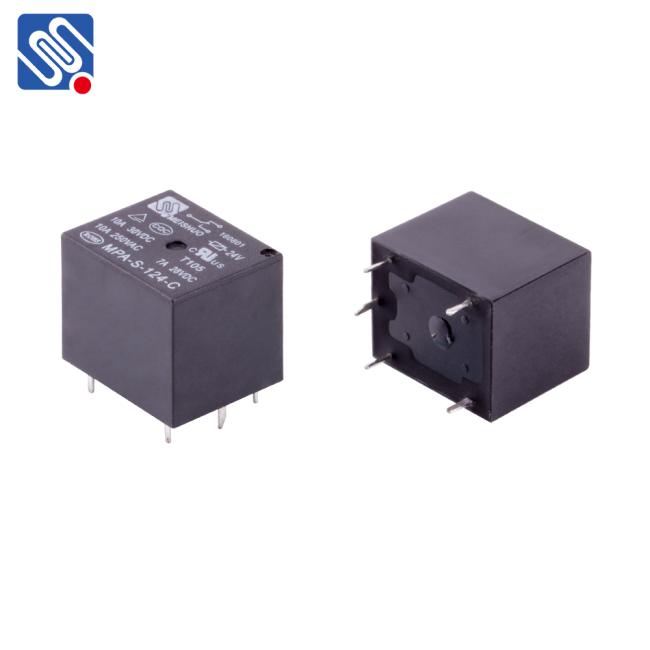

Meishuo MPA-S-124-C 5V / 6V / 9V / 12V / 24V 10A miniature PCB JQC-3F DC12V 4 Pin Electric Relay

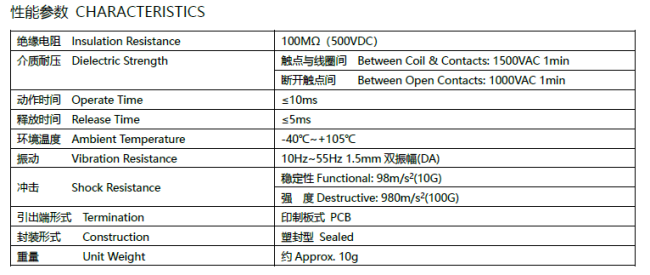

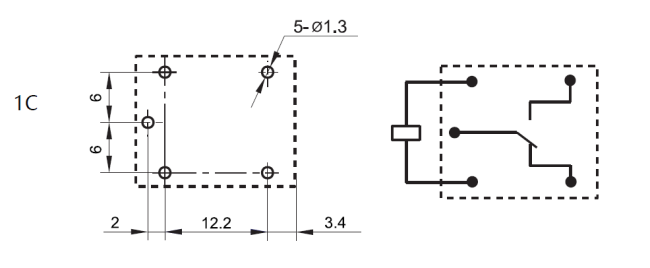

Detailed Images

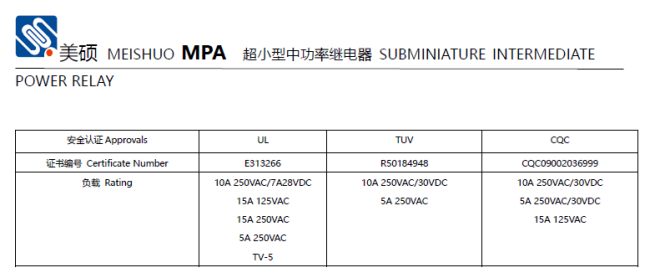

Certificate
Related Products
Packing&Shipping
* 100pcs/inner box
* 10 inner boxes/middle box, 2 middle boxes/master box
* 2000 pcs/master box
* Shockproof packing: packaging filler foam board
* Meas: 42*28.5*36.5 cm
* G.W.:18.5 KGSN
* N.W.: 17.5 KGS
* 2000 pcs/master box
* Shockproof packing: packaging filler foam board
* Meas: 42*28.5*36.5 cm
* G.W.:18.5 KGSN
* N.W.: 17.5 KGS
Company Introduction
The History of Meishuo Company
* In 2007 Meishuo Electric Co., Ltd. was establishing and started
* In 2008, Meishuo Electric cameto the OEM agreement with Hella Group
* In 2009, Meishuo Electric cooperated with Midea Group
* In 2010 , Meishuo Electric cooperated with Steelmate, a leading enterprise of vehicle security systems in China
* In 2013, Meishuo Electric enlarged its scale and expanded its manufactring bases
PRE-SALES SERVICE
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
AFTER-SALES SERVICE
*If you have any problems, we have a group of professional engineers to assist you in any time.
FAQ
Q1.Can I have sample oder for relay?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about lead time?
A:Sample needs 3-9 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for relay order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long dose it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How do you proceed order for relay ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it ok to print my logo on relay product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about lead time?
A:Sample needs 3-9 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for relay order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long dose it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How do you proceed order for relay ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it ok to print my logo on relay product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
