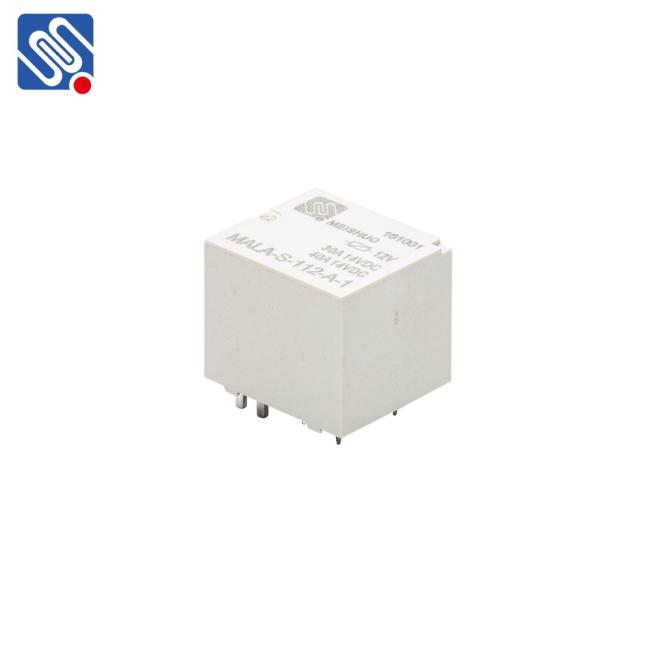

Name: MALA-S-112-A-1
Contact arrangement:1A Normally open
40A switching capability
Outline Dimensions: 18.3*16.0*15.9mm
Max. switching Voltage: 16VDC
Miniature Power Electrical Power Relay 12v 4pin Relay 12v 30a 40a 24v
Price:
$0.43 - $0.55/Pieces
MOQ:
2000 Pieces
Delivery Time:
Negotiable
Brand:
MEISHUO
Product Description
Product Description

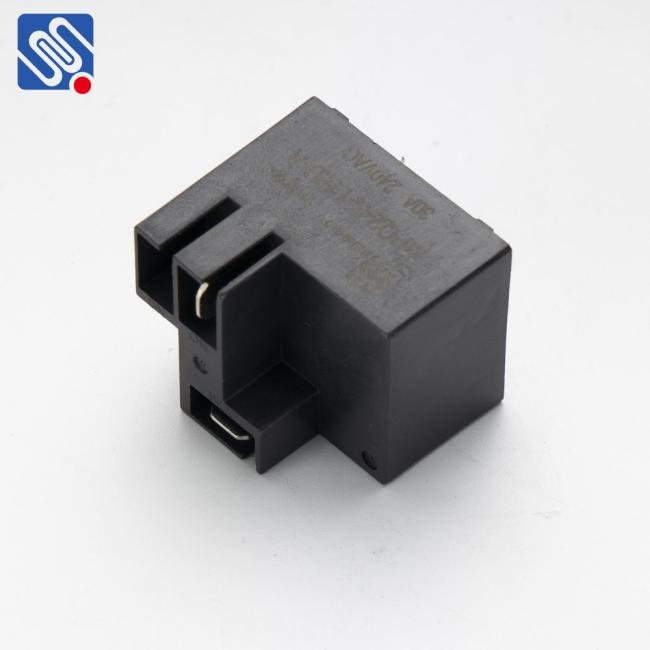

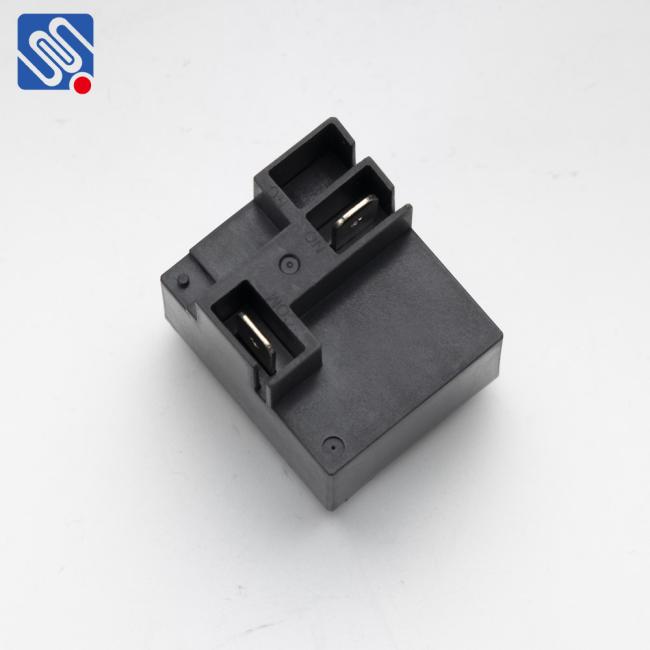

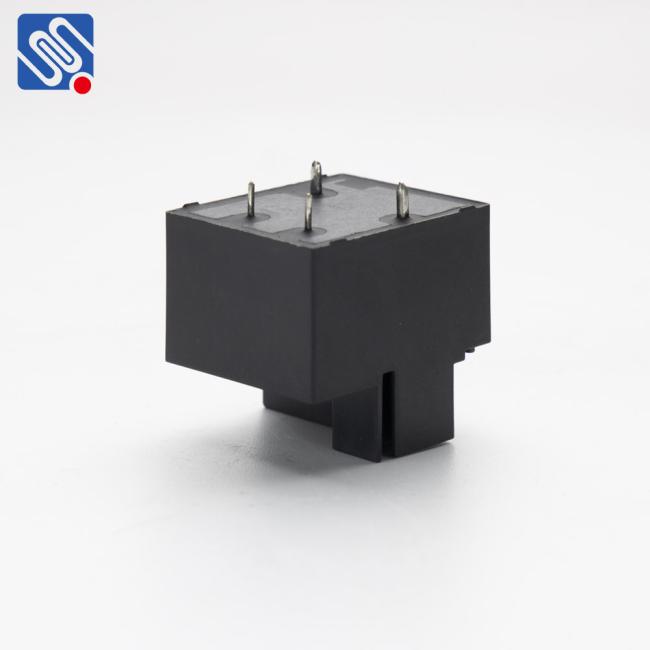

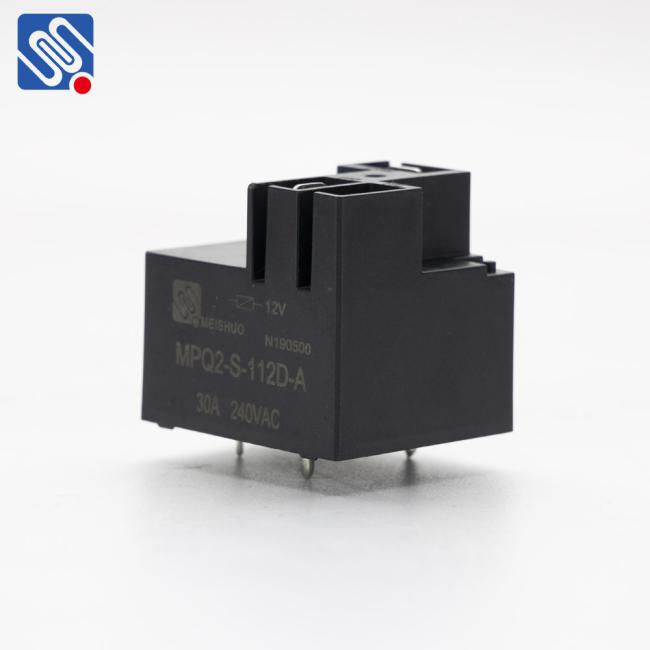

-----MPQ2-S-112D-A (0.9W,30A)
* 30A Switching capability
* Class F insulation available
* 1 form A 1 form B, 1 form C configuration
* Subminiature , standard PCB Layout & QC layout
* Sealed & flux proofed available

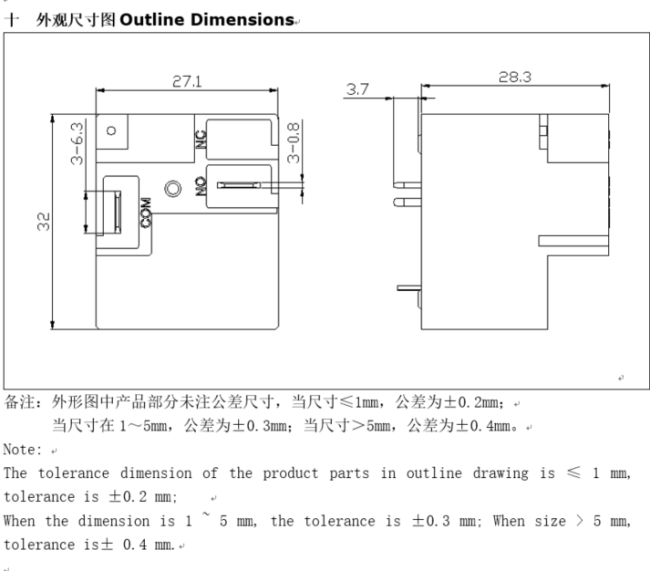

* Outline dimensions 32.0*27.1*28.3mm
|
Product Type:
|
MPQ2-S-112D-A miniature High Power Relay
|
|
Contact Material:
|
Sliver Alloy
|
|
Rated Load
|
NO: 30A 240VAC /30VDC NC: 20A 240VAC /30VDC
|
|
Contact arrangement
|
1A 1B 1C
|
|
Termianl form
|
PCB & QC
|
|
Construction
|
Sealed
|
|
Color:
|
Black
|
|
Unit Weight
|
36g
|
Related Products
Latching relay :
Latching relay:

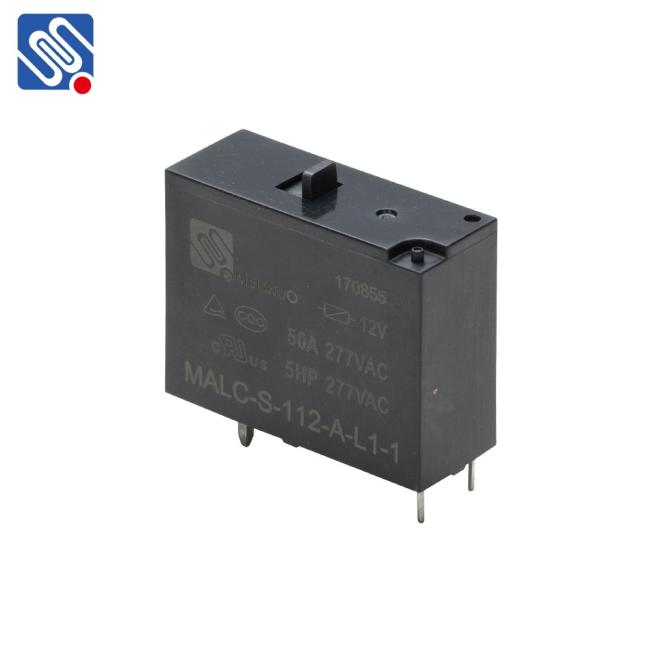

Name: MALC-S-112-A-L1-1
Contact arrangement: 1A 1B 1C
50A switching capability
Outline Dimensions: 39*15.0*29.3mm
Max. switching Voltage: 440VAC
Terminal Form: PCB
Latching relay:

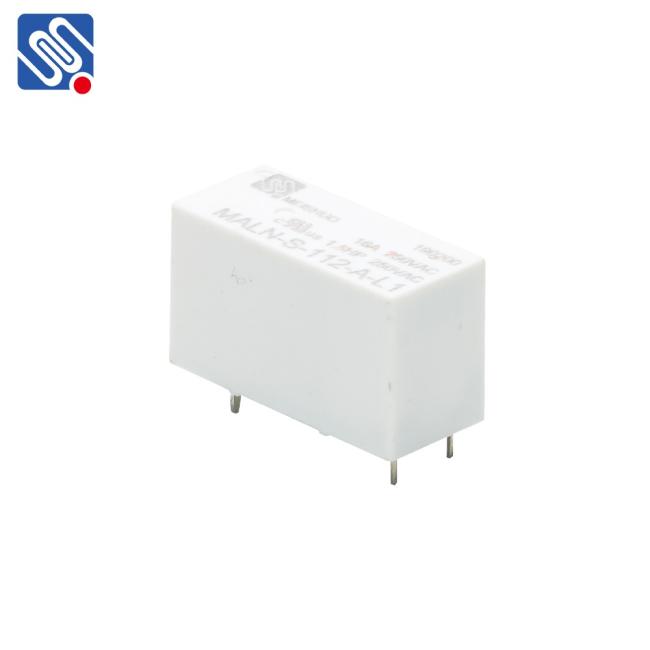

Name: MALN-S-112-A-L1
Contact arrangement: 1A 1B 1C
16A switching capability
Outline Dimensions: 29*12.8*16.8 mm
Max. switching Voltage: 250VAC
Terminal Form: PCB

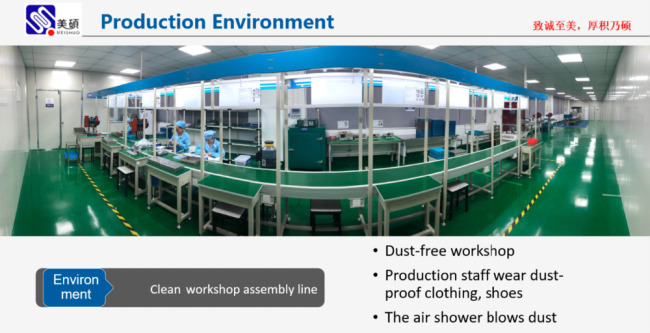

Assembly

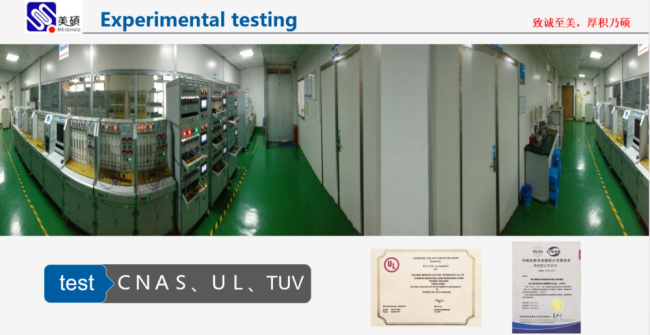

Certifications
